/Products/Pumps/Ashland Pump/Sewage Pumps/SWHD150 1.5HP Dual Seal/SWHD150M4-20 Ashland 1.5HP Dual Seal Sewage Pump, 460VAC 3 Phase
Click Image to Expand

Product ID: SWHD150M4-20

SWHD150M4-20 Ashland 1.5HP Dual Seal Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWHD150M4-20

Selected accessories will also be added to cart
$1,788.15 / Each
Quantity:
2" NPT Flanged Discharge. Cast Iron Construction, 3450RPM

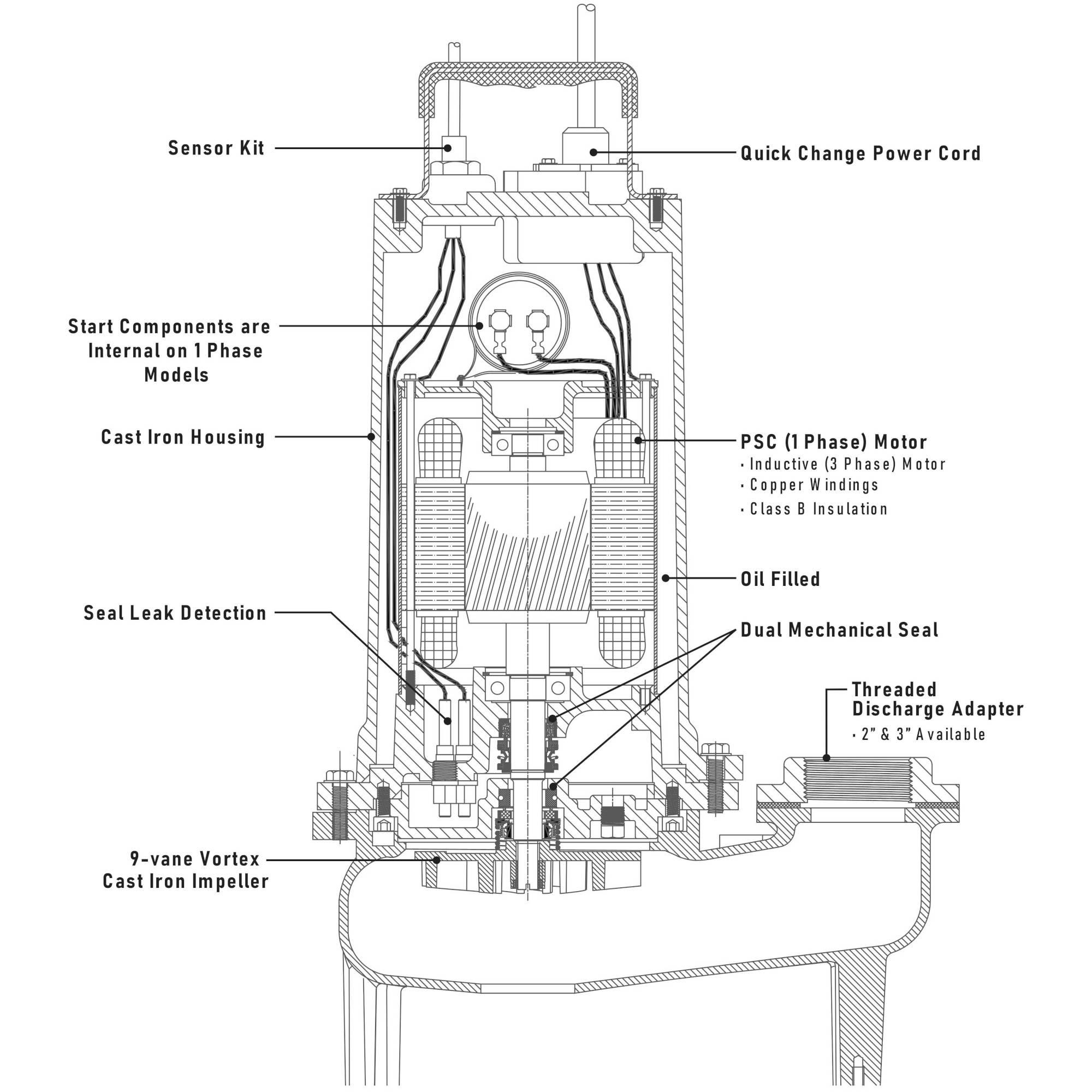

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • 9 Vane vortex cast iron impeller
  • 2” solids handling
  • 2” NPT Flanged Discharge
  • Mechanical Carbon Ceramic Seal
  • 20’ Cord

Specifications

Brand Ashland Pump
Model SWHD150M4-20
HP 1.5HP
Voltage 460VAC 60Hz 3 Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 3.8 Amps
Cord Power Size 16AWG/4C
Cord Type SOW
Cord O.D. 0.46"
Discharge Size 2" NPT Flanged
3” NPT Optional
Impeller Type 9-Vane Vortex
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Dual Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 3450 RPM
Motor Type PSC (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1.5 HP
Service Factor 1.00

Dimensions

SWHD150 Pump Dimensions

Performance Curve

SWHD150 Performance Curve Graph
