/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/UQC1152 Century 1.5HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: UQC1152

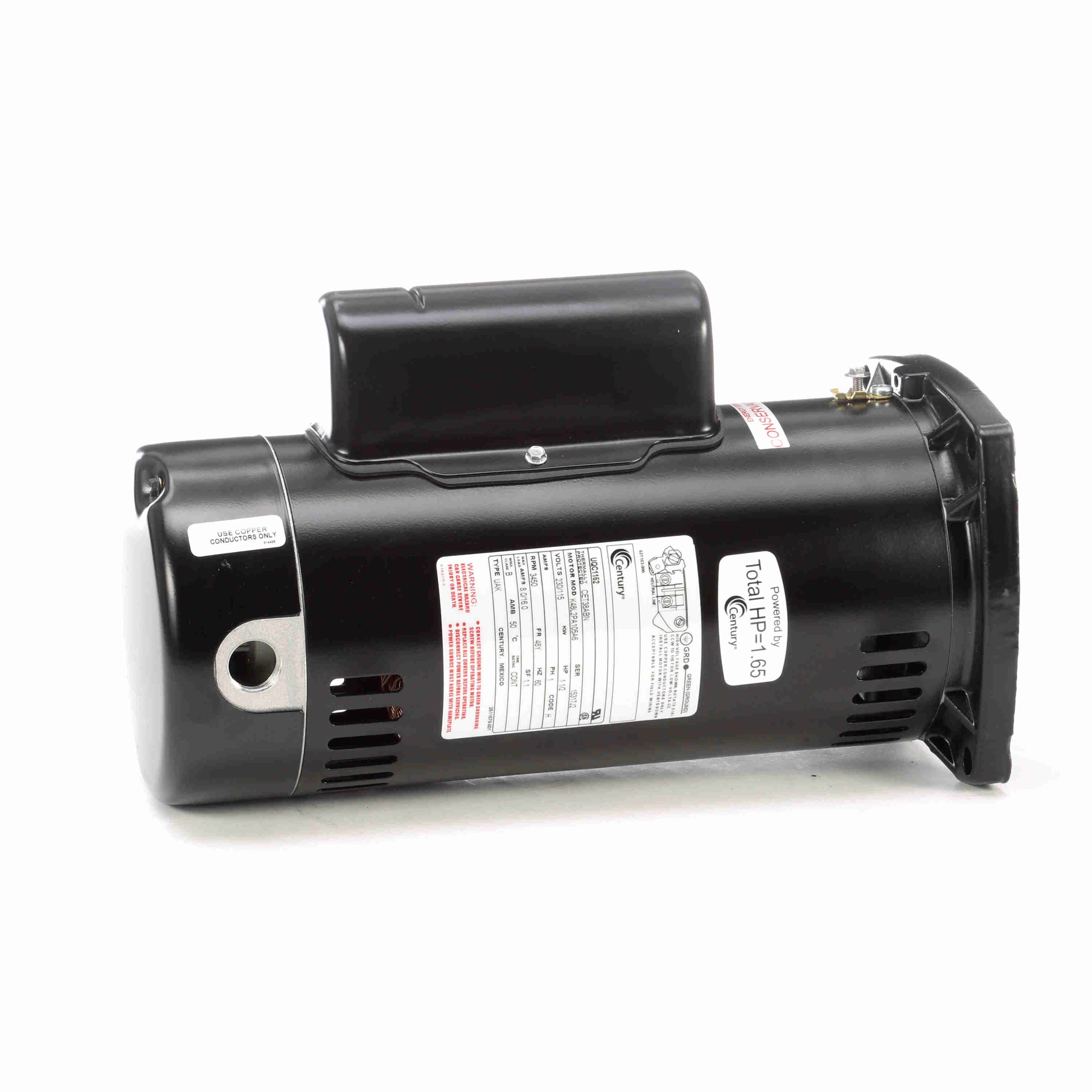

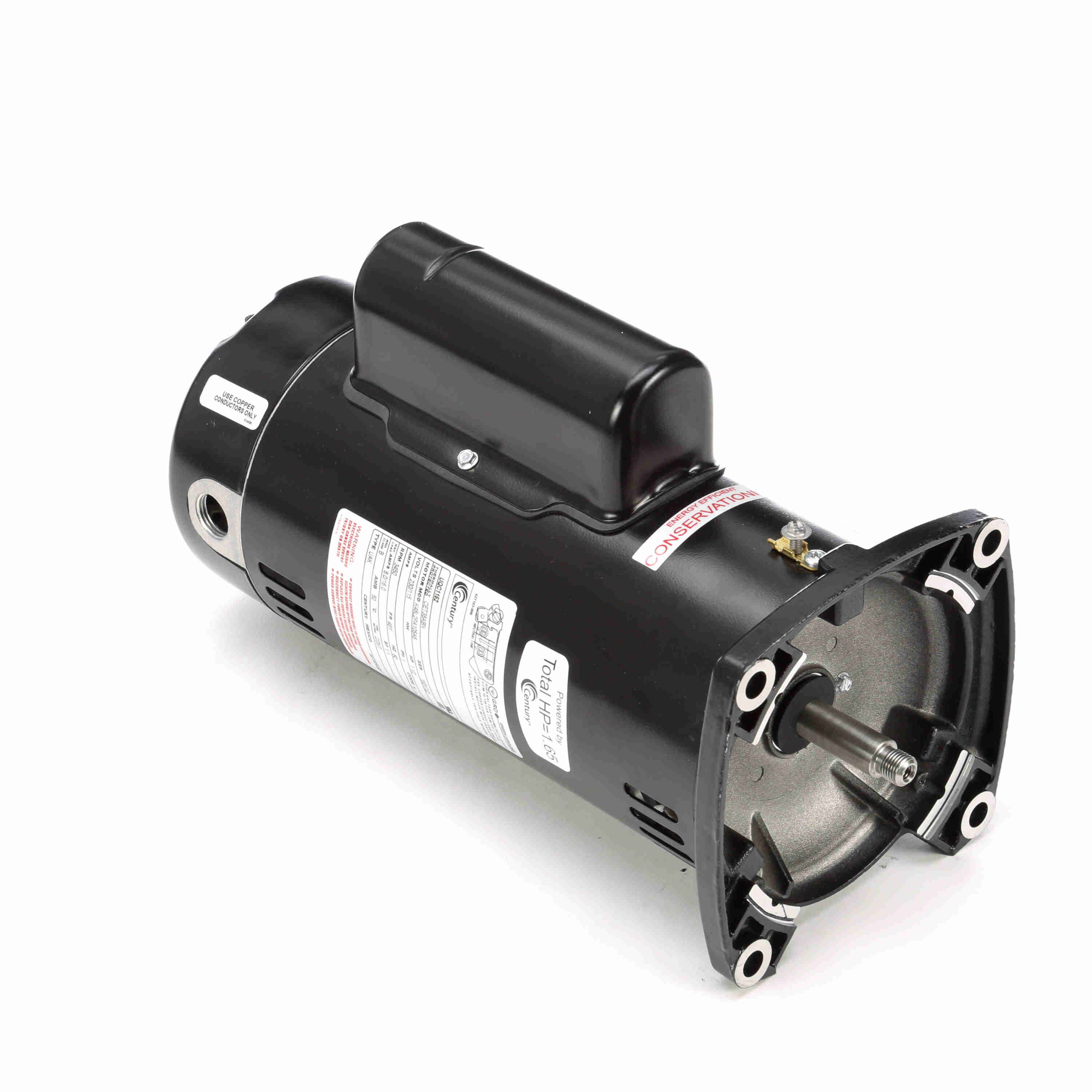

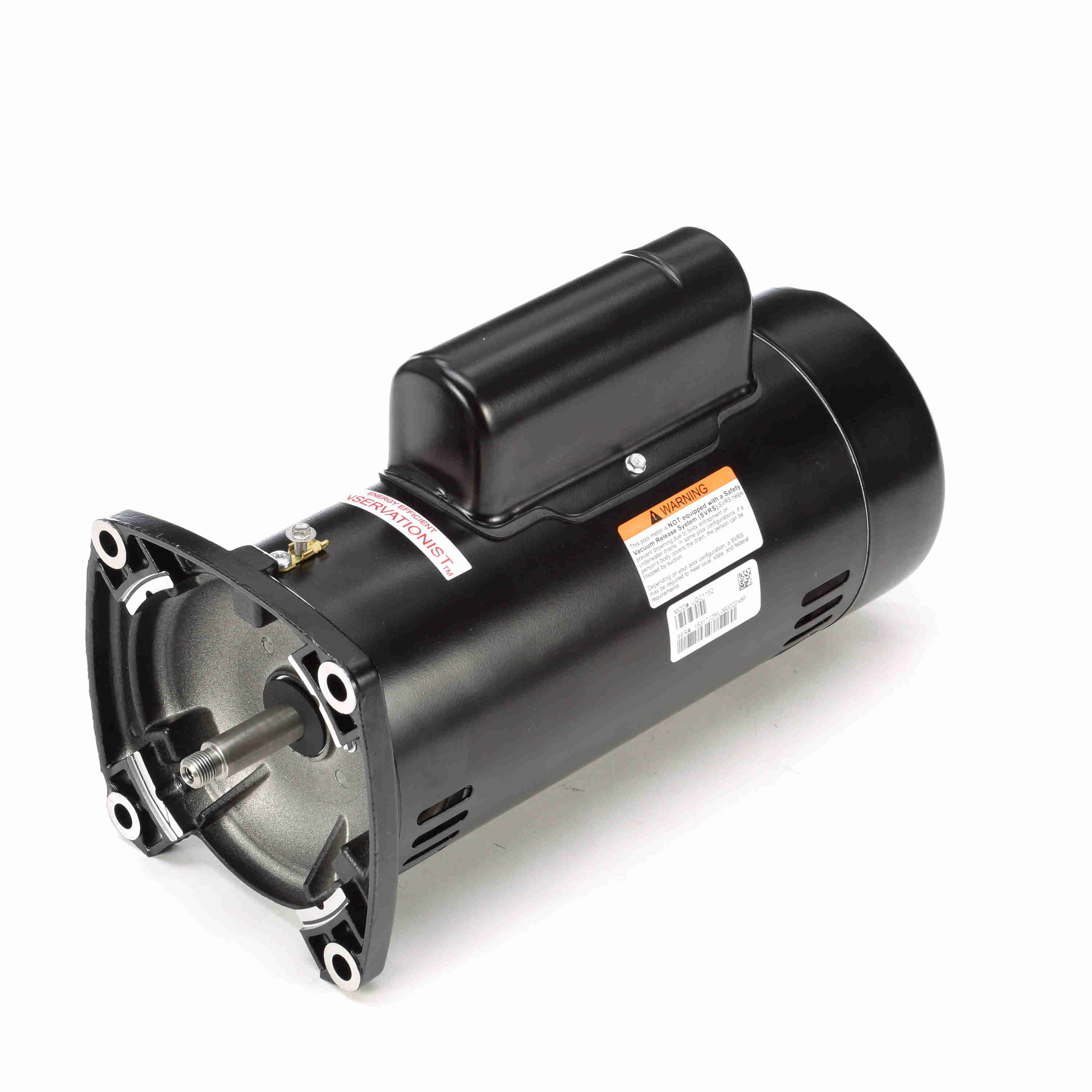

UQC1152 Century 1.5HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UQC1152

Selected accessories will also be added to cart
$420.97 / Each
Quantity:
ODP, 48Y Frame, 115/230VAC Single Phase 60Hz, 5/8" Threaded Stainless Steel Shaft

Features

  • Sealed Ball Bearings
  • Capacitor Start
  • Open Dripproof
  • 303 Stainless Steel Shaft
  • 50°C Ambient
  • Energy Efficient
  • UL 1081 Design

General Specifications

UPC: 786674033079 Weight: 30.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1 1/2 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 8.0/16.0 A Speed: 3450 rpm
Service Factor: 1.1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Poles: 2
Rotation: Counterclockwise Pump End Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 13.94 in
Frame Length: 10.06 in Shaft Diameter: 0.625 in
Shaft Extension: 0.906 in

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
48Y
Horsepower
1.5HP
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
