/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/USQ1152 Century 1.5HP Pool / Spa Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: USQ1152

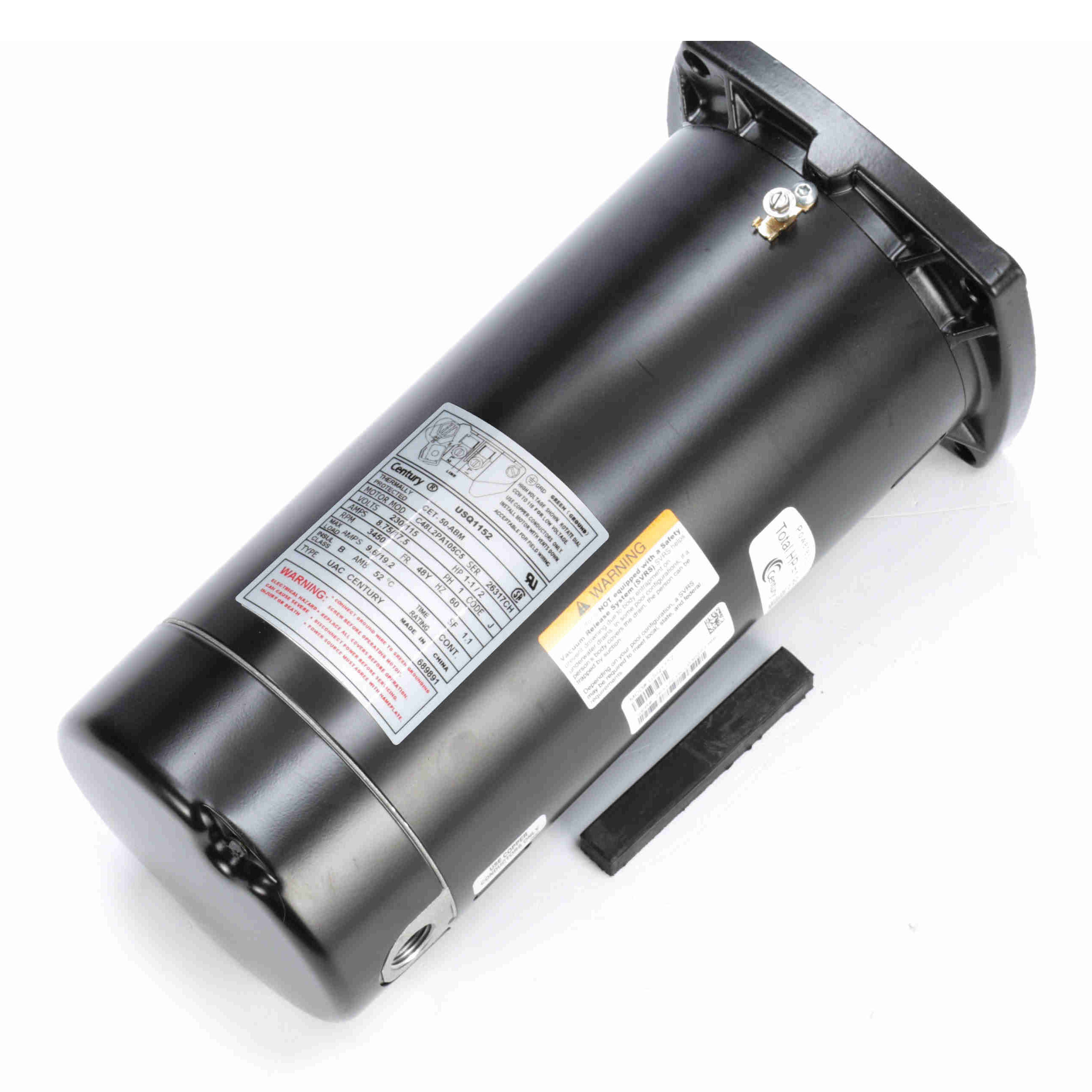

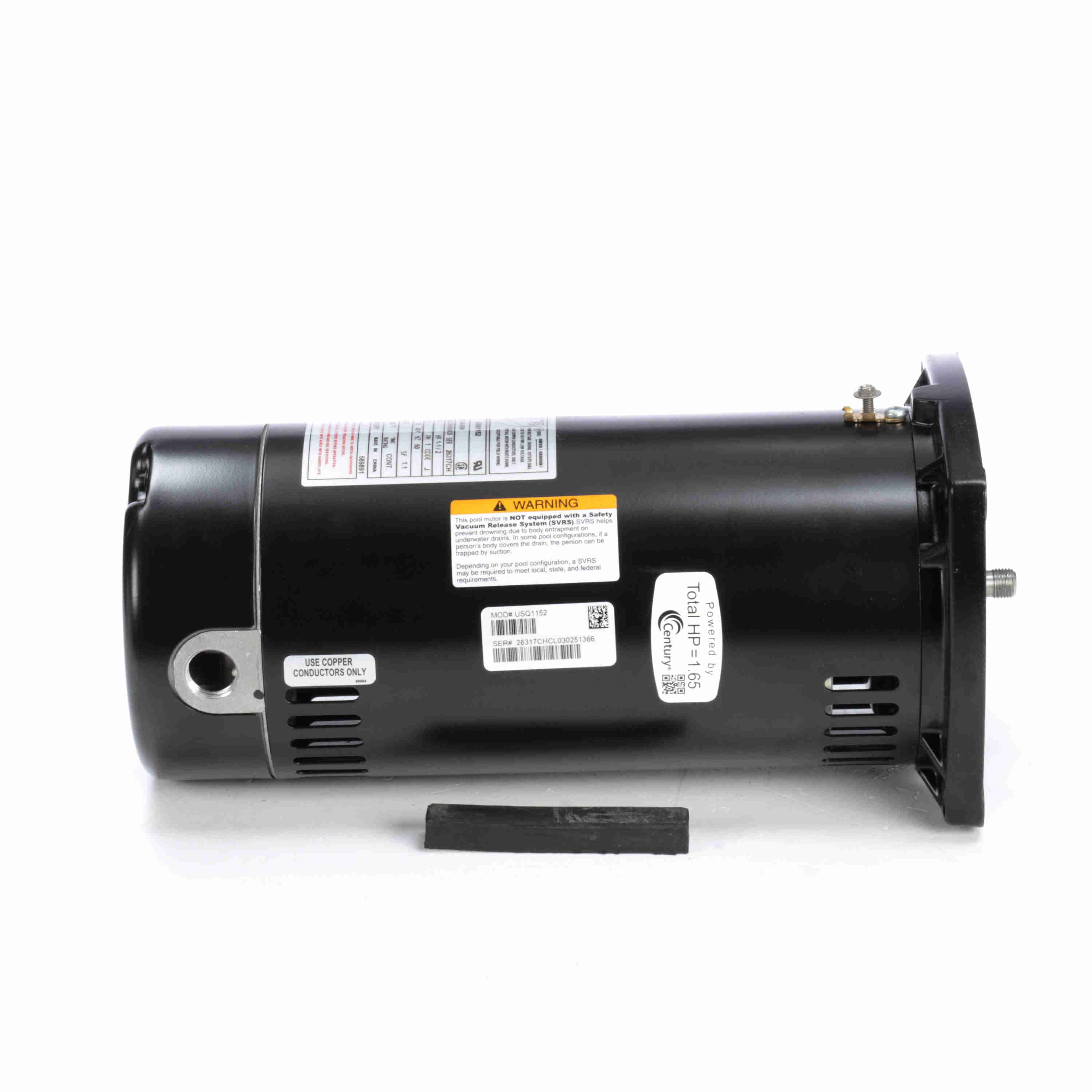

USQ1152 Century 1.5HP Pool / Spa Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: USQ1152

Selected accessories will also be added to cart
$376.97 / Each
Quantity:
ODP, 48Y Frame, 115/230VAC Single Phase 60Hz, Threaded Shaft

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start
  • Open Dripproof
  • 303 Stainless Steel Shaft
  • 50°C Ambient
  • UL 1081 Design

General Specifications

General Specifications
USQ1152 USQ1152
1.5 HP 3450 115/230 ODP 48Y THD SHAFT Induction Motors
Yes

Nameplate Specifications

Nameplate Specifications
1 1/2 HP 1.1 kW
60 Hz 230/115 V
17.5/8.75 A 3450 RPM
1.1 1
Continuous B
48Y Open Drip Proof
Automatic 50 °C
Recognized Y

Technical Specifications

Technical Specifications
Cap Start Motor 2
Counterclockwise Pump End Round
Horizontal BALL
BALL Rolled Steel
Threaded 13.82 in
9.94 in 0.625 in
0.906 in 786674033253
26.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Frame
48Y
Speed
3450RPM
Horsepower
1.5HP
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
