/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/UST1152 Century 1.5HP Pool Filter Electric Motor, 3450RPM
Click Image to Expand

Product ID: UST1152

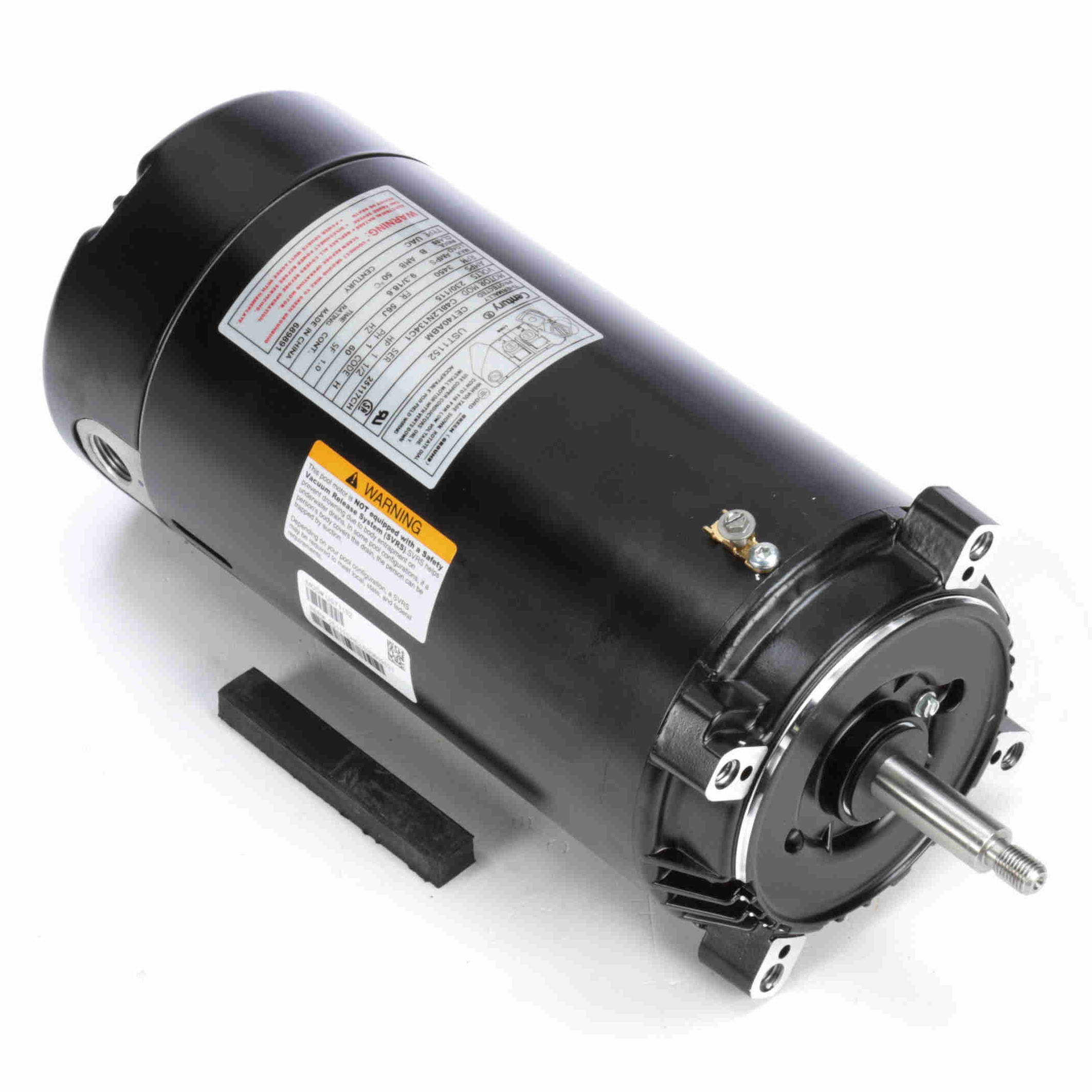

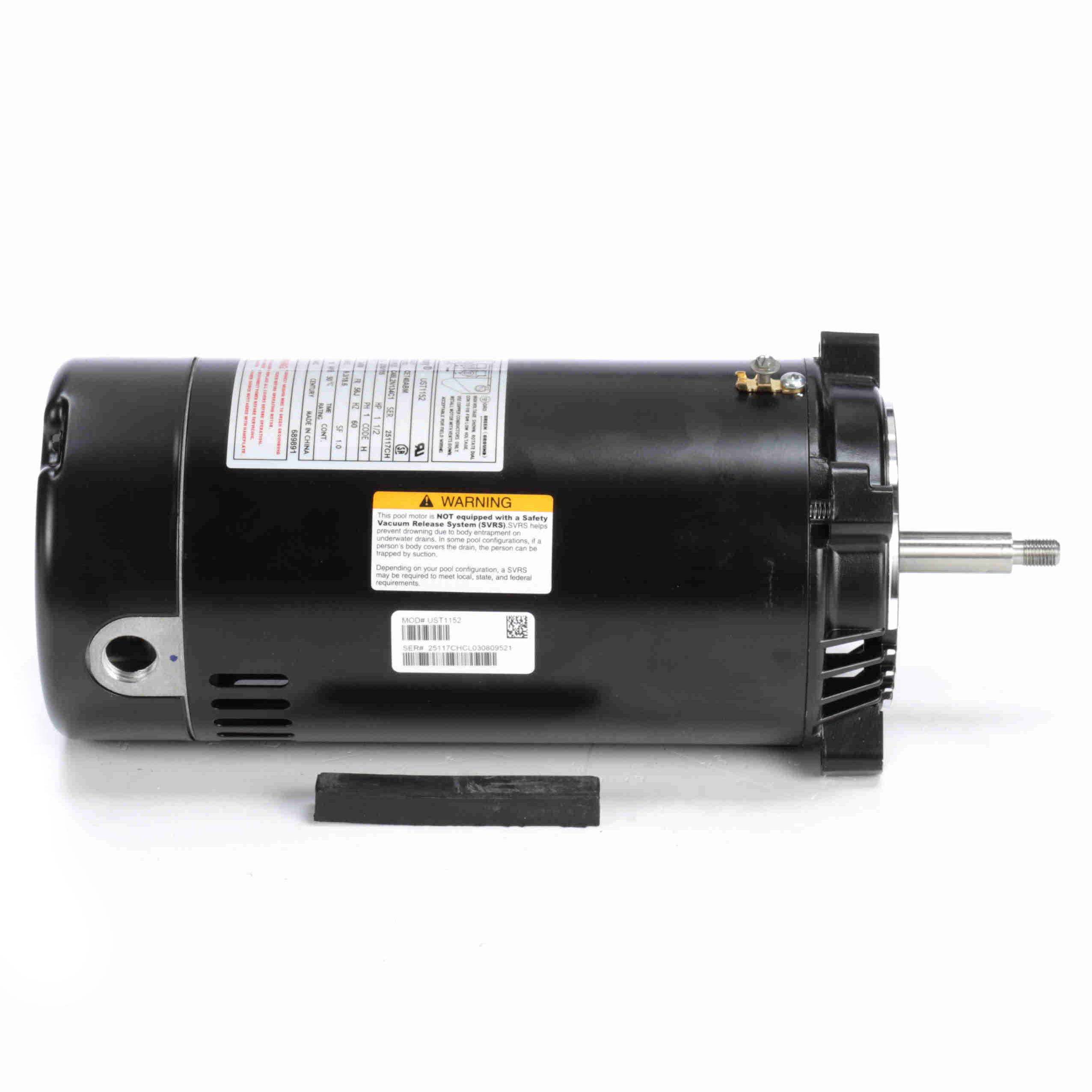

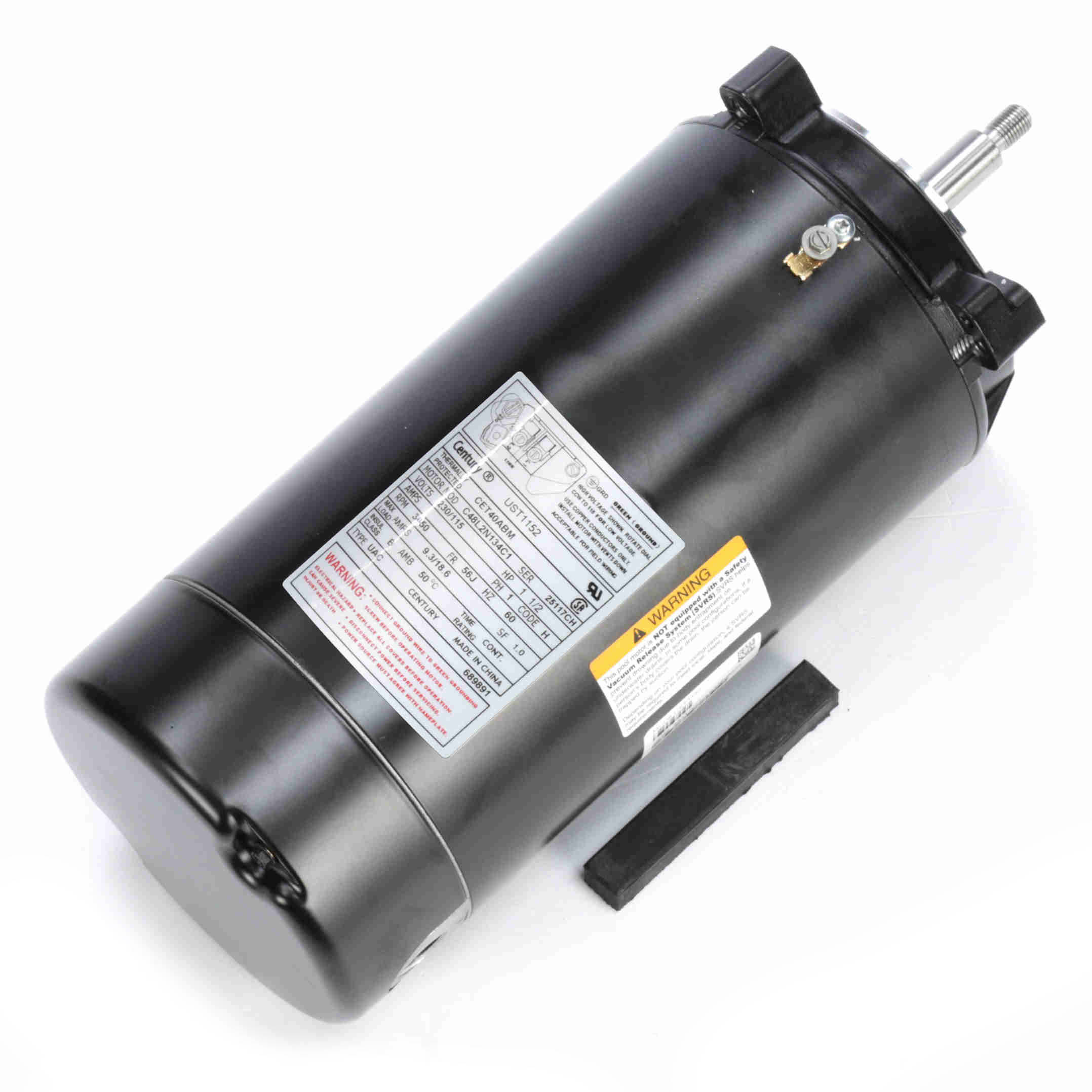

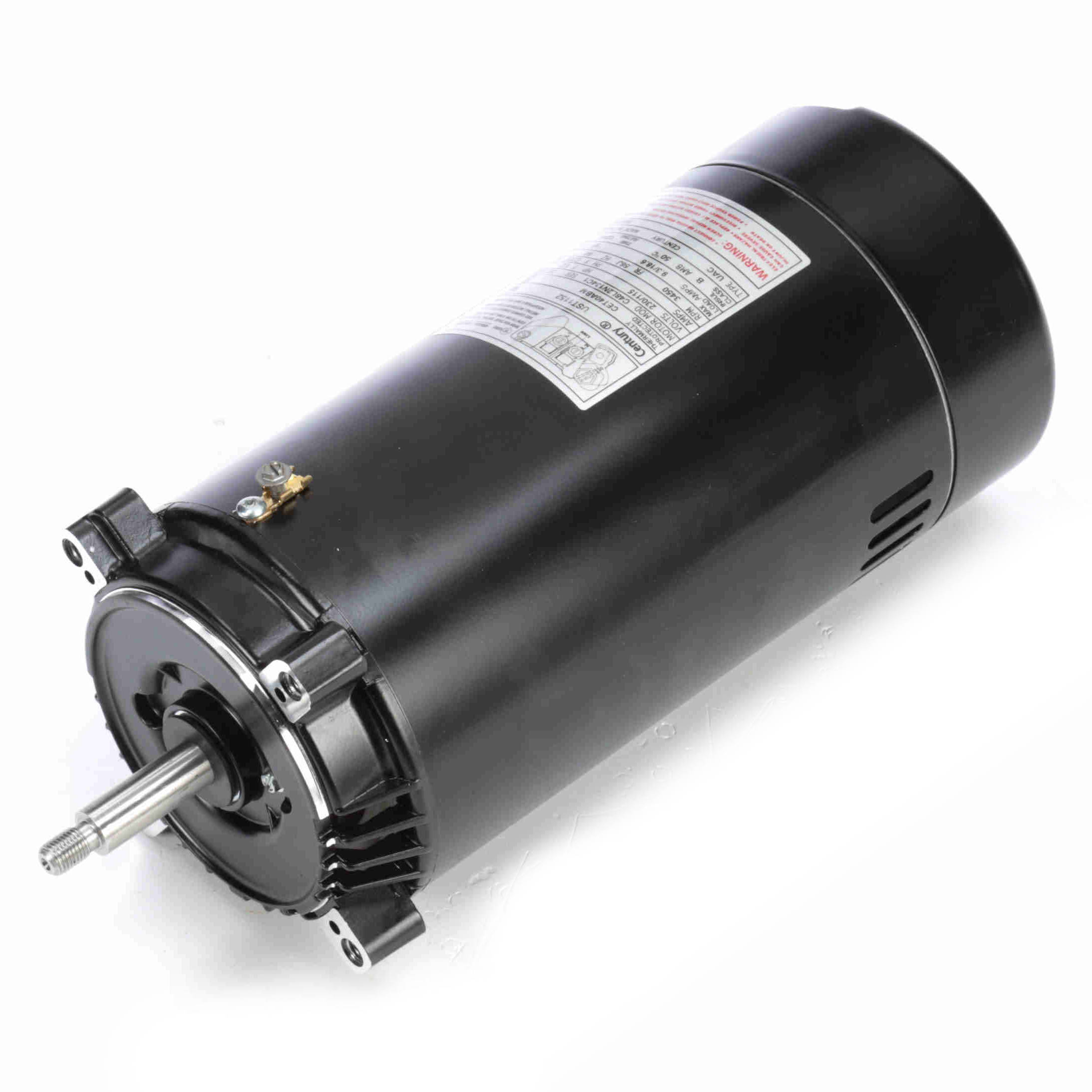

UST1152 Century 1.5HP Pool Filter Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UST1152

Selected accessories will also be added to cart
$361.97 / Each
Quantity:
ODP, 56J Frame, 115/230VAC Single Phase 60Hz, Threaded Shaft

Features

Features
  • Sealed Switch Design
  • UL 1081 Design
  • 50°C Ambient
  • 304 Bearing Shaft End
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Capacitor Start-Capacitor Run

General Specifications

General Specifications
UST1152 UST1152
1.5 HP 3450 115/230 ODP 56J THD SHAFT Induction Motors
Yes

Nameplate Specifications

Nameplate Specifications
1 1/2 HP 1.1 kW
60 Hz 230/115 V
9.3/18.6 A 3450 RPM
1 1
Continuous B
56J Open Drip Proof
Automatic 50 °C
Recognized Y

Technical Specifications

Technical Specifications
Cap Start Motor 2
Counterclockwise Pump End Round
Horizontal BALL
BALL Rolled Steel
Threaded 14.70 in
8.88 in 0.625 in
2.56 in 786674033345
26.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Speed
3450RPM
Frame
56J
Horsepower
1.5HP
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
