/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/UST1202 Century 2HP Pool Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: UST1202

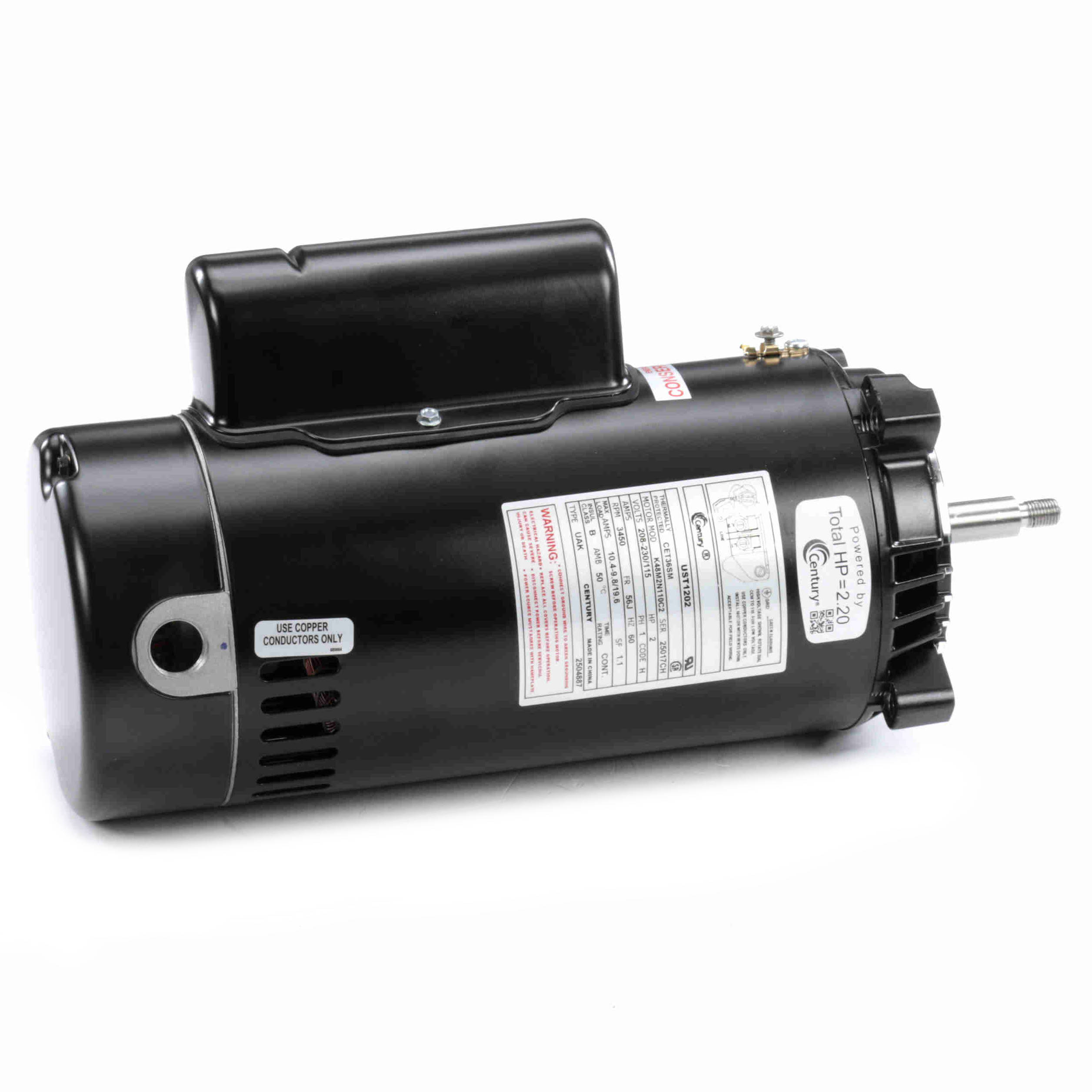

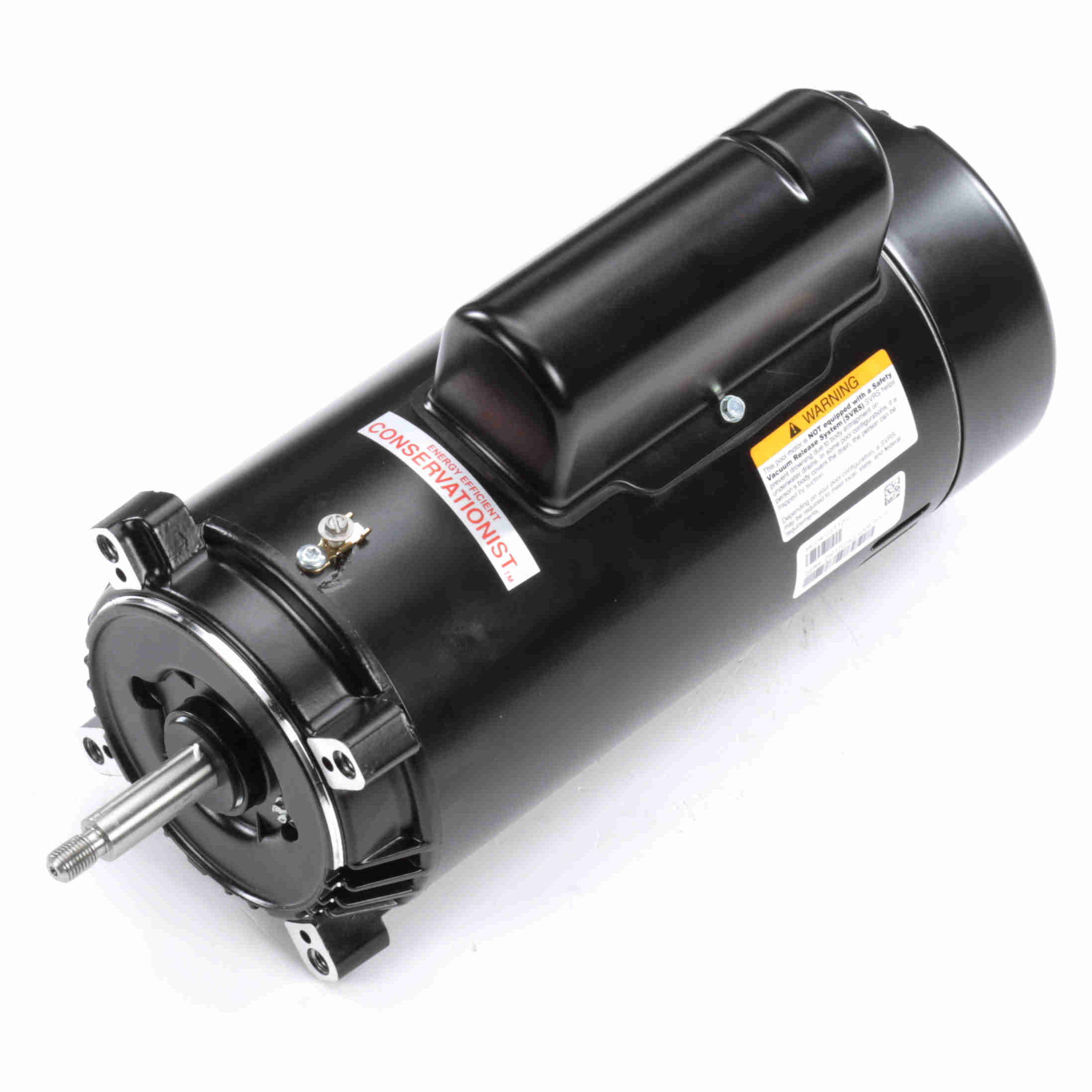

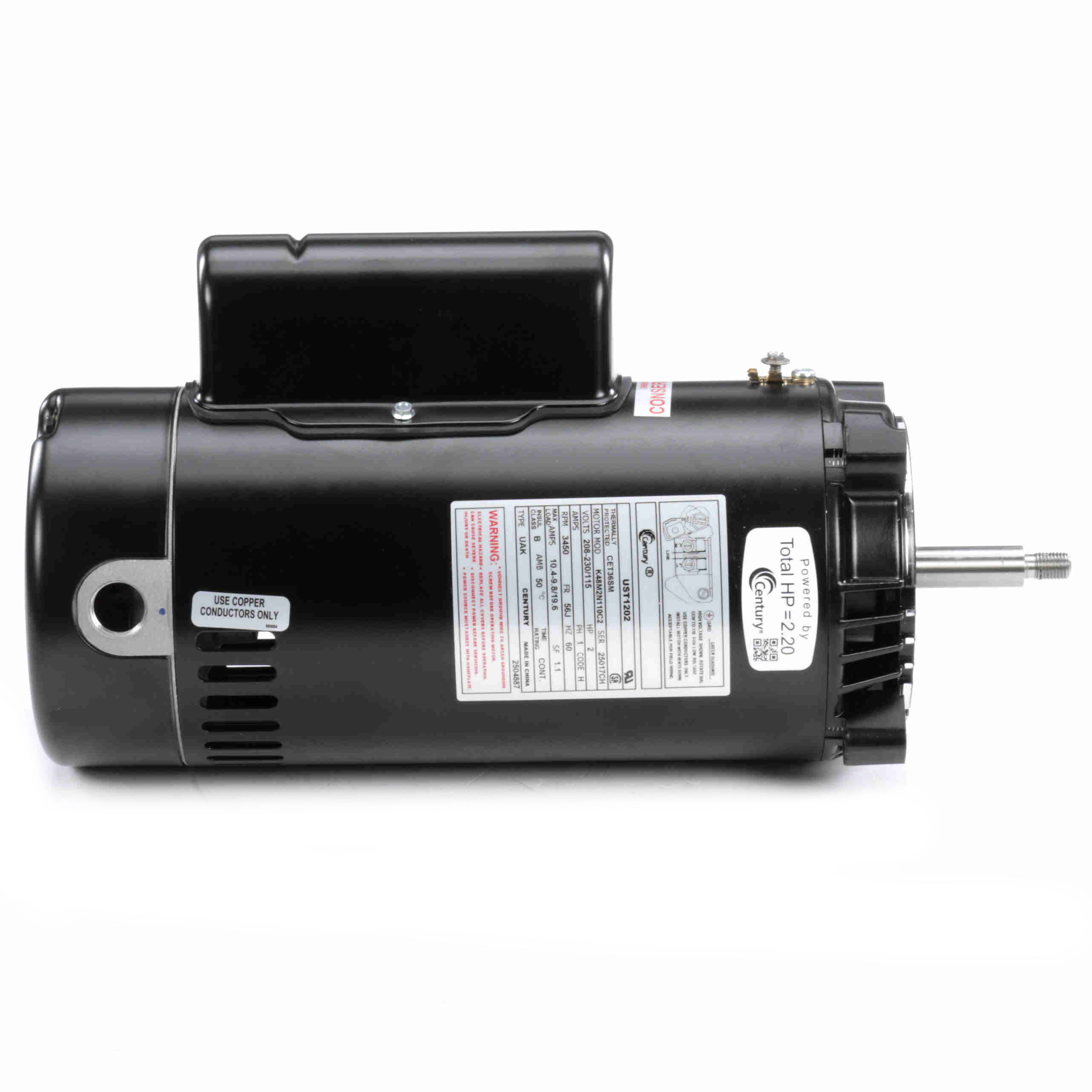

UST1202 Century 2HP Pool Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: UST1202

Selected accessories will also be added to cart
$480.97 / Each
Quantity:
ODP, 56J Frame, 115/208-230VAC Single Phase 60Hz, Round Body, Rolled Steel, 5/8" Threaded Shaft

Features

Features
  • Sealed Switch Design
  • UL 1081 Design
  • 50°C Ambient
  • 304 Bearing Shaft End
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Capacitor Start-Capacitor Run

General Specifications

General Specifications
Model : Catalog No : UST1202
Part Description : 2 HP 3450 115-208/230 ODP 56J THD SHAFT Category : Induction Motors
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 2 HP Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 208-230/115 V
Current : 10.4-9.8/19.6 A Speed : 3450 RPM
Service Factor : 1.1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56J Enclosure : Open Drip Proof
Overload Protector : Automatic Ambient Temperature : 50 °C
UL : Recognized CSA : Y

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 2 Rotation : Counterclockwise Pump End
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : Threaded
Overall Length : 15.20 in Frame Length : 9.38 in
Shaft Diameter : 0.625 in Shaft Extension : 2.565 in
UPC : 786674033352 Weight : 33.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Horsepower
2HP
Speed
3450RPM
Frame
56J
Application
Pool Pump
