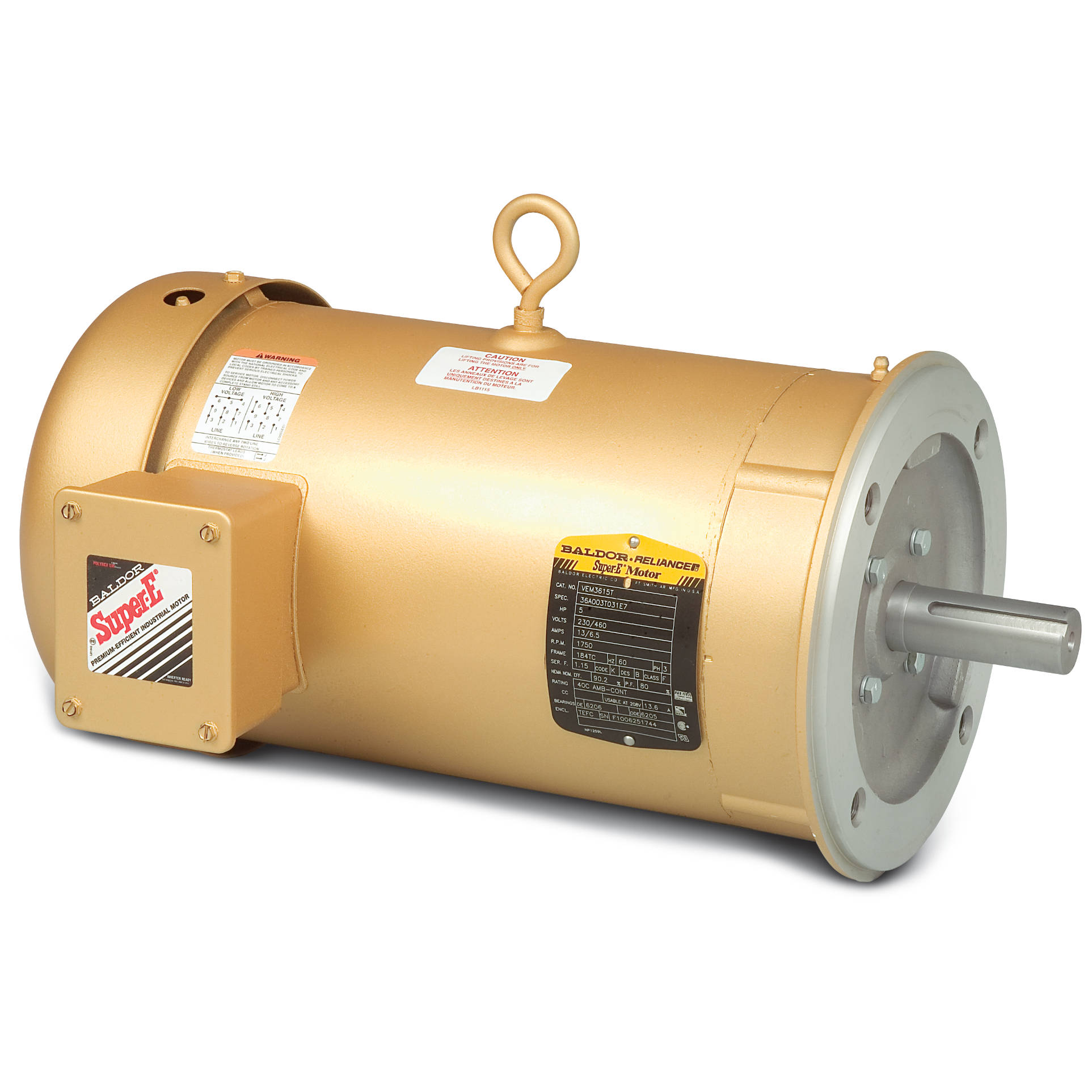

Catalog NumberVEM3545
EnclosureTEFC
Frame56C
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency1.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency3600 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsNEMA PREMIUM
UR
CSA EEV
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage1.400 A @ 460.0 V
2.800 A @ 230.0 V
3.000 A @ 208.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load77.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps1.4 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Type3516M
Mounting ArrangementF1
Number of Poles2
Overall Length12.24 IN
Power Factor87
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.25
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3450 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
