/Products/Electric Motors/Single Phase/Baldor/Farm Duty/General Purpose, TEFC/C-Face, Footless/VFDL3501M Baldor 1/3HP Agri-Duty Electric Motor, 1725 RPM

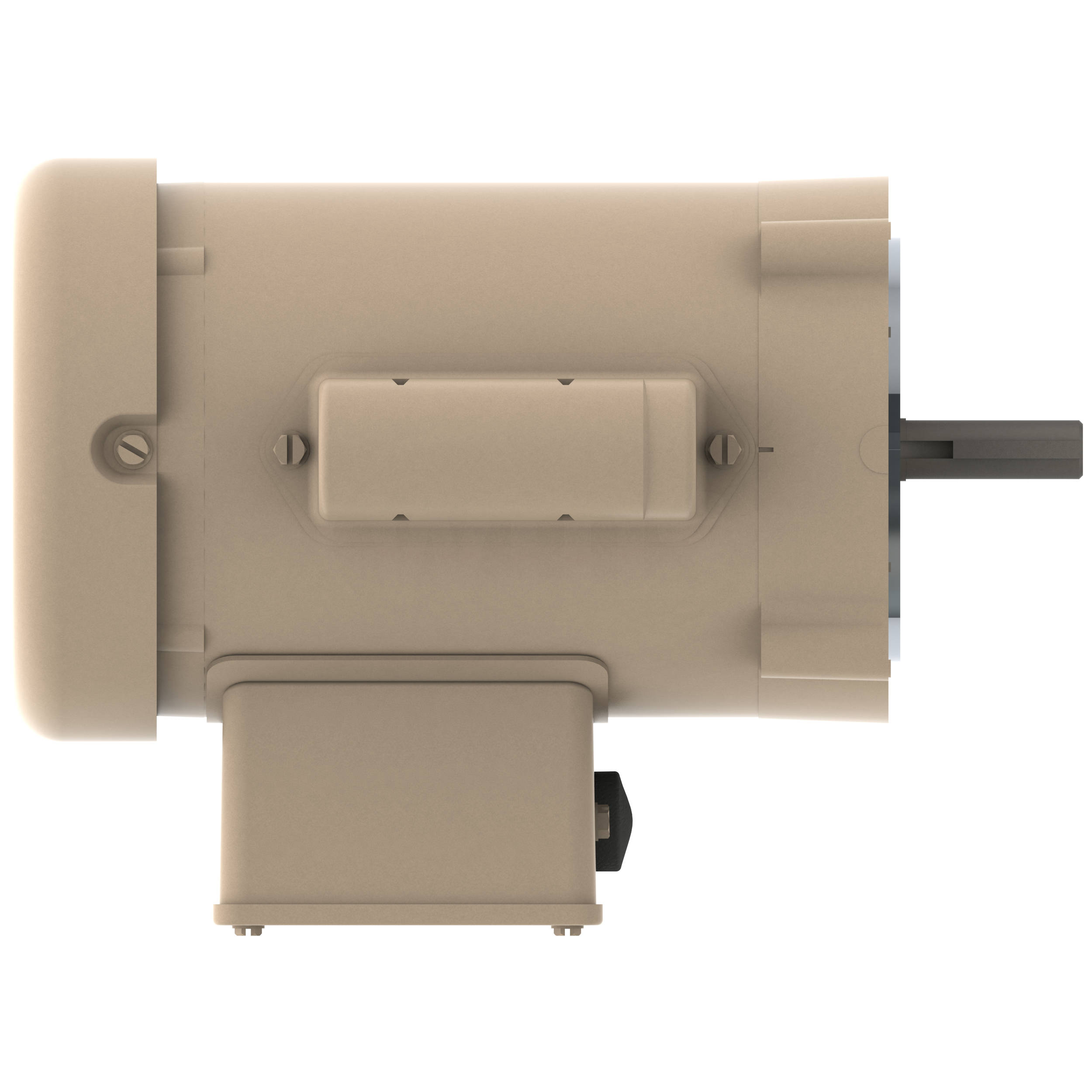

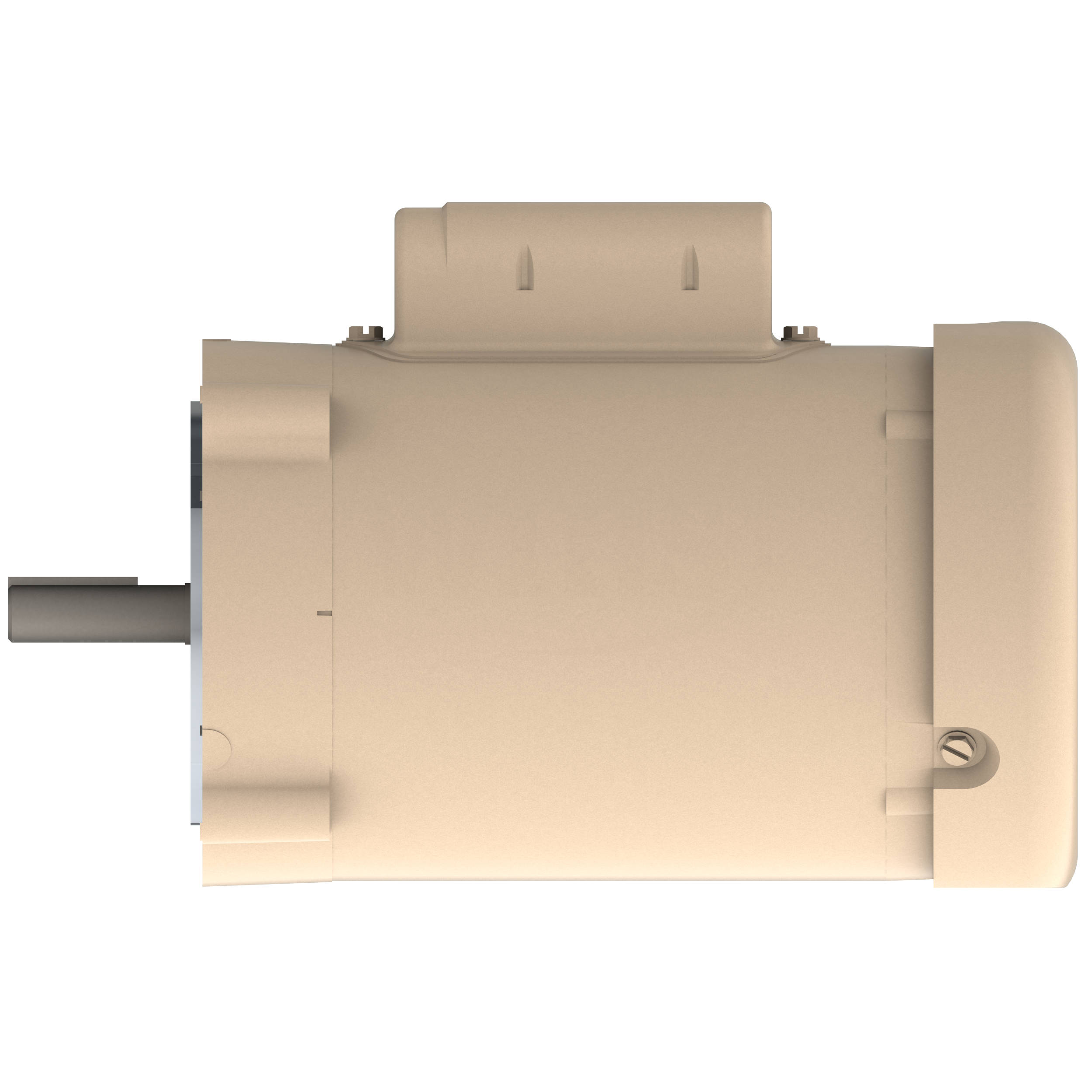

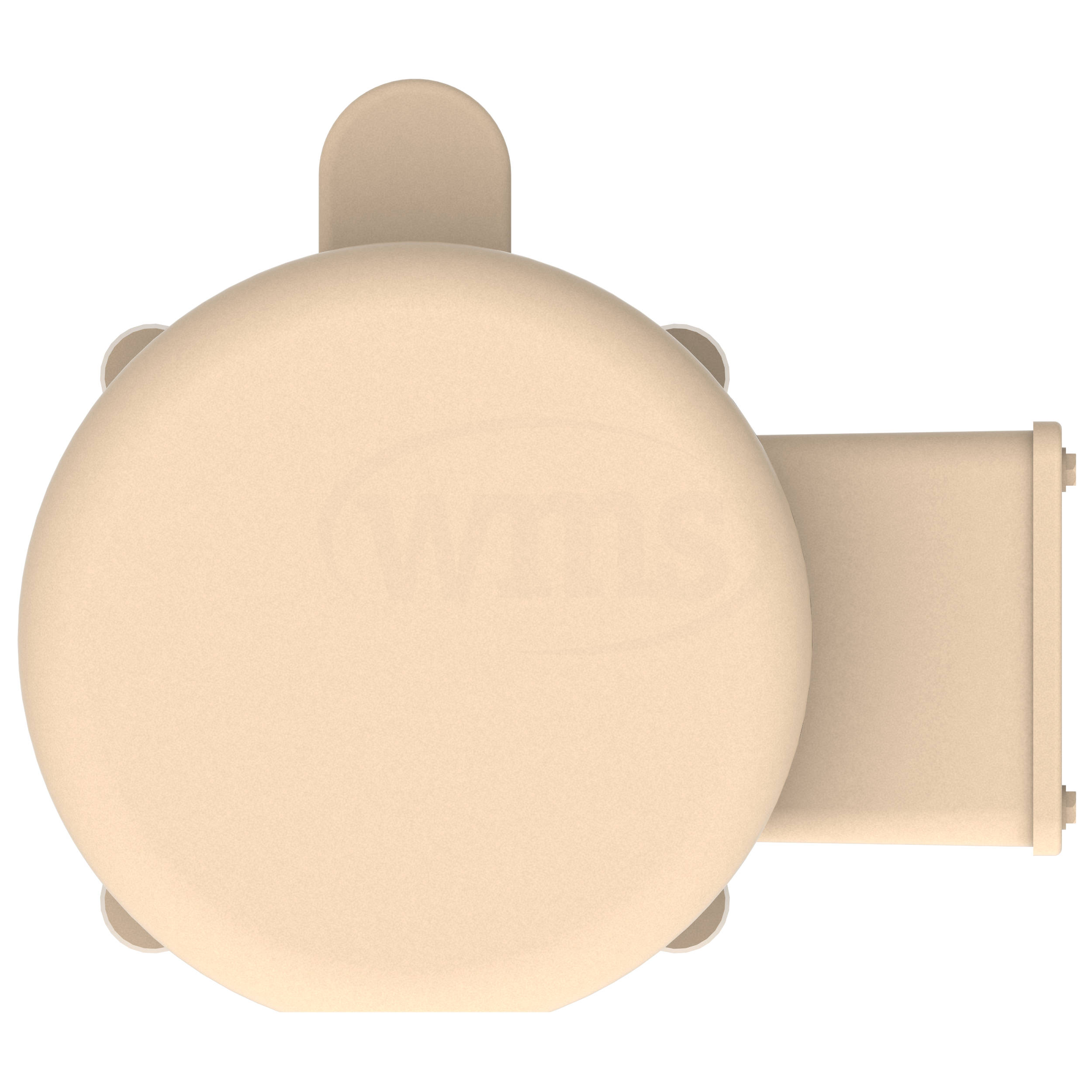

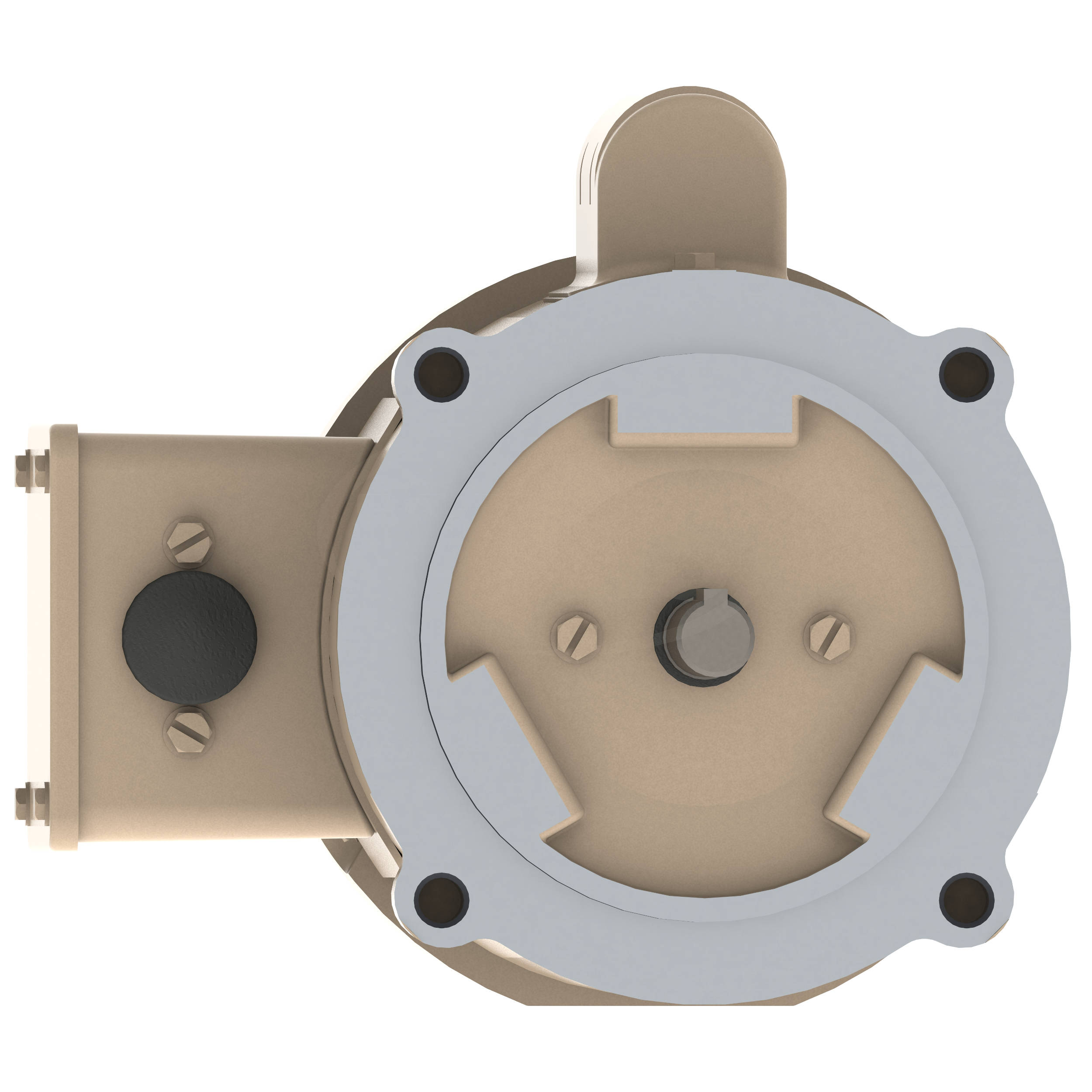

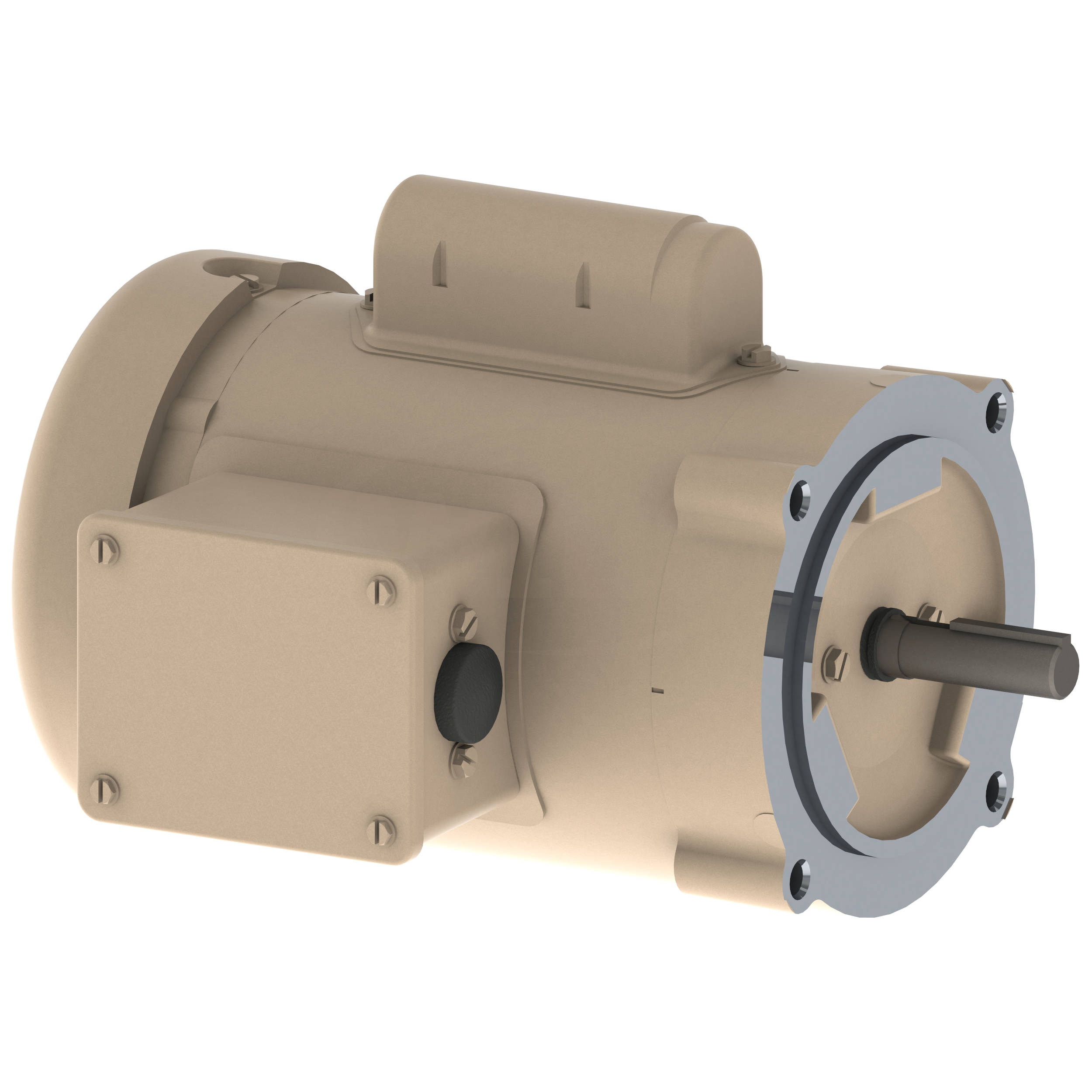

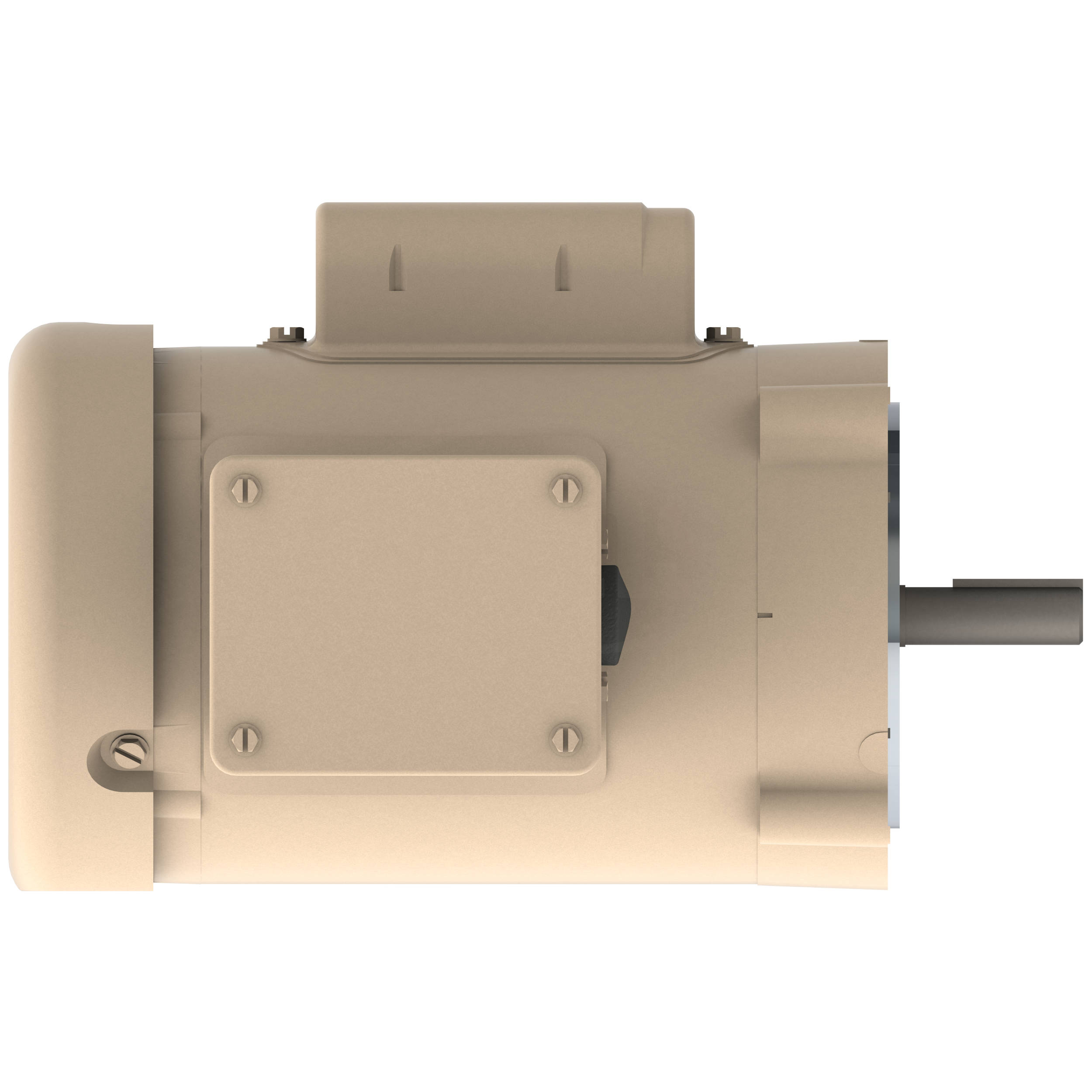

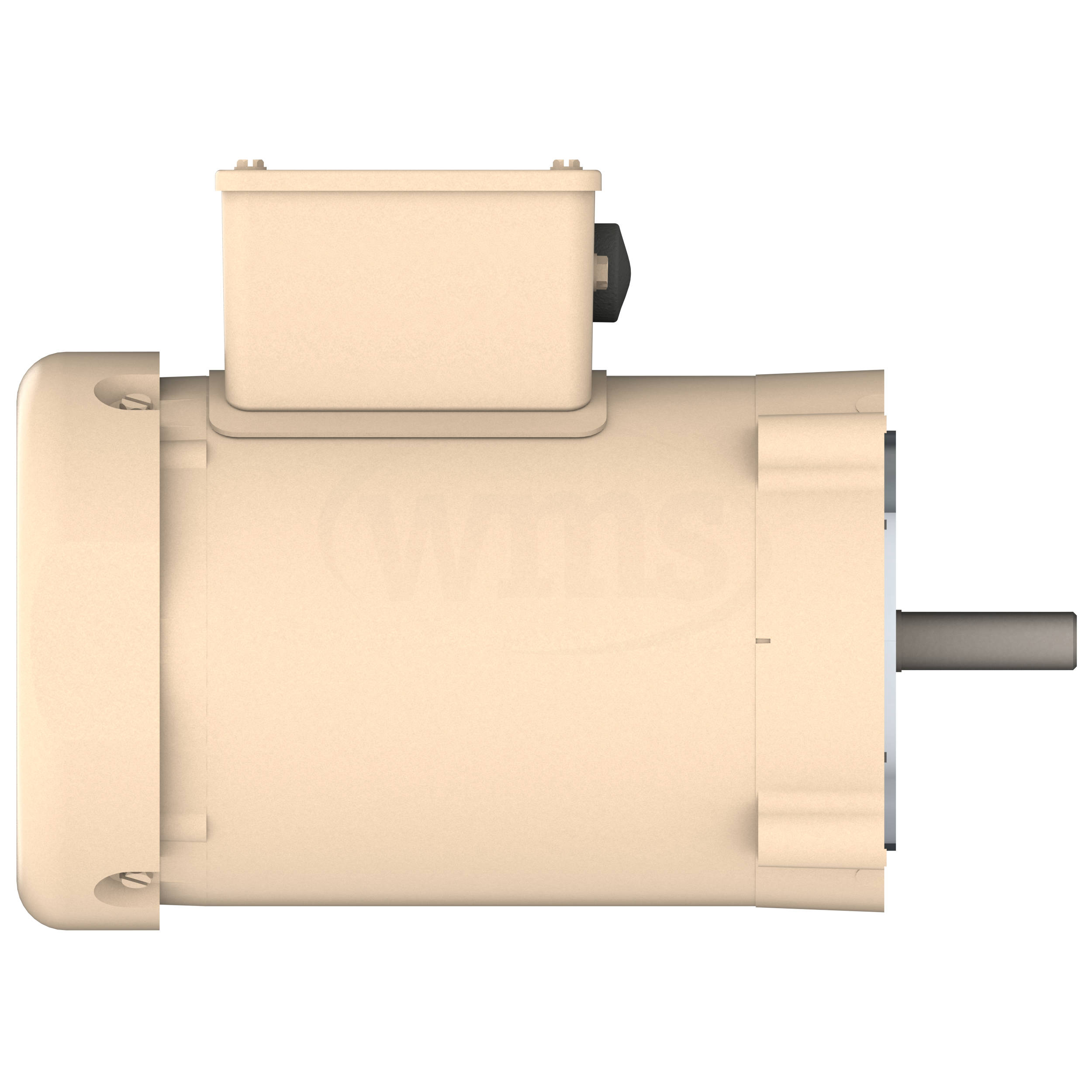

Click Image to Expand

Product ID: VFDL3501M

VFDL3501M Baldor 1/3HP Agri-Duty Electric Motor, 1725 RPM

MFG: Baldor Electric Company
MFG Part Number: VFDL3501M

Selected accessories will also be added to cart
$299.97 / Each
Quantity:
TEFC, 56C Frame, 115/208-230VAC 60Hz, Single Phase, C-Face, Footless, Premium Efficient, 34M372W721G1
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

Specs

Output0.330 hp
Phase1
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage115 V
230 V
Frame MaterialSteel
Frame56C
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current6.0 A @ 115 V
3.6 A @ 208 V
3.0 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load60.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps3.0 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size7 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3414L
Number of Poles4
Overall Length11.35 in
Power Factor60
Product FamilyGeneral Purpose
Product TypeFarm Duty
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.35
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1,725 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Manual Thermal Overload
Winding Thermal 1 LocationKO
Winding Thermal 2None

Applications

  • Wide variety of agri-duty and industrial applications

Features

  • Sealed ball bearings
  • Lubricated with high temperature moisture resistant grease
  • Drive end seal and v-ring slinger to prevent moisture and contaminant ingress
  • Condensation drains
  • Gasketed cast conduit boxes
  • Epoxy paint protects motor from harsh environments

Nameplate

Nameplate

CAT.NO.VFDL3501M
SPEC.34M372W721G1
HP.33
VOLTS115/230
AMP6/3
RPM1725
FRAME56CHZ60PH1
SER.F.1.35CODELDESNCLB
NEMA-NOM-EFF60PF60
RATING40C AMB-CONT
CCUSABLE AT 208V3.6
DE6203ODE6203
ENCLTEFCSN
SFA 6.8/3.4
NP1280L

Performance

Performance

Performance at 230 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C6.32 Ohms A Ph / 4.93 Ohms B Ph
Temp. Rise @ Rated Load59° C
Temp. Rise @ S.F. Load73° C
Start ConfigurationDOL
Break-Down Torque2.95 LB-FT
Pull-Up Torque2.55 LB-FT
Locked-Rotor Torque3.6 LB-FT
Starting Current13 A

Load Characteristics

Rated Load0%25%50%75%100%125%150%S.F.
Power Factor22.031.041.052.060.067.073.00.0
Efficiency0.033.041.052.060.061.561.50.0
Speed (RPM)1,7951,7801,7601,7451,7251,7051,6800
Line Amps2.602.602.702.803.003.303.703.40

Performance Curves

Type
Electric Motor
Input Phase
Single Phase
Frame
56C
Enclosure
TEFC
Horsepower
1/3HP
Speed
1725RPM
