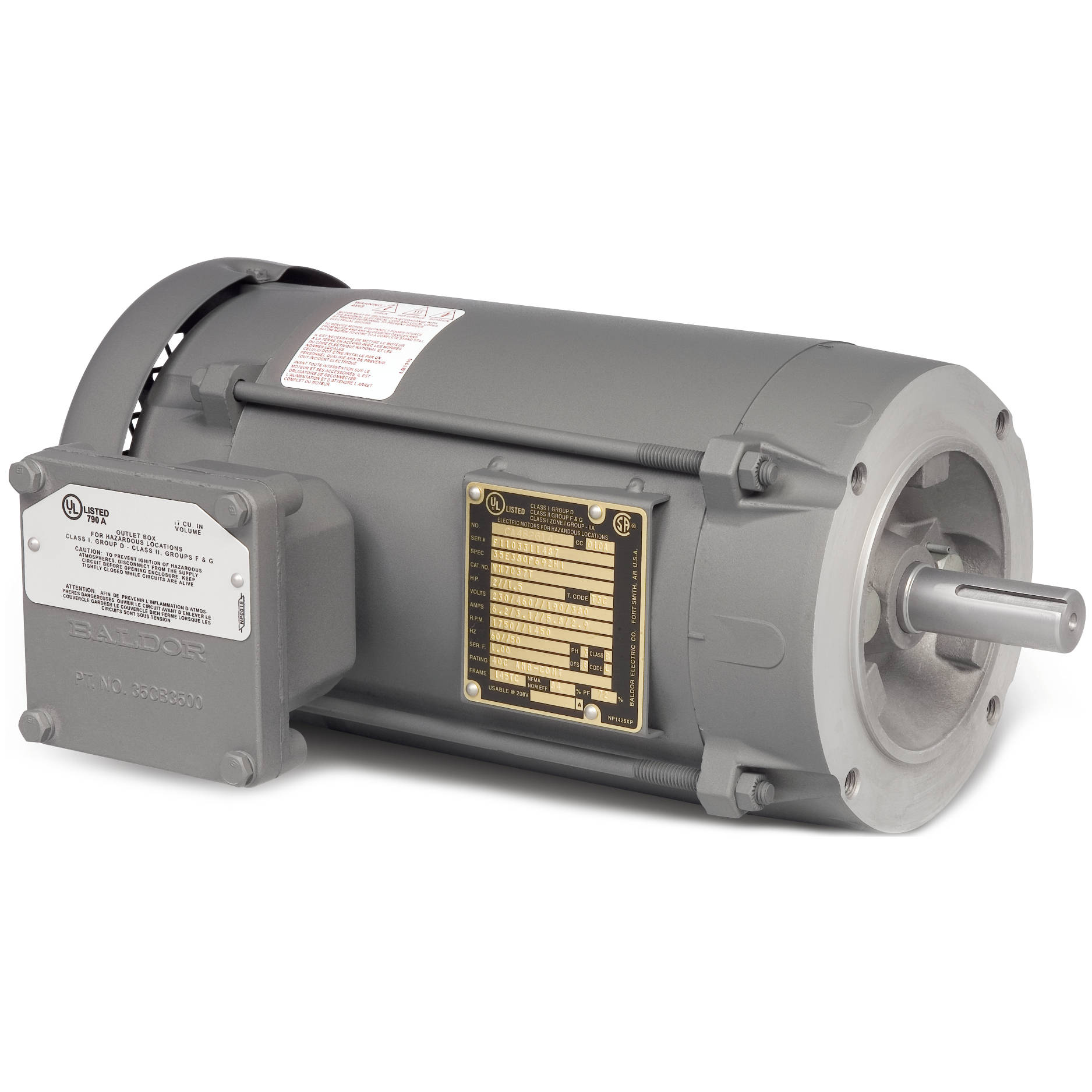

VM7010A Baldor 3/4HP Explosion Proof Electric Motor, 1725RPM
Enlarge Photo

Product ID: VM7010A

VM7010A Baldor 3/4HP Explosion Proof Electric Motor, 1725RPM

MFG: Baldor Electric Company
MFG Part Number: VM7010A

Selected accessories will also be added to cart
$789.97 / Each
Quantity:
XPFC, 56C Frame, 208-230/460VAC 60Hz 3 Phase, X3420M, Rolled Steel, Round Body, C- Face, 5/8" Keyed Shaft

Specifications

Specs

Catalog NumberVM7010A
EnclosureXPFC
Frame56C
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency.750 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and GroupCLI GP D; CLII GP F,G
XP DivisionDivision I
Agency ApprovalsUR
UL
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage1.500 A @ 460.0 V
3.000 A @ 230.0 V
3.200 A @ 208.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load73.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps1.5 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassB
Inverter CodeNot Inverter
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size12 @ 18 AWG
Motor TypeX3420M
Mounting ArrangementF1
Number of Poles4
Overall Length14.22 IN
Power Factor58
Product FamilyHazardous Location Motor
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1725 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Automatic Thermal Overload
Winding Thermal 1 LocationEP
Winding Thermal 2None
XP Temp CodeT3C

Applications

  • Customer specified Division 1 hazardous areas
  • Pumps, fans and conveyors
  • Fixed speed operation

Features

  • Robust steel and cast iron frame designs
  • Auto thermal overload (<1 Hp), normally closed thermostats (>1 Hp)
  • Threaded lead inlet
  • Low noise vibration dampening bases

Nameplate

Nameplate

NO.CC
SER. #
SPEC34-5336-5721
CAT.NO.VM7010A
H.P..75T. CODET3C
VOLTS208-230/460
AMPS3.2-3/1.5
R.P.M.1725
HZ60PH3CLASSB
SER.F.1.00DESBCODEK
RATING40C AMB-CONT
FRAME56CNEMA NOM. EFF73
USABLE AT 208V3.2PF58
BLANK
NP0016XPSL

Performance

Performance

Performance at 460 V, 60 Hz, 0.75 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C17.7 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load74° C
Temp. Rise @ S.F. Load
Start ConfigurationDOL
Break-Down Torque10 LB-FT
Pull-Up Torque8.5 LB-FT
Locked-Rotor Torque8.8 LB-FT
Starting Current10 A

Load Characteristics

Rated Load0%25%50%75%100%125%150%S.F.
Power Factor12.028.042.055.064.071.076.00.0
Efficiency0.056.169.774.776.276.175.20.0
Speed (RPM)1,7981,7831,7661,7491,7311,7111,6930
Line Amps1.201.201.201.301.501.601.800.00

Performance Curves

Performance at 208 V, 60 Hz, 0.75 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C4.425 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load63° C
Temp. Rise @ S.F. Load
Start ConfigurationDOL
Break-Down Torque8.04 LB-FT
Pull-Up Torque6.66 LB-FT
Locked-Rotor Torque6.89 LB-FT
Starting Current17.58 A

Load Characteristics

Rated Load0%25%50%75%100%125%150%S.F.
Power Factor13.033.053.067.073.082.085.00.0
Efficiency0.064.075.478.778.577.675.90.0
Speed (RPM)1,7981,7801,7611,7401,7191,6951,6720
Line Amps1.861.891.962.222.683.003.500.00

Performance Curves

Type
Electric Motor
Input Phase
3-Phase
Speed
1725RPM
Frame
56C
Horsepower
3/4HP
Enclosure
XPFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
