Motor/Control Division

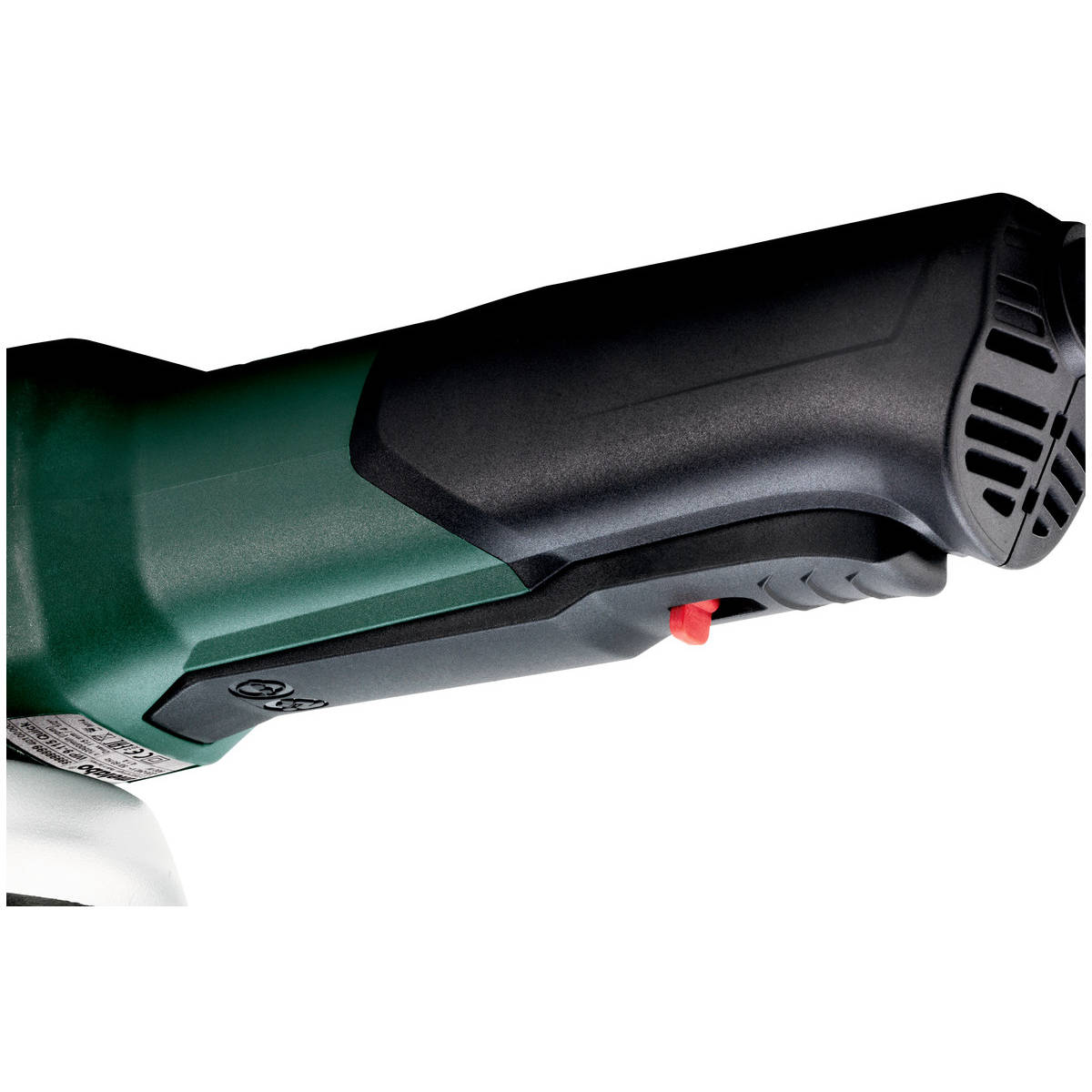

Low fatigue as never before: compact angle grinder with smallest handle circumference in its class for perfect ergonomics
Longer service life, more drive: the Metabo LongLife Motor with patented dust guard, up to 20% more high overload capacity and 50% more torque
Quick disc change at the push of a button without tools, with the Metabo M-Quick System
Tool-free adjustable guard; twist-proof
Paddle switch with dead-man function: safe to operate due to an ergonomically integrated non-slip switch
Metabo S-automatic Torque Limiting Clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user protection and swift progress
Gear housing can be mounted turned in 90° steps for left-handed operation or cutting
Auto-stop carbon brushes to protect the motor
Suitable for 120 Volt direct current (DC)

Technical Attributes

Parameters

Amps

11 AMPS

Grinding wheel Ø

4 1/2 / 5 "

Rated input power

1100 W

Output power

720 W

No-load speed

11000 RPM

Revolutions at rated load

7500 RPM

Torque

28 in-lbs

Spindle thread

5/8" - 11 UNC

Weight (without power cable)

5.1 lbs

Cable length

13 ft

Vibration

Surface grinding

5.8 m/s²

Uncertainty of measurement K

1.5 m/s²

Grinding with sandpaper

2.6 m/s²

Uncertainty of measurement K

1.5 m/s²

Noise emission

Sound pressure level

94 dB(A)

Sound power level (LwA)

105 dB(A)

Uncertainty of measurement K

3 dB(A)

Package Contents

Guard
Inner support flange
M-Quick flange nut
Side handle Metabo VibraTech (MVT)

Links

Metabo WP 11-125 QUICK Operating Instructions (PDF, 36 Pages, 4.46MB)
Metabo WP 11-125 QUICK Supplement (PDF, 1 Page, 3.1MB)
Metabo WP 11-125 QUICK Spare Parts List, 03624420, US 120V (PDF, 4 Pages, 1.25MB)

Type

Angle Grinder

Power Source

Corded

Input Voltage

120VAC

Input Phase

Single Phase
