/Products/Electric Motors/Single Phase/Marathon Single Phase Electric Motors/Ventilation Fan/X024 Marathon 1/4HP Ventilation Fan Electric Motor, 1625RPM
Click Image to Expand

Product ID: X024

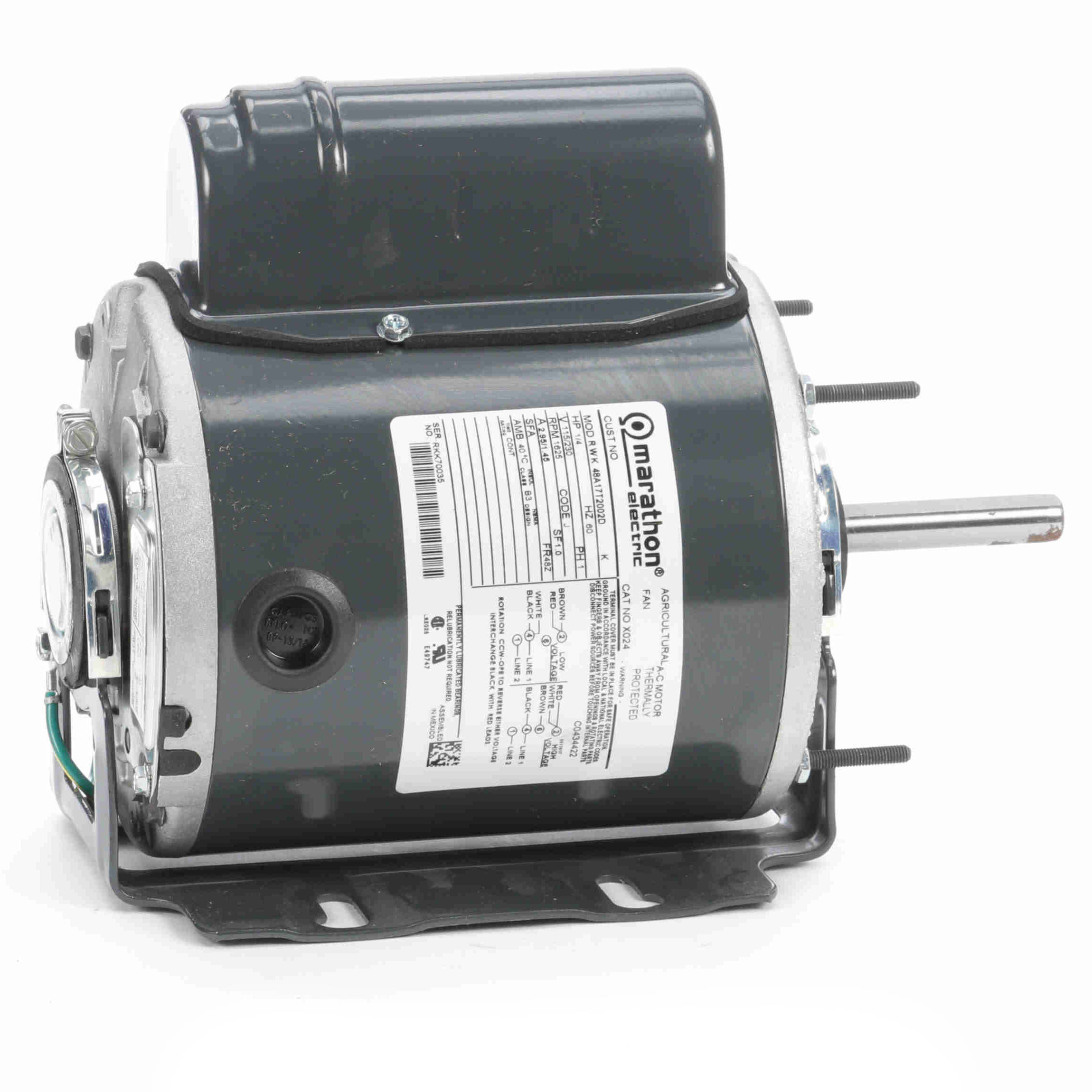

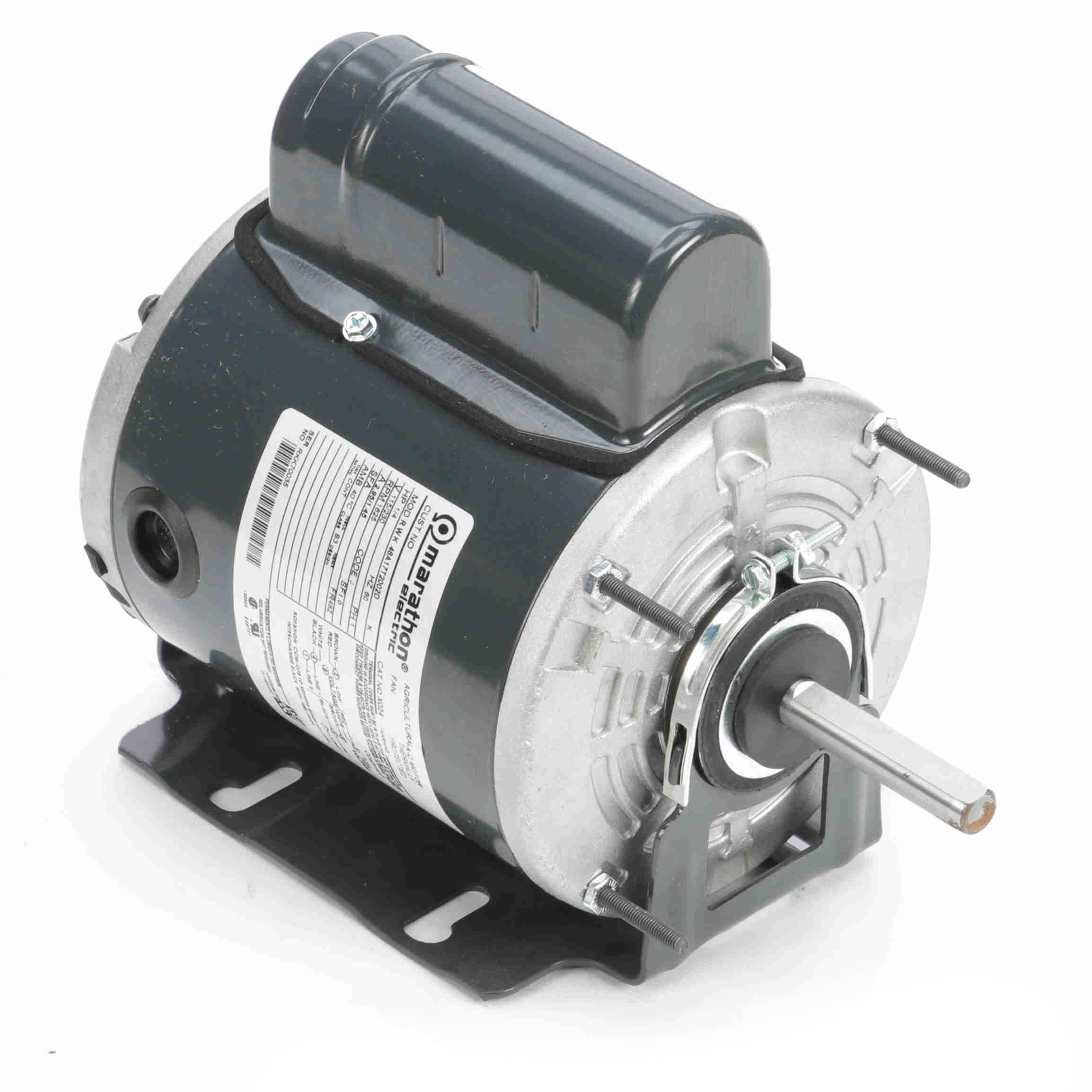

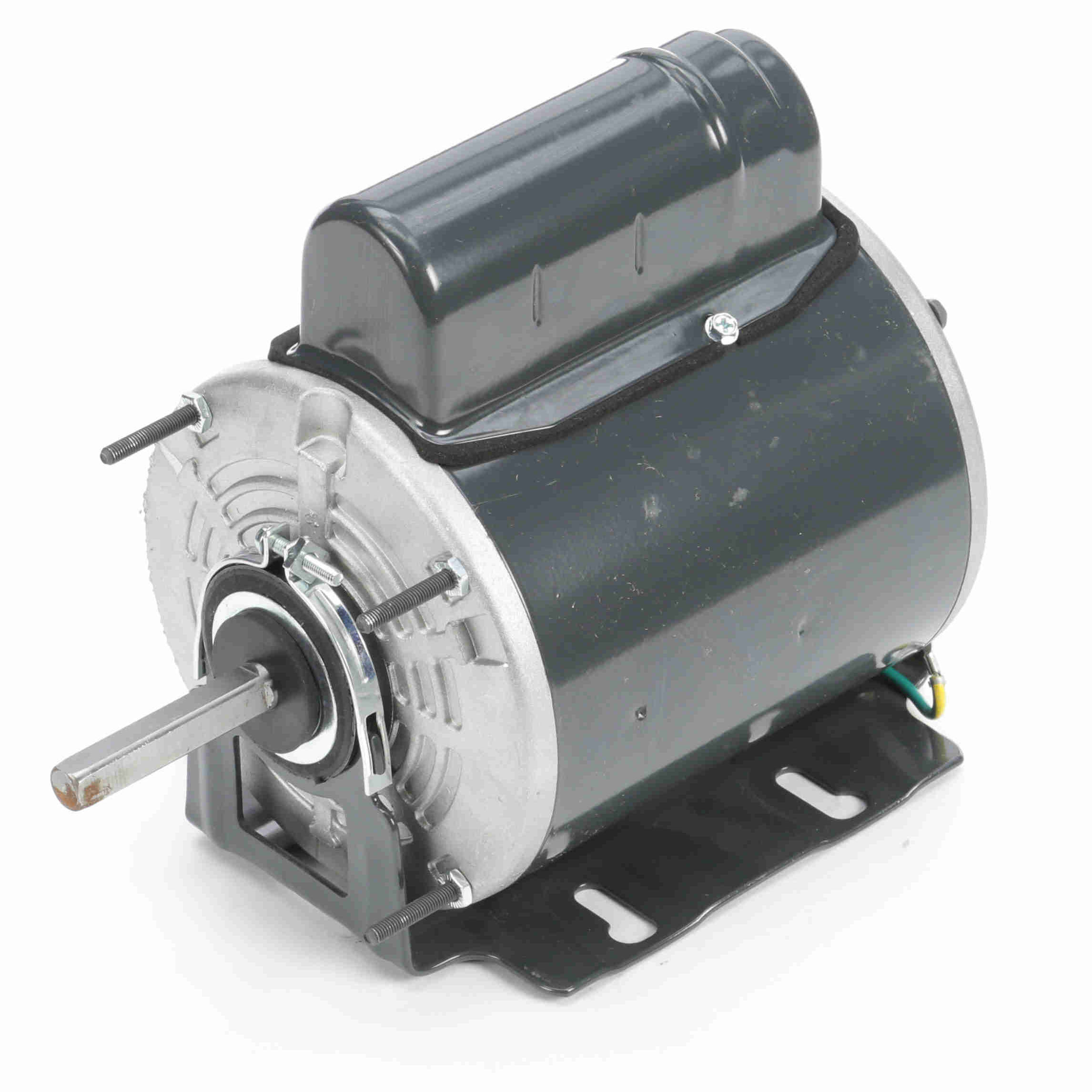

X024 Marathon 1/4HP Ventilation Fan Electric Motor, 1625RPM

MFG: Marathon Electric
MFG Part Number: X024

Selected accessories will also be added to cart
$299.97 / Each
Quantity:
TENV, 48Z Frame, 115/230VAC Single Phase 60Hz, 048A17T2002, Resilient Base - Extended Studs, Rolled Steel, 1/2" Shaft

Features

Features
  • Extended thru-bolts
  • Fully gasketed
  • 48/56 Frame mounting holes
  • Continuous duty
  • Automatic reset thermal protector
  • 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart

General Specifications

General Specifications
Model :048A17T2002 Catalog No :X024
Part Description :1/4,1625,TENV,48Z,1/60/115/230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.25 HP Output KW :0.19 kW
Frequency :60 Hz Voltage :115/230 V
Current :3.0/1.5 A Speed :1625 RPM
Service Factor :1 Phase :1
Efficiency :65.3 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :J Frame :48Z
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Resilient Base - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.09 in Frame Length :5.50 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 Only UPC :722856027993
Weight :18.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up8.406.76341.460.25
Locked-Rotor8.347.72341.460.25
Break-Down5.2740.601,4501.060.25
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.94
  • 0.105
  • 0.0
  • 48.6
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.02
  • 0.149
  • 32.0
  • 63.5
  • 1,786
  • 0.0
  • 3.01
  • 50 %
  • 1.14
  • 0.191
  • 49.3
  • 72.8
  • 1,776
  • 0.0
  • 5.97
  • 75 %
  • 1.29
  • 0.237
  • 59.4
  • 79.9
  • 1,765
  • 0.0
  • 8.98
  • 100 %
  • 1.47
  • 0.286
  • 65.3
  • 84.6
  • 1,752
  • 0.0
  • 12.00
  • 125 %
  • 1.68
  • 0.338
  • 69.4
  • 87.5
  • 1,738
  • 0.0
  • 15.20
  • 150 %
  • 1.92
  • 0.394
  • 71.4
  • 89.2
  • 1,722
  • 0.0
  • 18.40
  • 175 %
  • 2.18
  • 0.455
  • 72.1
  • 90.7
  • 1,704
  • 0.0
  • 21.70
  • 200 %
  • 2.49
  • 0.522
  • 71.6
  • 91.1
  • 1,683
  • 0.0
  • 25.00
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/4HP
Frame
48Z
Enclosure
TENV
Speed
1625RPM
Input Voltage
115VAC
Input Voltage
230VAC
