/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/00109ET3E182T-W22 WEG 1HP Severe Duty Electric Motor, 900RPM

Product ID: 00109ET3E182T-W22

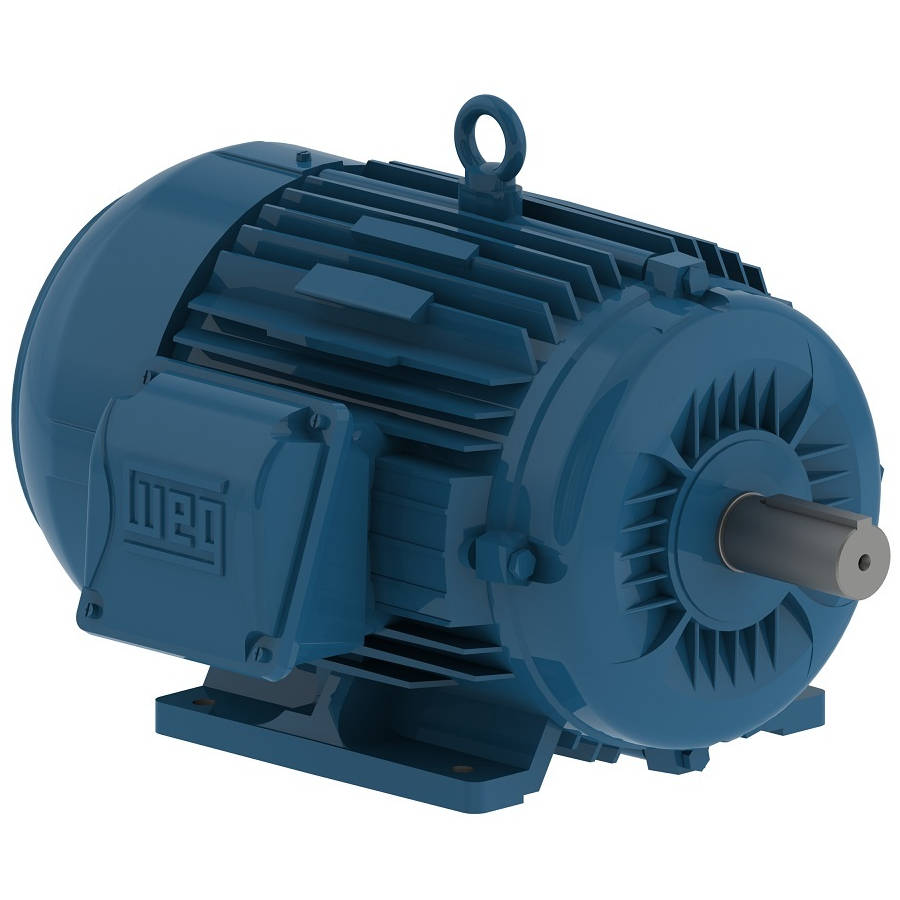

00109ET3E182T-W22 WEG 1HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00109ET3E182T-W22

Selected accessories will also be added to cart

$928.27 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 230/460/380VAC 60Hz 3 Phase, 12438228, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	875 rpm
Slip	2.78 %
Rated voltage	208-230/460 V
Rated current	5.09-4.60/2.30 A
L. R. Amperes	30.5-27.6/13.8 A
LRC	6.0x(Code M)
No load current	2.93-3.40/1.70 A
Rated torque	5.92 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	77.0	78.5

Power factor

50%	75%	100%
0.32	0.42	0.52

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	2.52 A
L. R. Amperes	15.1 A
LRC	6.0x(Code L)
No load current	1.67 A
Rated torque	7.25 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.7	75.5	75.5

Power factor

50%	75%	100%
0.38	0.50	0.60

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	2.56 A
L. R. Amperes	15.4 A
LRC	6.0x(Code M)
No load current	1.82 A
Rated torque	7.25 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.0	75.5	75.5

Power factor

50%	75%	100%
0.35	0.46	0.56

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	2.61 A
L. R. Amperes	15.7 A
LRC	6.0x(Code M)
No load current	1.94 A
Rated torque	7.20 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	74.0	75.5

Power factor

50%	75%	100%
0.33	0.43	0.53

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without

Bearing details

	Drive End	Non Drive End
Bearing type	6207 ZZ	6206 ZZ
Sealing	V'Ring	V'Ring
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

Foundation loads

Max. traction	Max. compression
103 lb	185 lb

Electric Motors

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	875 rpm
Slip	2.78 %
Rated voltage	208-230/460 V
Rated current	5.09-4.60/2.30 A
L. R. Amperes	30.5-27.6/13.8 A
LRC	6.0x(Code M)
No load current	2.93-3.40/1.70 A
Rated torque	5.92 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	77.0	78.5

Power factor

50%	75%	100%
0.32	0.42	0.52

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	2.52 A
L. R. Amperes	15.1 A
LRC	6.0x(Code L)
No load current	1.67 A
Rated torque	7.25 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.7	75.5	75.5

Power factor

50%	75%	100%
0.38	0.50	0.60

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	2.56 A
L. R. Amperes	15.4 A
LRC	6.0x(Code M)
No load current	1.82 A
Rated torque	7.25 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.0	75.5	75.5

Power factor

50%	75%	100%
0.35	0.46	0.56

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	2.61 A
L. R. Amperes	15.7 A
LRC	6.0x(Code M)
No load current	1.94 A
Rated torque	7.20 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	81.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	74.0	75.5

Power factor

50%	75%	100%
0.33	0.43	0.53

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
