/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount/00109ST3QIE182T-W22 WEG 1HP Severe Duty Electric Motor, 900RPM

Product ID: 00109ST3QIE182T-W22

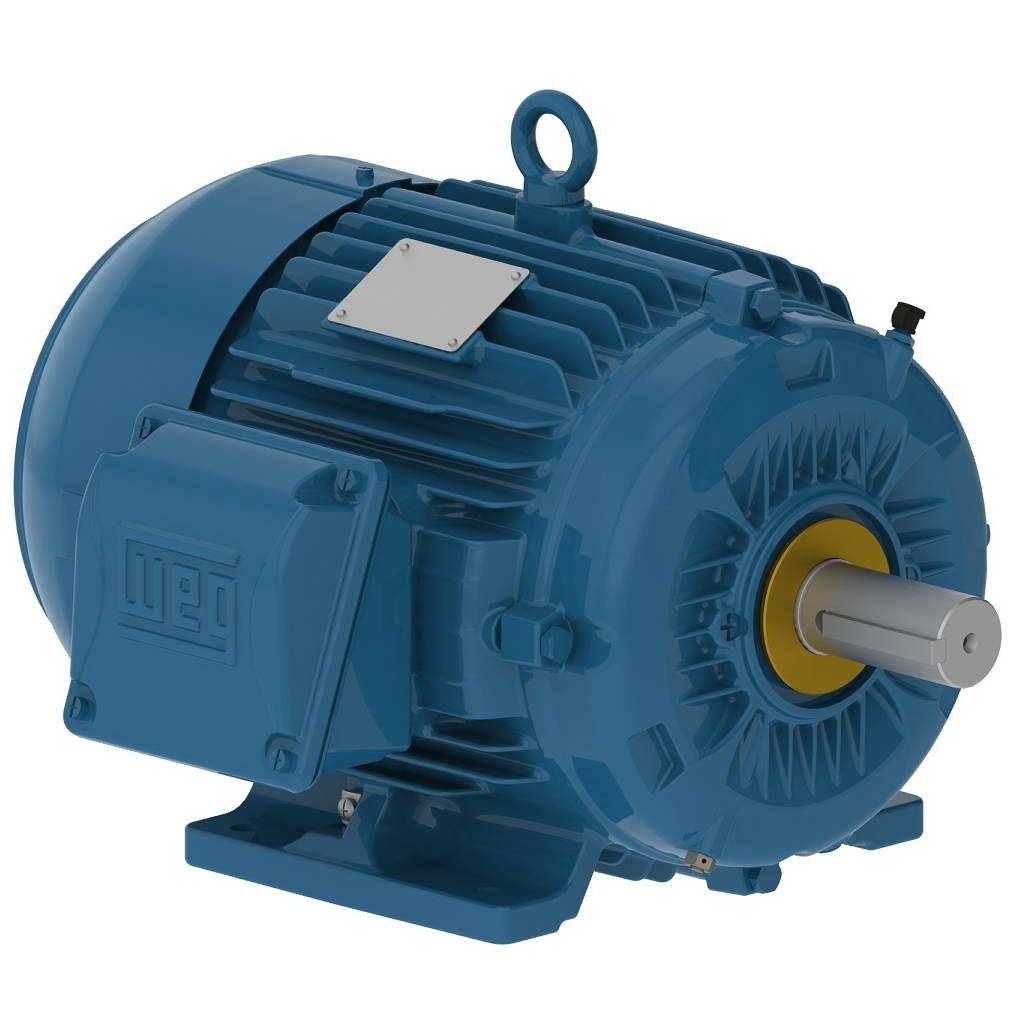

00109ST3QIE182T-W22 WEG 1HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00109ST3QIE182T-W22

Selected accessories will also be added to cart

$1,785.34 / Each

Quantity:

IC411 - TEFC, IP55, 182T/184T Frame, 460VAC 60Hz 3 Phase, 13205894, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	875 rpm
Slip	2.78 %
Rated voltage	460 V
Rated current	2.30 A
L. R. Amperes	13.8 A
LRC	6.0x(Code M)
No load current	1.70 A
Rated torque	6.00 ft.lb
Locked rotor torque	300 %
Breakdown torque	350 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	92.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	77.0	78.5

Power factor

50%	75%	100%
0.32	0.42	0.52

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	380 V
Rated current	2.52 A
L. R. Amperes	15.1 A
LRC	6.0x(Code L)
No load current	1.67 A
Rated torque	7.34 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	92.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.7	75.5	75.5

Power factor

50%	75%	100%
0.38	0.50	0.60

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	2.56 A
L. R. Amperes	15.4 A
LRC	6.0x(Code M)
No load current	1.82 A
Rated torque	7.34 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	92.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.0	75.5	75.5

Power factor

50%	75%	100%
0.35	0.46	0.56

Frame	182/4T
Output	1 HP (0.75 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	2.61 A
L. R. Amperes	15.7 A
LRC	6.0x(Code N)
No load current	1.94 A
Rated torque	7.29 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.3991 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	92.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	74.0	75.5

Power factor

50%	75%	100%
0.33	0.43	0.53

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
Fan material	Conductive Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Inpro/Seal
DE bearing Seal	Inpro/Seal
