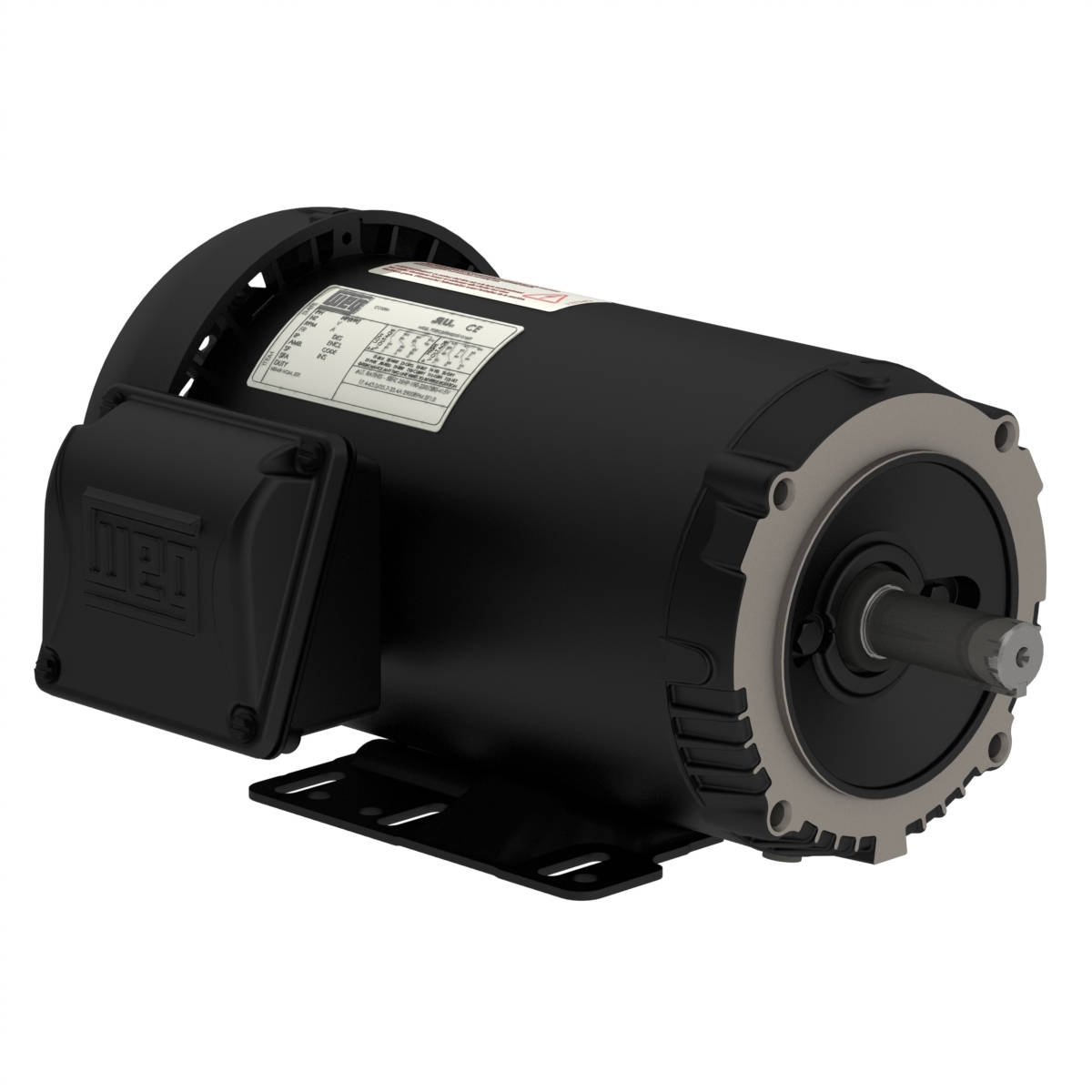

00112ET3E145TC-S WEG 1HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00112ET3E145TC-S

00112ET3E145TC-S WEG 1HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3E145TC-S

Selected accessories will also be added to cart
$415.50 / Each
Quantity:
IC411 - TEFC, IP55, 143TC/145TC Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 12675381, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 7/8" Keyed Shaft

Electric Motors

Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1145 rpm
Slip 4.58 %
Rated voltage 230/460 V
Rated current 3.16/1.58 A
L. R. Amperes 18.3/9.16 A
LRC 5.8x(Code J)
No load current 2.03/1.01 A
Rated torque 4.59 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 39.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  82.5  82.5

Power factor

50% 75% 100%
0.50  0.63  0.72
Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 915 rpm
Slip 8.50 %
Rated voltage 190/380 V
Rated current 3.74/1.87 A
L. R. Amperes 16.5/8.23 A
LRC 4.4x(Code F)
No load current 2.00/1.00 A
Rated torque 5.74 ft.lb
Locked rotor torque 170 %
Breakdown torque 200 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 39.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.1  80.1  77.3

Power factor

50% 75% 100%
0.58  0.71  0.79
Frame 143/5TC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 930 rpm
Slip 7.00 %
Rated voltage 220/415 V
Rated current 3.41/1.81 A
L. R. Amperes 16.7/8.87 A
LRC 4.9x(Code G)
No load current 2.02/1.07 A
Rated torque 5.65 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1597 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ 39.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
79.4  80.4  78.6

Power factor

50% 75% 100%
0.54  0.68  0.76

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
