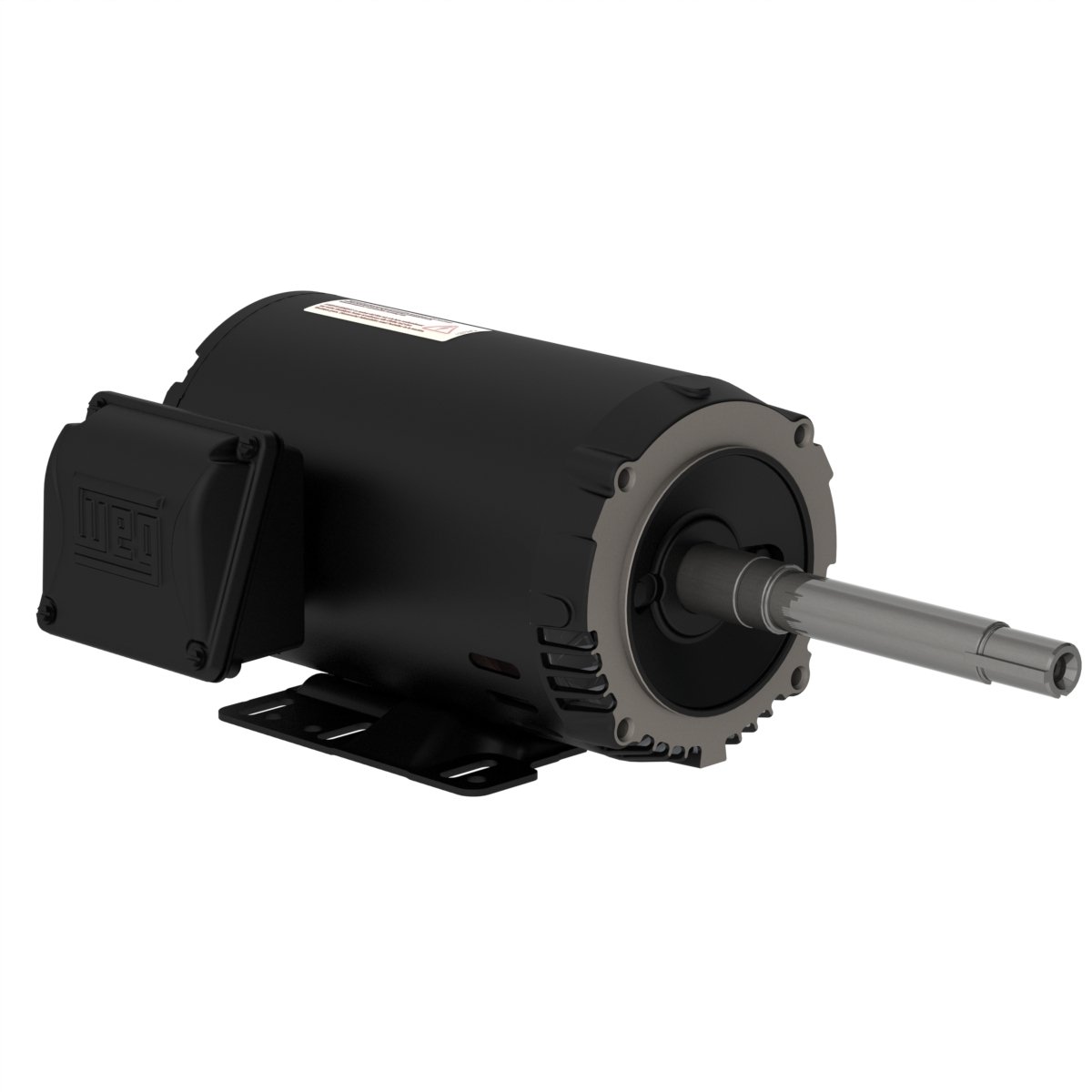

00112OT3E145JP-S WEG 1HP JP Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00112OT3E145JP-S

00112OT3E145JP-S WEG 1HP JP Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112OT3E145JP-S

Selected accessories will also be added to cart
$489.50 / Each
Quantity:
IC01 - ODP, 143JP/145JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 12682731, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1150 rpm
Slip 4.17 %
Rated voltage 208-230/460 V
Rated current 3.65-3.30/1.65 A
L. R. Amperes 22.3-20.1/10.1 A
LRC 6.1x(Code K)
No load current 1.13-2.26/1.13 A
Rated torque 4.51 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
78.5  81.5  82.5

Power factor

50% 75% 100%
0.47  0.60  0.69
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 945 rpm
Slip 5.50 %
Rated voltage 380 V
Rated current 1.56 A
L. R. Amperes 8.75 A
LRC 5.6x(Code J)
No load current 1.11 A
Rated torque 4.11 ft.lb
Locked rotor torque 260 %
Breakdown torque 290 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.8  79.4  79.3

Power factor

50% 75% 100%
0.46  0.59  0.69
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 400 V
Rated current 1.57 A
L. R. Amperes 9.61 A
LRC 6.1x(Code K)
No load current 1.20 A
Rated torque 4.09 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.9  78.5  79.3

Power factor

50% 75% 100%
0.42  0.55  0.65
Frame 143/5JP
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 415 V
Rated current 1.60 A
L. R. Amperes 9.75 A
LRC 6.1x(Code L)
No load current 1.29 A
Rated torque 4.07 ft.lb
Locked rotor torque 340 %
Breakdown torque 370 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
73.3  77.6  79.0

Power factor

50% 75% 100%
0.40  0.52  0.62
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 380 V
Rated current 1.91 A
L. R. Amperes 8.79 A
LRC 4.6x(Code G)
No load current 1.11 A
Rated torque 5.63 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
78.8  79.5  77.3

Power factor

50% 75% 100%
0.55  0.69  0.77
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 930 rpm
Slip 7.00 %
Rated voltage 400 V
Rated current 1.87 A
L. R. Amperes 9.54 A
LRC 5.1x(Code H)
No load current 1.20 A
Rated torque 5.57 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.7  79.4  78.2

Power factor

50% 75% 100%
0.51  0.65  0.74
Frame 143/5JP
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 415 V
Rated current 1.84 A
L. R. Amperes 9.75 A
LRC 5.3x(Code H)
No load current 1.29 A
Rated torque 5.51 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1419 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to 40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 47.0 dB(A)
Approx. weight³ lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.6  79.1  78.6

Power factor

50% 75% 100%
0.48  0.62  0.72

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C3)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Resilient Base Without
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Close Coupled Pump
Enclosure
ODP
Horsepower
1HP
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
143JP
Frame
145JP
