/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/00118ES1RFD56-S WEG 1HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00118ES1RFD56-S

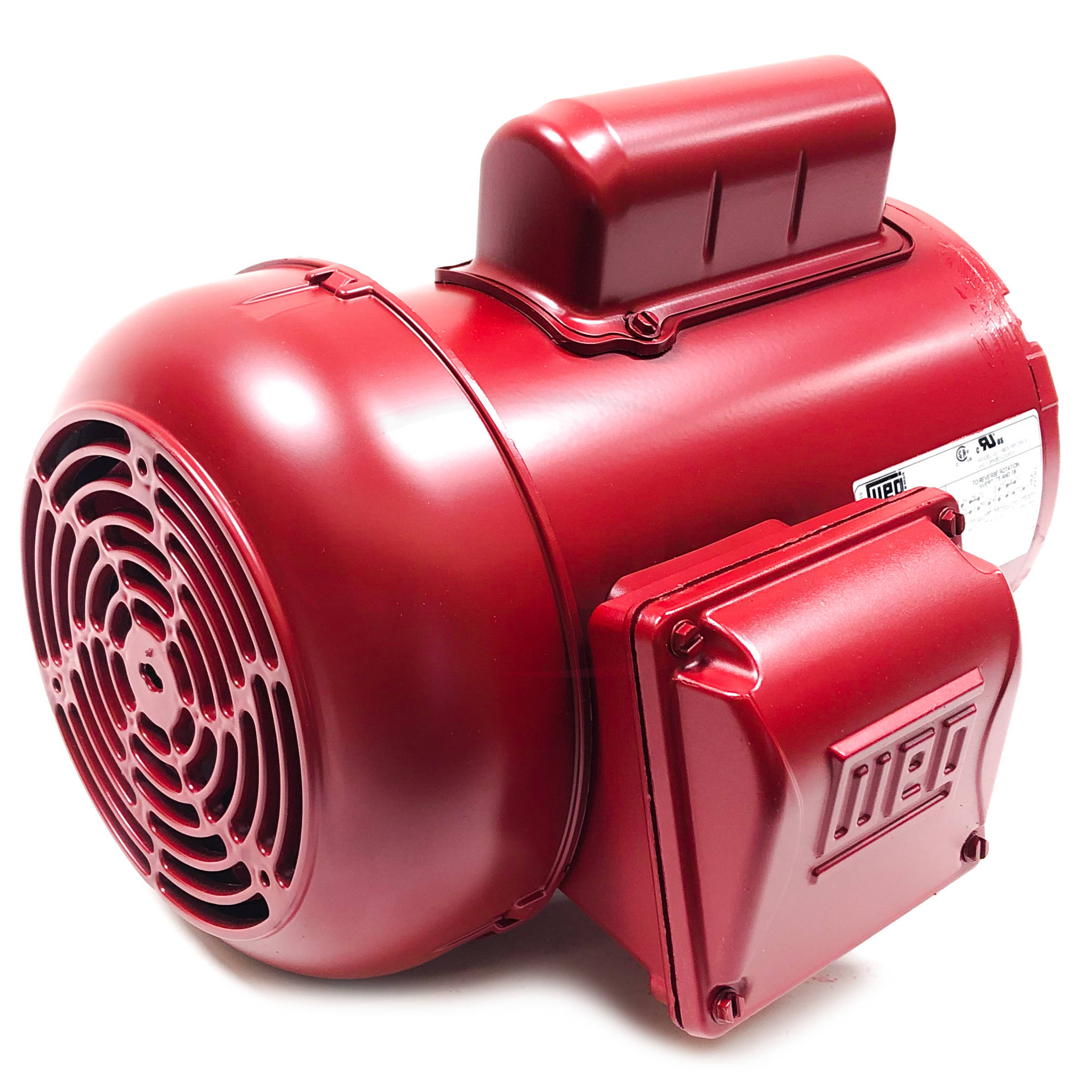

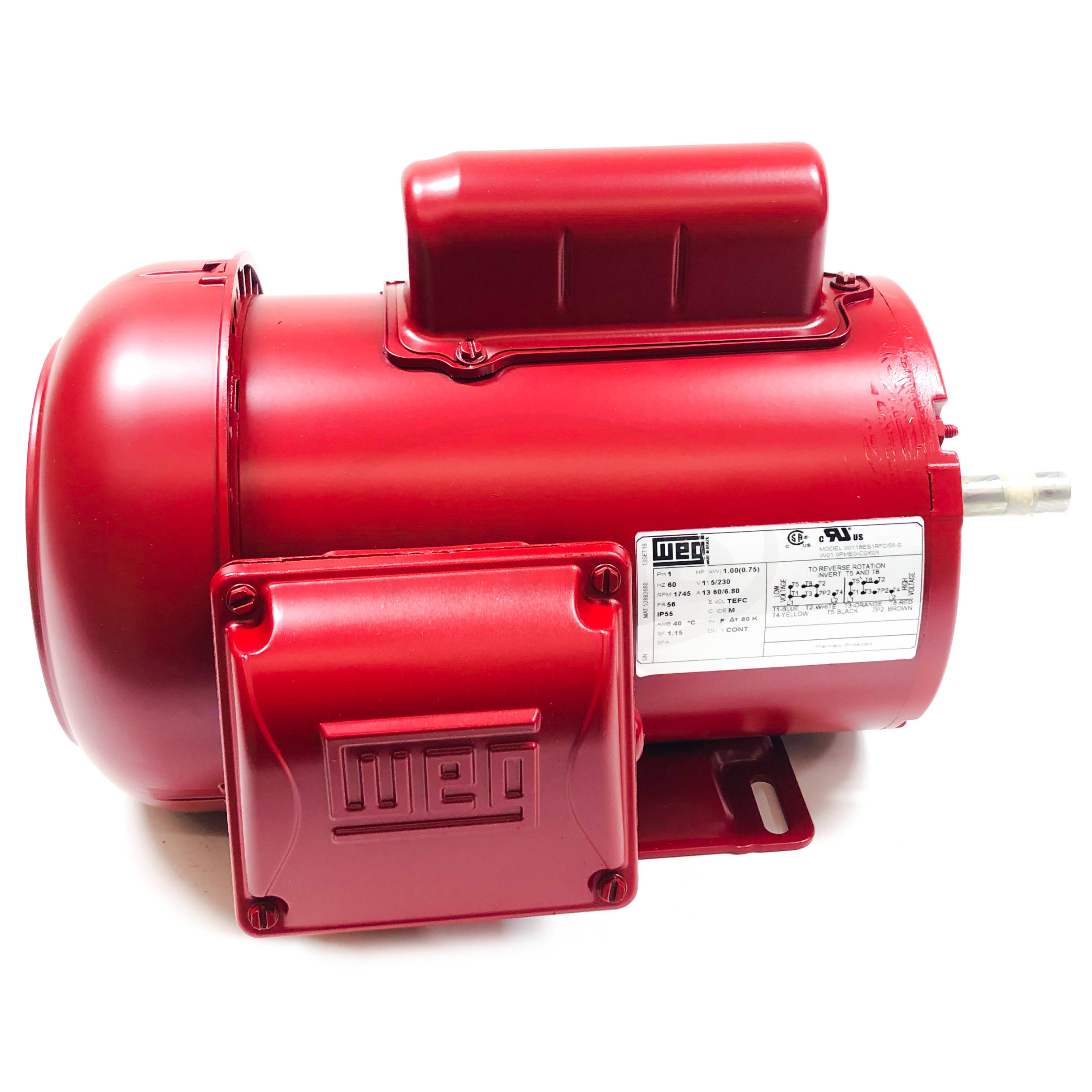

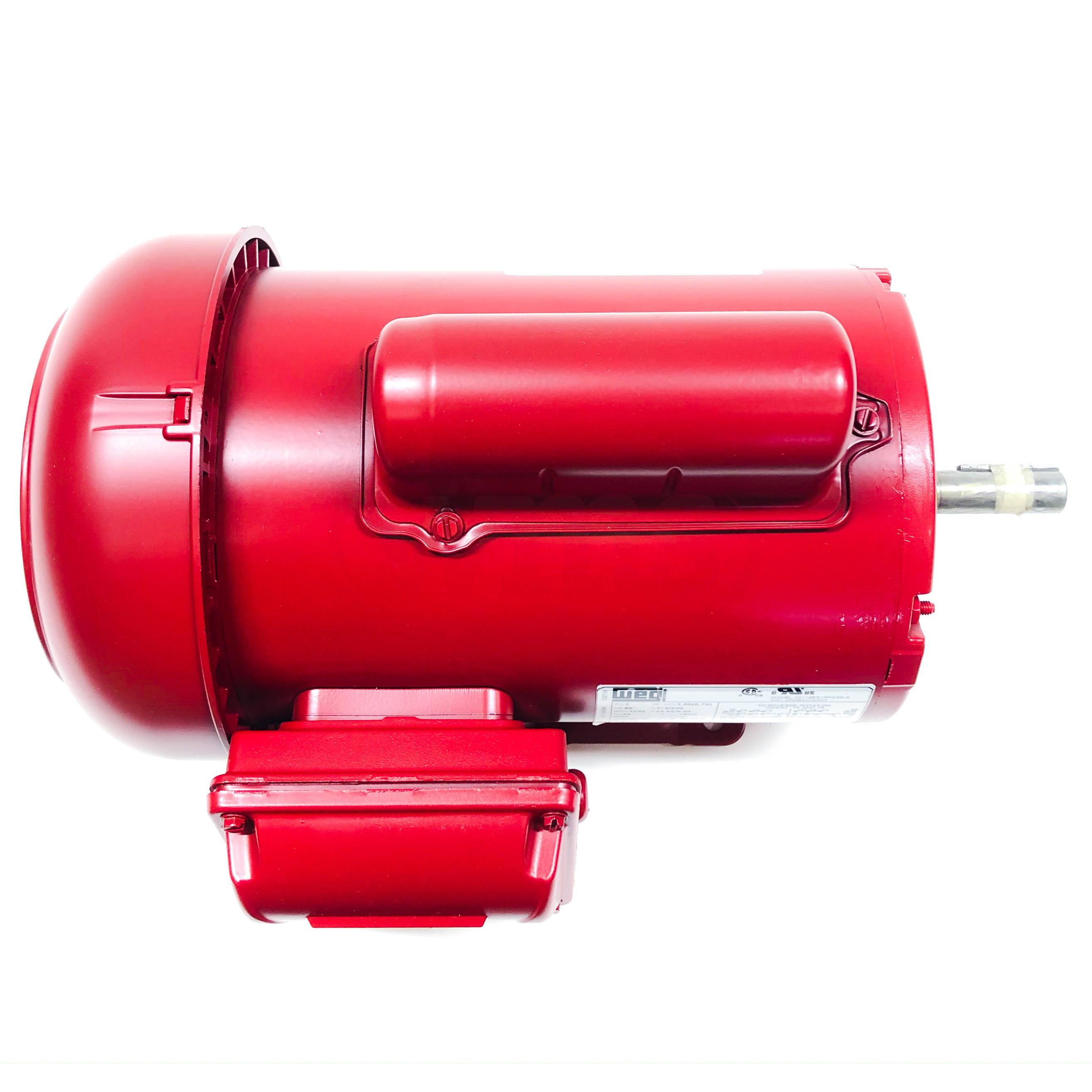

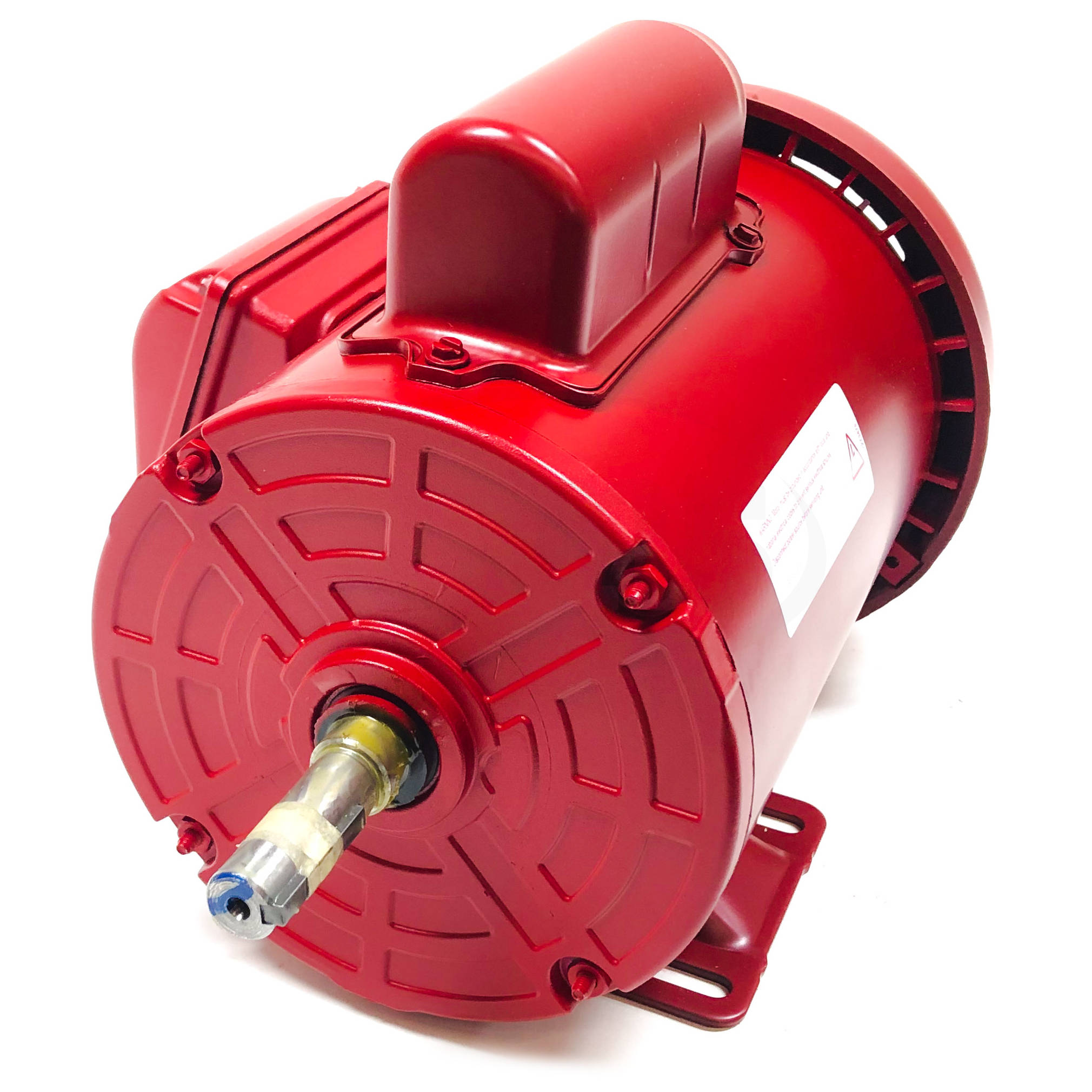

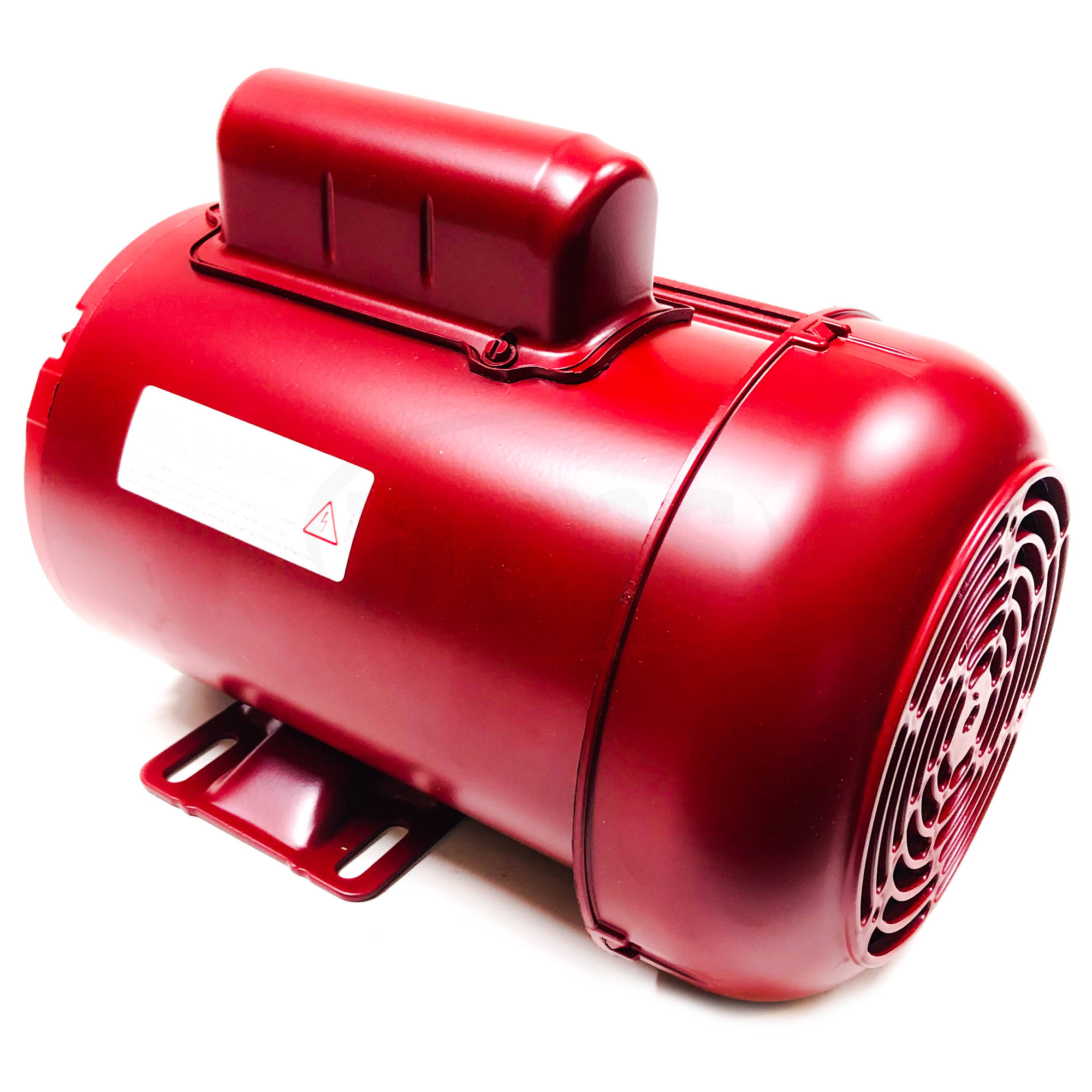

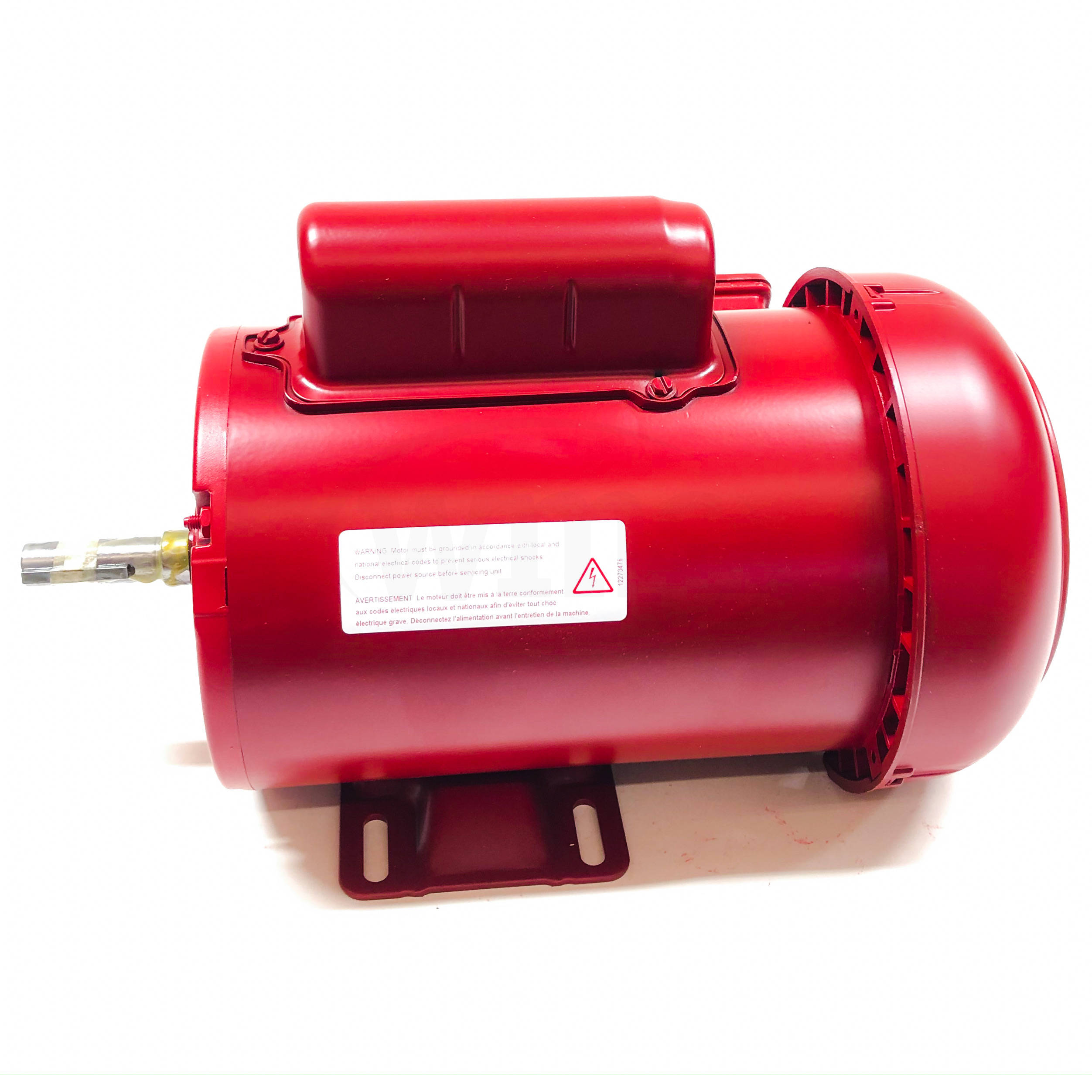

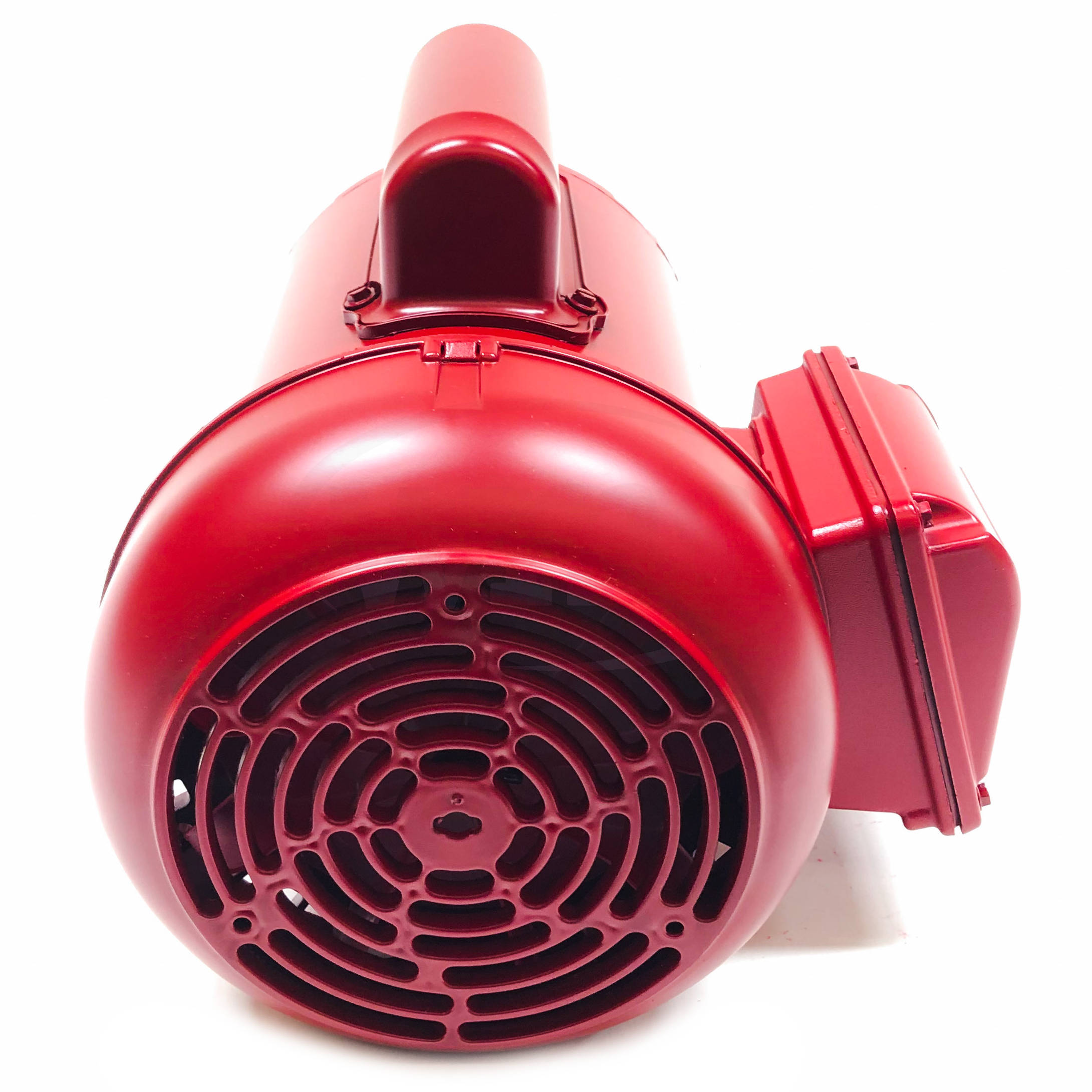

00118ES1RFD56-S WEG 1HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1RFD56-S

Selected accessories will also be added to cart
$295.50 / Each
Quantity:
IC411 - TEFC, 56 Frame, 115/230VAC Single Phase 60Hz, 12882660, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/230 V
Rated current 13.6/6.80 A
L. R. Amperes 91.1/45.6 A
LRC 6.7x(Code M)
No load current 9.60/4.80 A
Rated torque 2.97 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 37.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  68.0  71.0

Power factor

50% 75% 100%
0.48  0.60  0.68

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3003 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
