/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Farm Duty - General Purpose/00118ES1RFD56C-S WEG 1HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00118ES1RFD56C-S

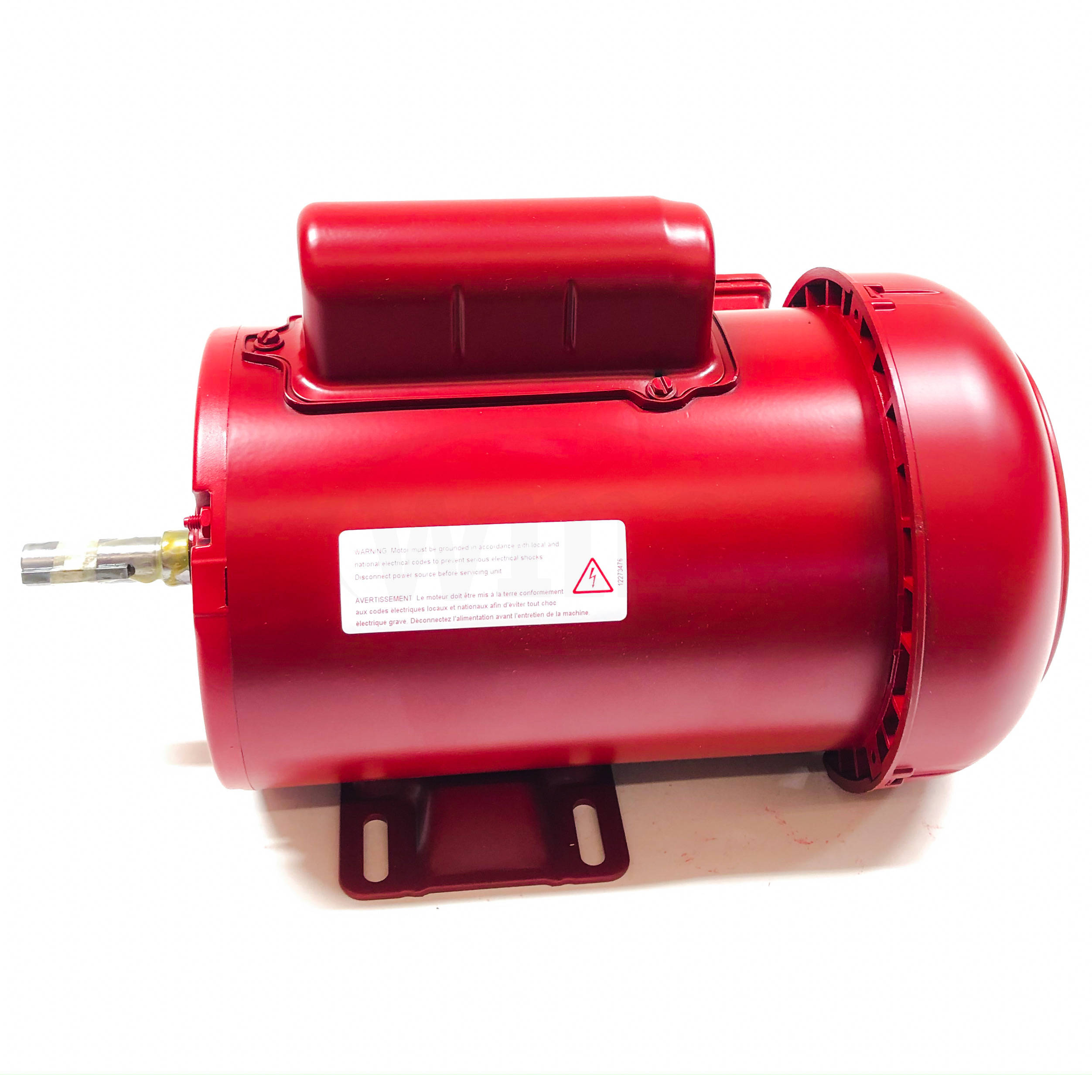

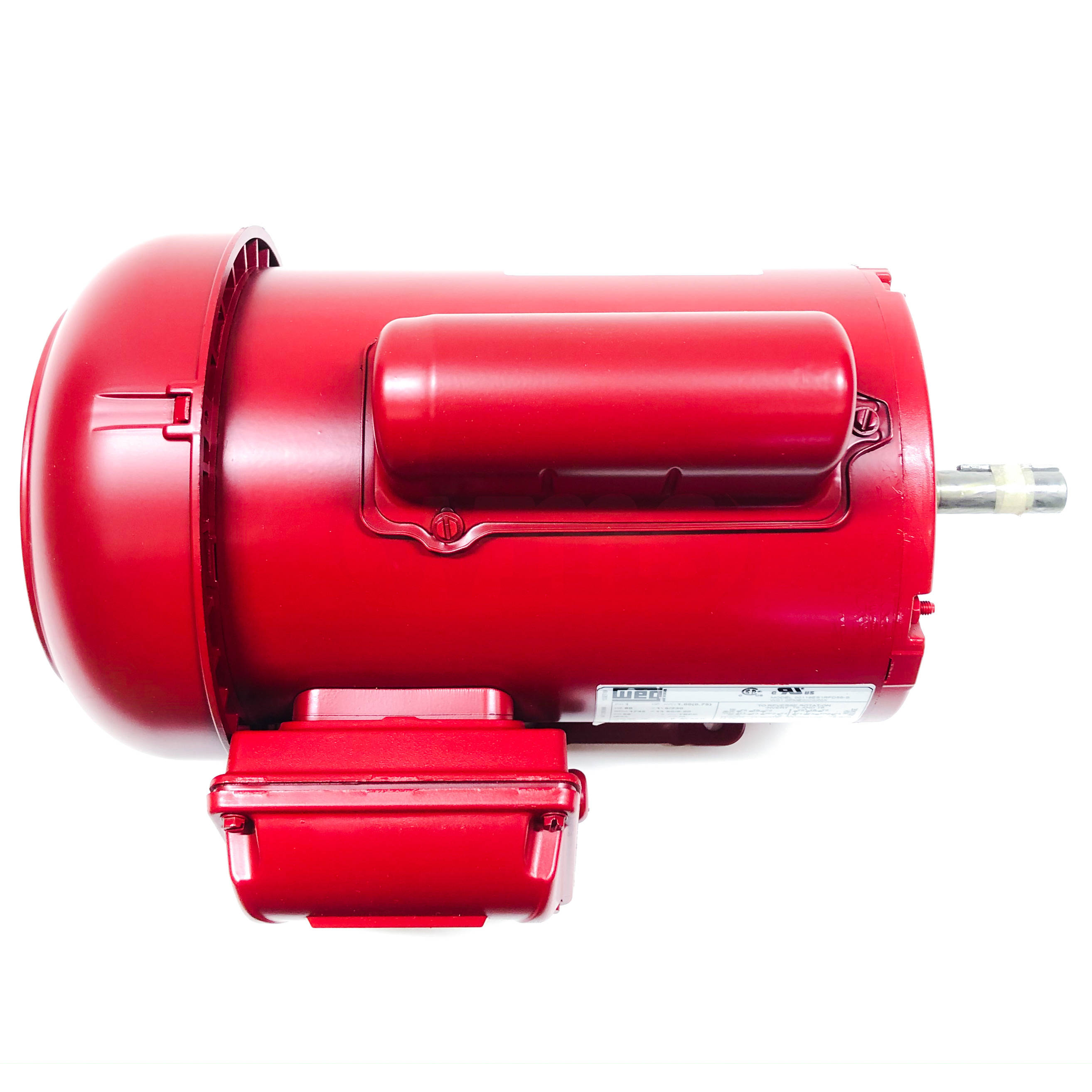

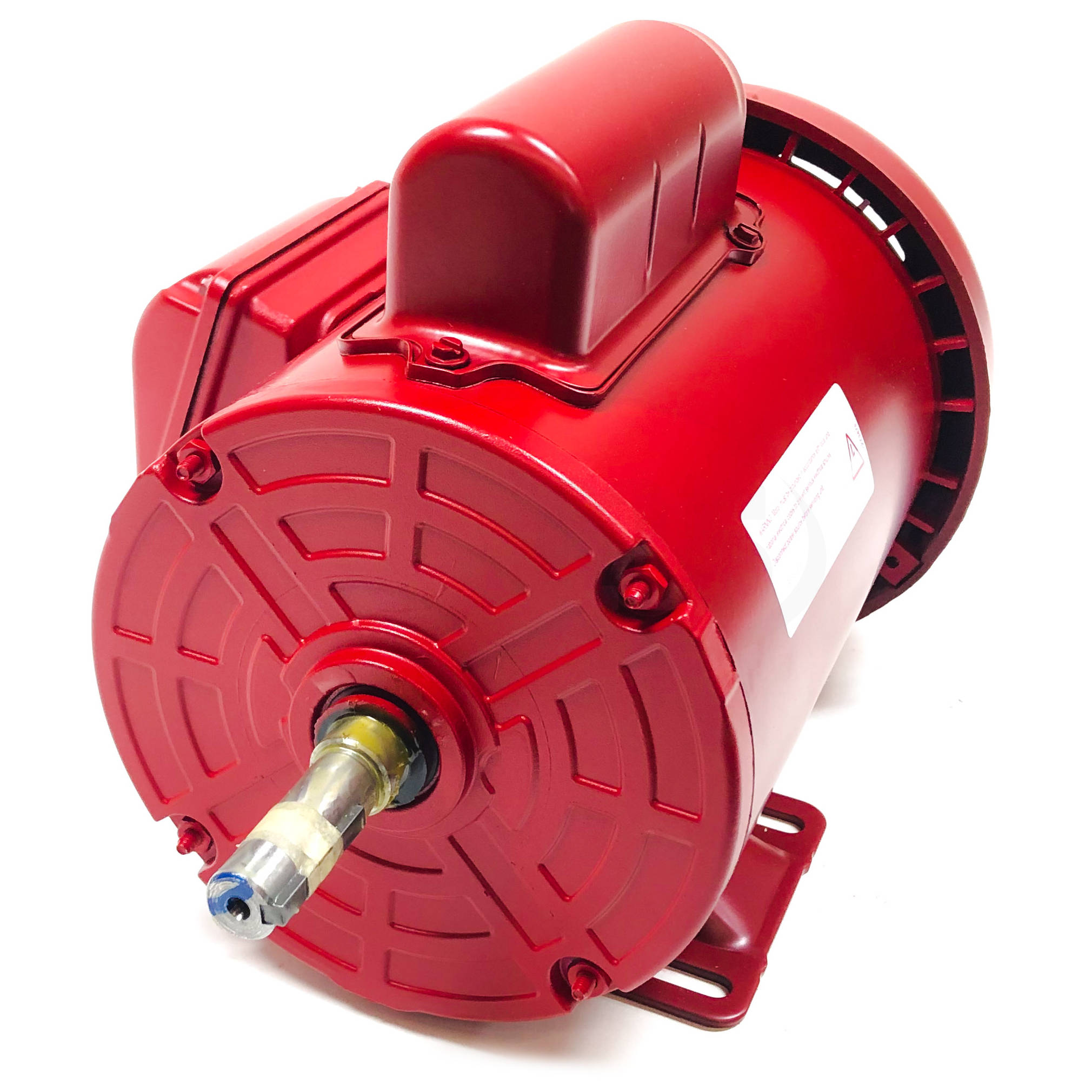

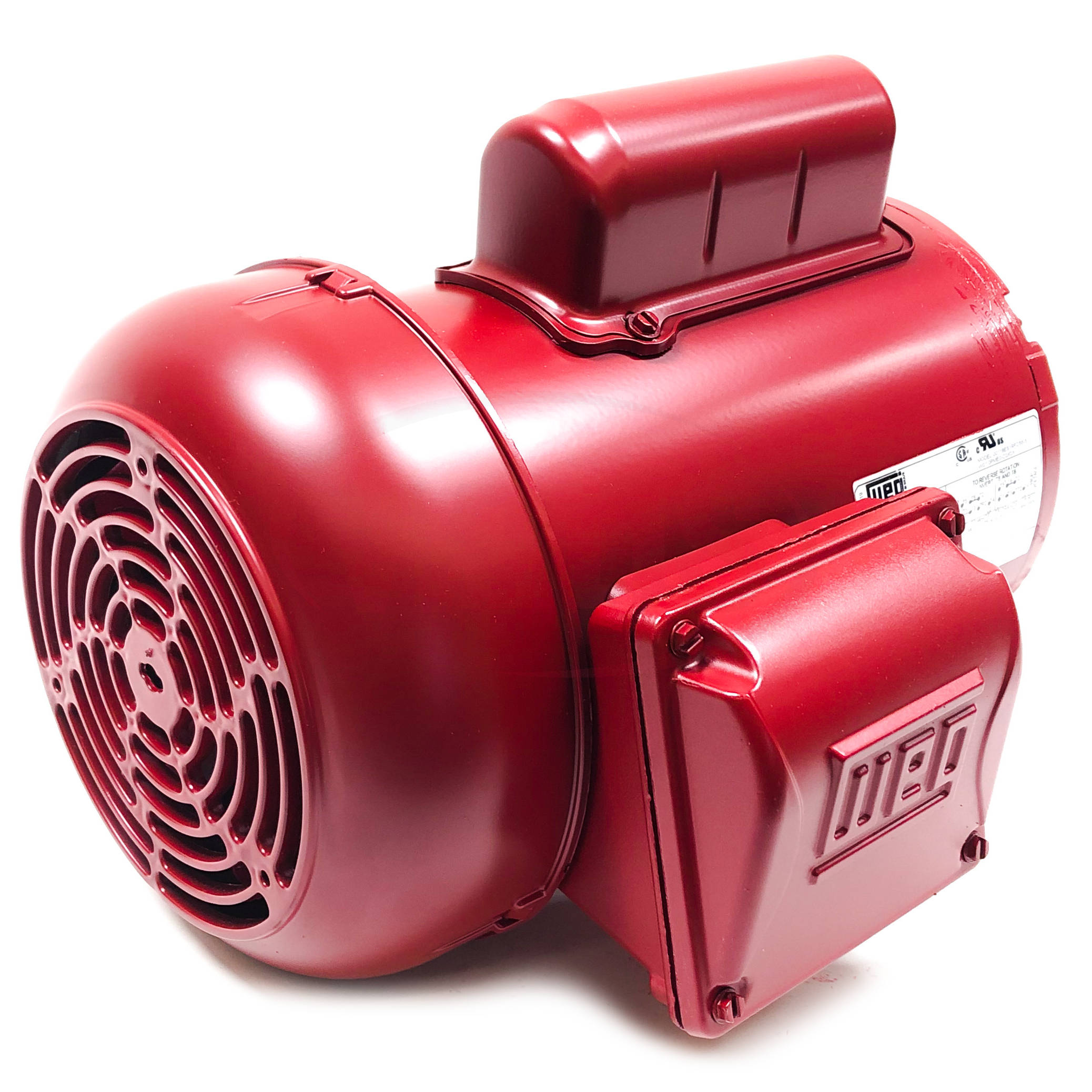

00118ES1RFD56C-S WEG 1HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1RFD56C-S

Selected accessories will also be added to cart
$403.17 / Each
Quantity:
IC411 - TEFC, 56 Frame, 115/230VAC Single Phase 60Hz, 12882660, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage115/230 V
Rated current13.6/6.80 A
L. R. Amperes91.1/45.6 A
LRC6.7x(Code M)
No load current9.60/4.80 A
Rated torque2.97 ft.lb
Locked rotor torque280 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.1037 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Approx. weight³37.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
62.068.071.0

Power factor

50%75%100%
0.480.600.68

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
1HP
Frame
56
