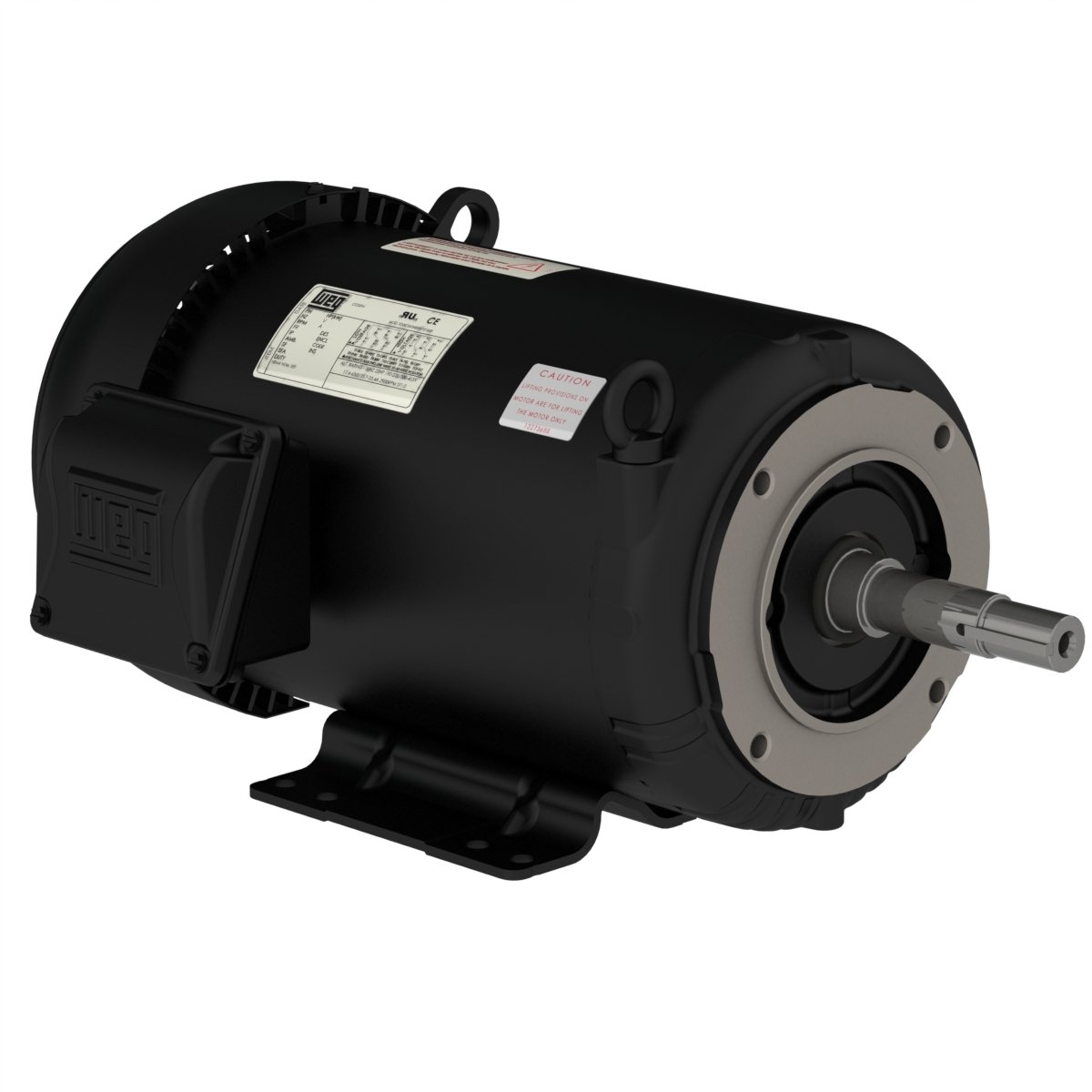

00152ET3E182JM-S WEG 1.5HP JM Close Coupled Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00152ET3E182JM-S

00152ET3E182JM-S WEG 1.5HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152ET3E182JM-S

Selected accessories will also be added to cart
$681.75 / Each
Quantity:
IC411 - TEFC, 182JM/184JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13374122, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 4.91-4.44/2.22 A
L. R. Amperes 33.9-30.6/15.3 A
LRC 6.9x(Code K)
No load current 2.35-2.73/1.36 A
Rated torque 6.64 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 99s (cold) 55s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 77.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  86.5  87.5

Power factor

50% 75% 100%
0.50  0.63  0.71
Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 190/380 V
Rated current 5.18/2.59 A
L. R. Amperes 29.5/14.8 A
LRC 5.7x(Code H)
No load current 2.69/1.34 A
Rated torque 8.14 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 77.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.2  85.6  84.9

Power factor

50% 75% 100%
0.58  0.70  0.76
Frame 182/4JM
Output 1.5 HP (1.1 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 220/415 V
Rated current 4.70/2.49 A
L. R. Amperes 31.0/16.4 A
LRC 6.6x(Code J)
No load current 2.90/1.54 A
Rated torque 8.05 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.2800 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 77.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.9  85.3  85.5

Power factor

50% 75% 100%
0.51  0.63  0.72

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
