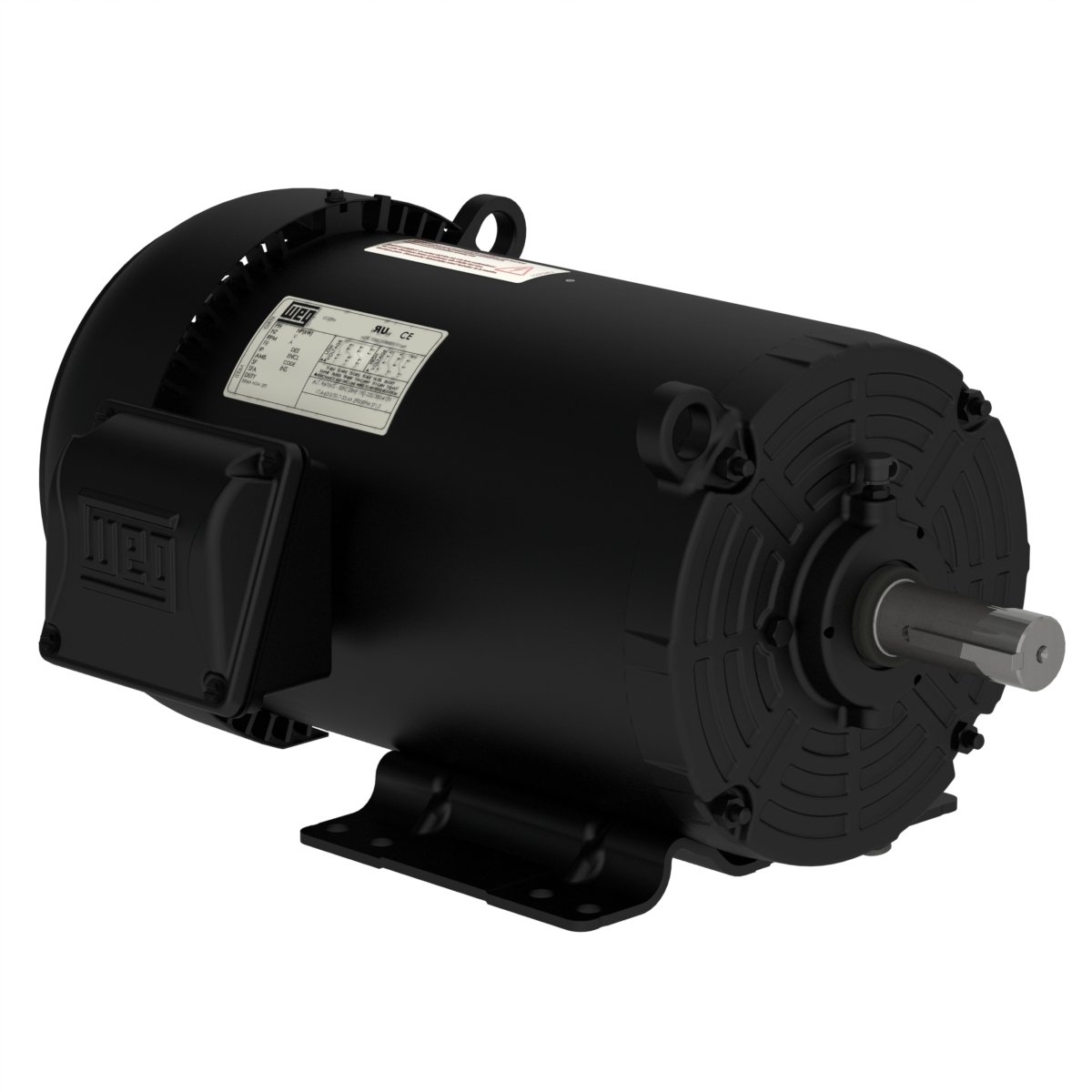

00152ET3H182T-S WEG 1.5HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00152ET3H182T-S

00152ET3H182T-S WEG 1.5HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152ET3H182T-S

Selected accessories will also be added to cart
$583.84 / Each
Quantity:
IC411 - TEFC, 182T/184T Frame, 575VAC 3-Phase 60Hz, 12675411, Foot Mount, Rolled Steel, Premium Efficiency, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4T
Output1.5 HP (1.1 kW)
Number of Poles6
Frequency60 Hz
Rated speed1170 rpm
Slip2.50 %
Rated voltage575 V
Rated current1.78 A
L. R. Amperes12.3 A
LRC6.9x(Code K)
No load current1.09 A
Rated torque6.64 ft.lb
Locked rotor torque240 %
Breakdown torque340 %
Locked rotor time99s (cold) 55s (hot)
Moment of inertia (J)0.2800 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?69.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  86.5  87.5

Power factor

50%75%100%
0.50  0.63  0.71

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
575VAC
Frame
182T
Frame
184T
