/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/00158ES1RFD145T-S WEG 1.5HP Farm Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00158ES1RFD145T-S

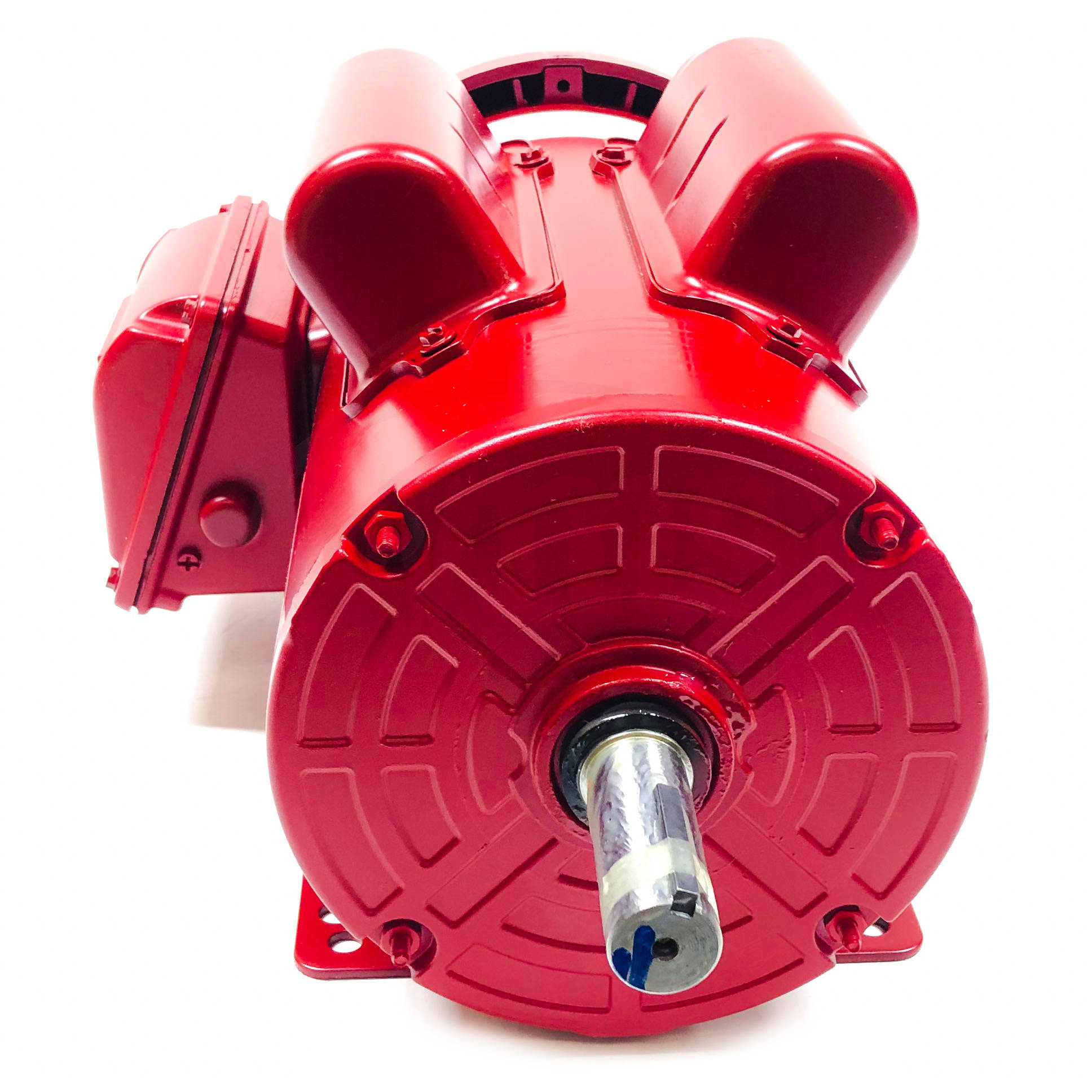

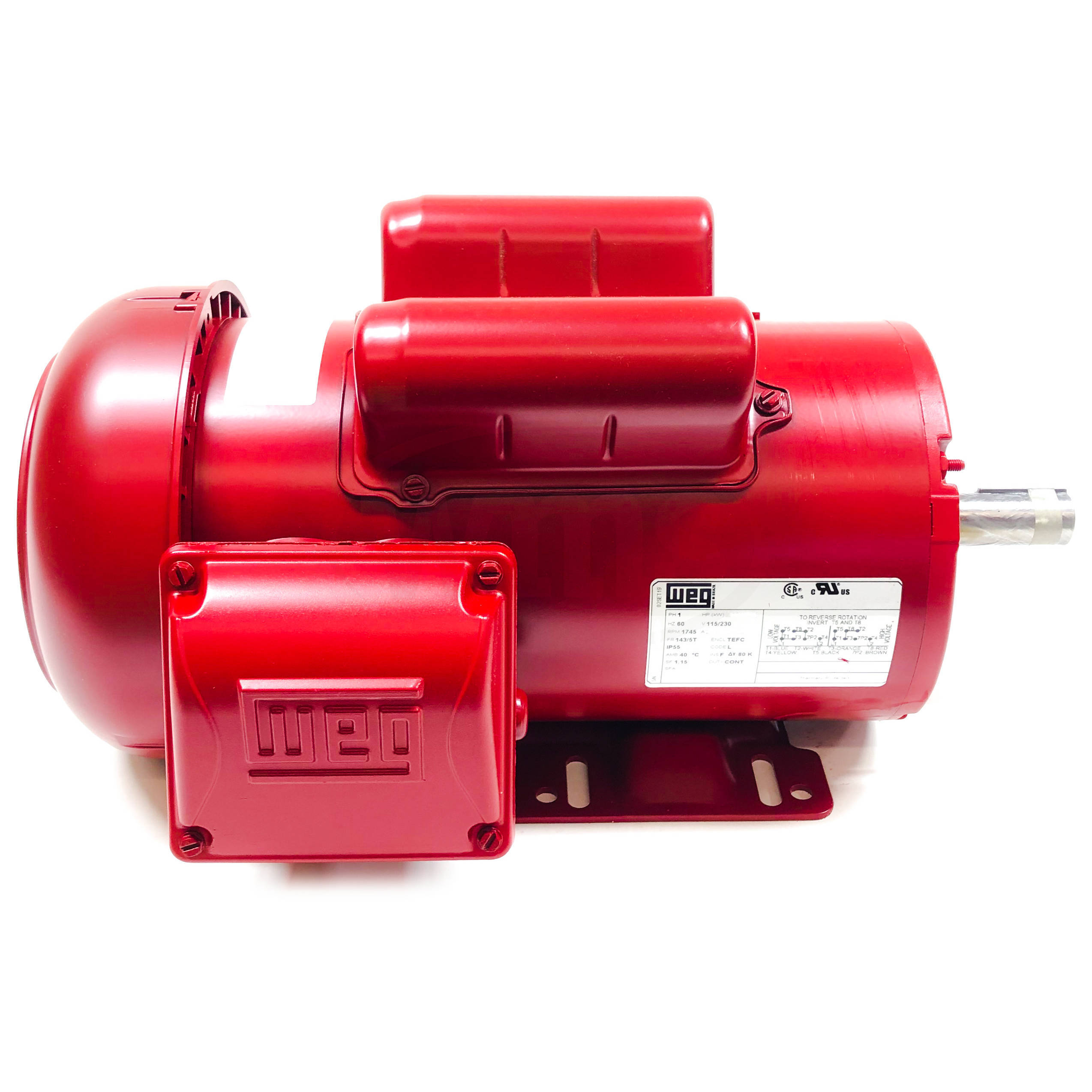

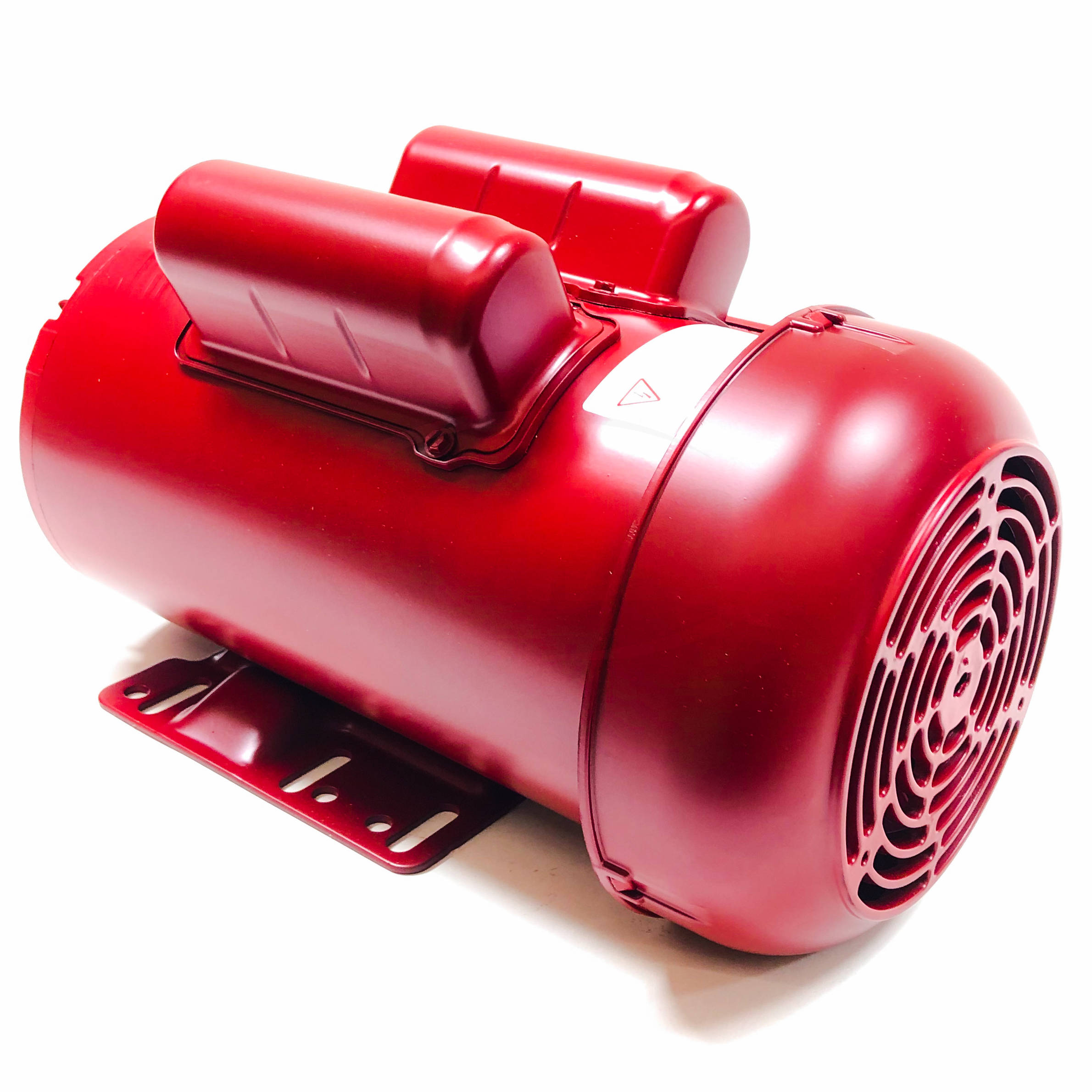

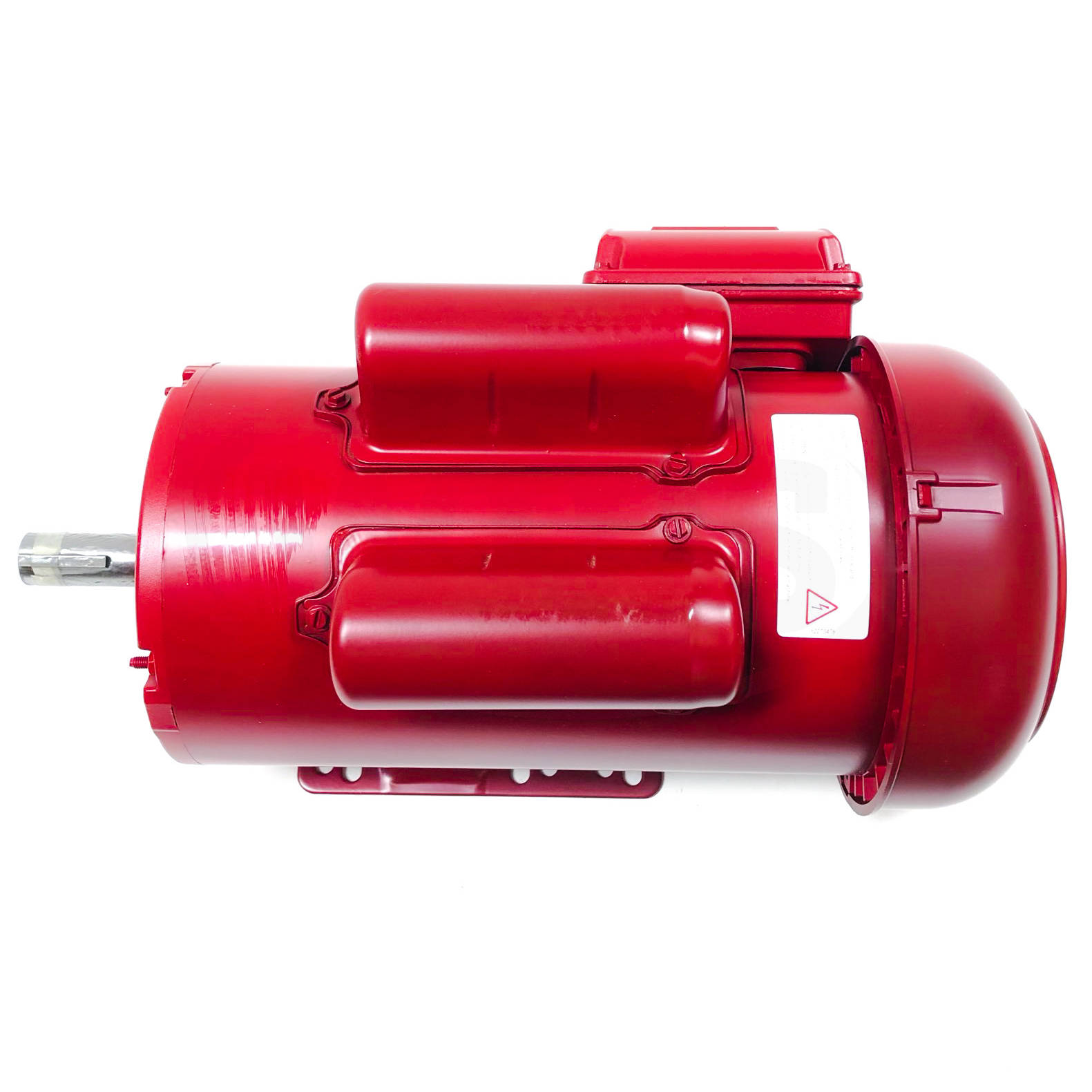

00158ES1RFD145T-S WEG 1.5HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ES1RFD145T-S

Selected accessories will also be added to cart
$378.00 / Each
Quantity:
IC411-TEFC, IP55, 143T/145T Frame, 115/230VAC Single Phase 60Hz, 14809122, Foot Mounted, Rolled Steel, 7/8" Shaft

Electric Motors

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/230 V
Rated current 15.0/7.48 A
L. R. Amperes 120/59.8 A
LRC 8.0x(Code L)
No load current 7.20/3.60 A
Rated torque 4.45 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1426 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 46.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
69.0  75.0  77.0

Power factor

50% 75% 100%
0.68  0.78  0.83

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 2RS   6203 2RS
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
81 lb  128 lb
