/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/JM, TEFC/00158ET3H145JM-S WEG 1.5HP JM Close Coupled Pump Electric Motor, 1800RPM

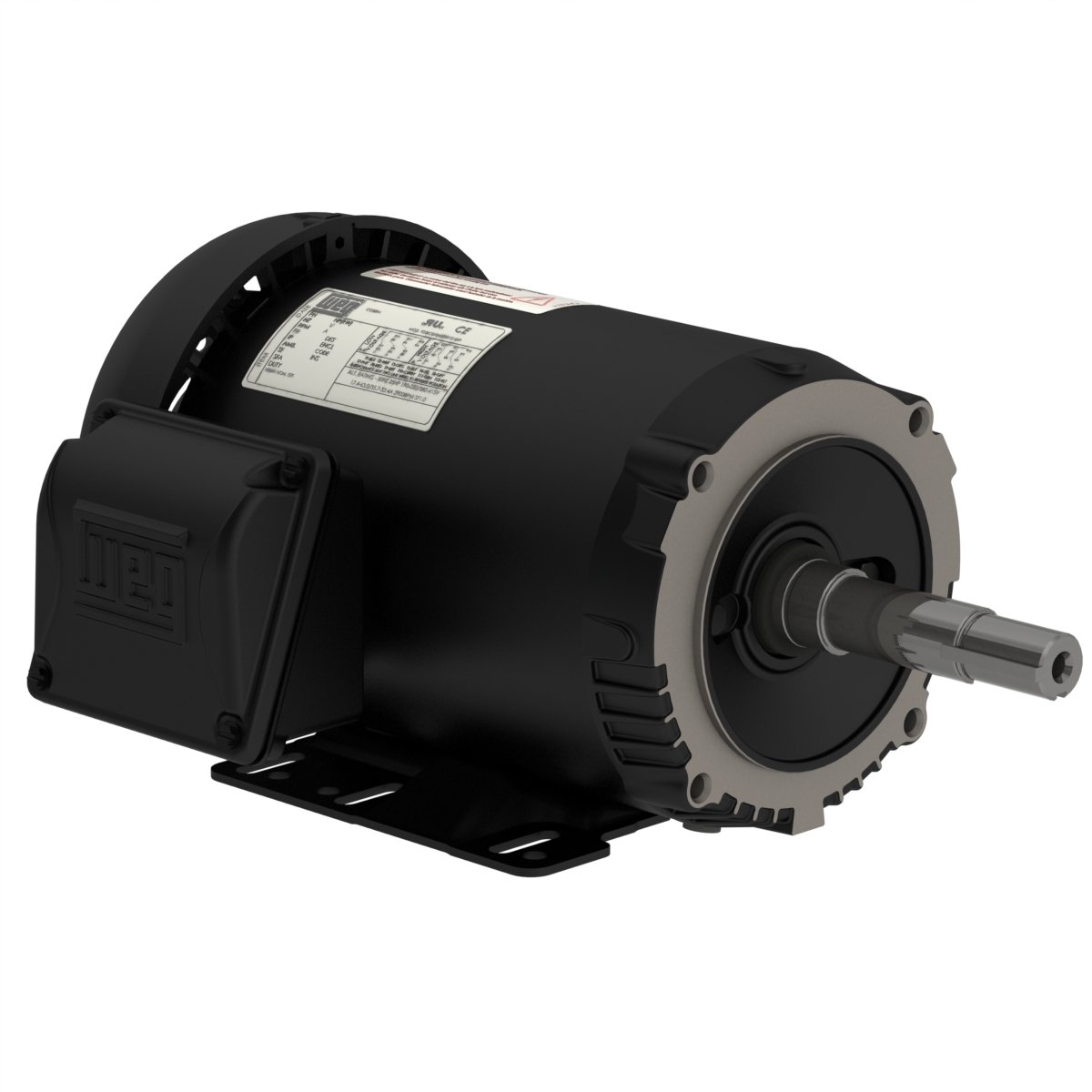

00158ET3H145JM-S WEG 1.5HP JM Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00158ET3H145JM-S

00158ET3H145JM-S WEG 1.5HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3H145JM-S

Selected accessories will also be added to cart
$572.27 / Each
Quantity:
IC411 - TEFC, 143JM/145JM Frame, 575VAC 3-Phase 60Hz, 13328375, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame143/5JM
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage575 V
Rated current1.62 A
L. R. Amperes13.3 A
LRC8.2x(Code K)
No load current0.867 A
Rated torque4.44 ft.lb
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)0.1101 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?40.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.59  0.72  0.79

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Close Coupled Pump
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
575VAC
Frame
143JM
Frame
145JM
