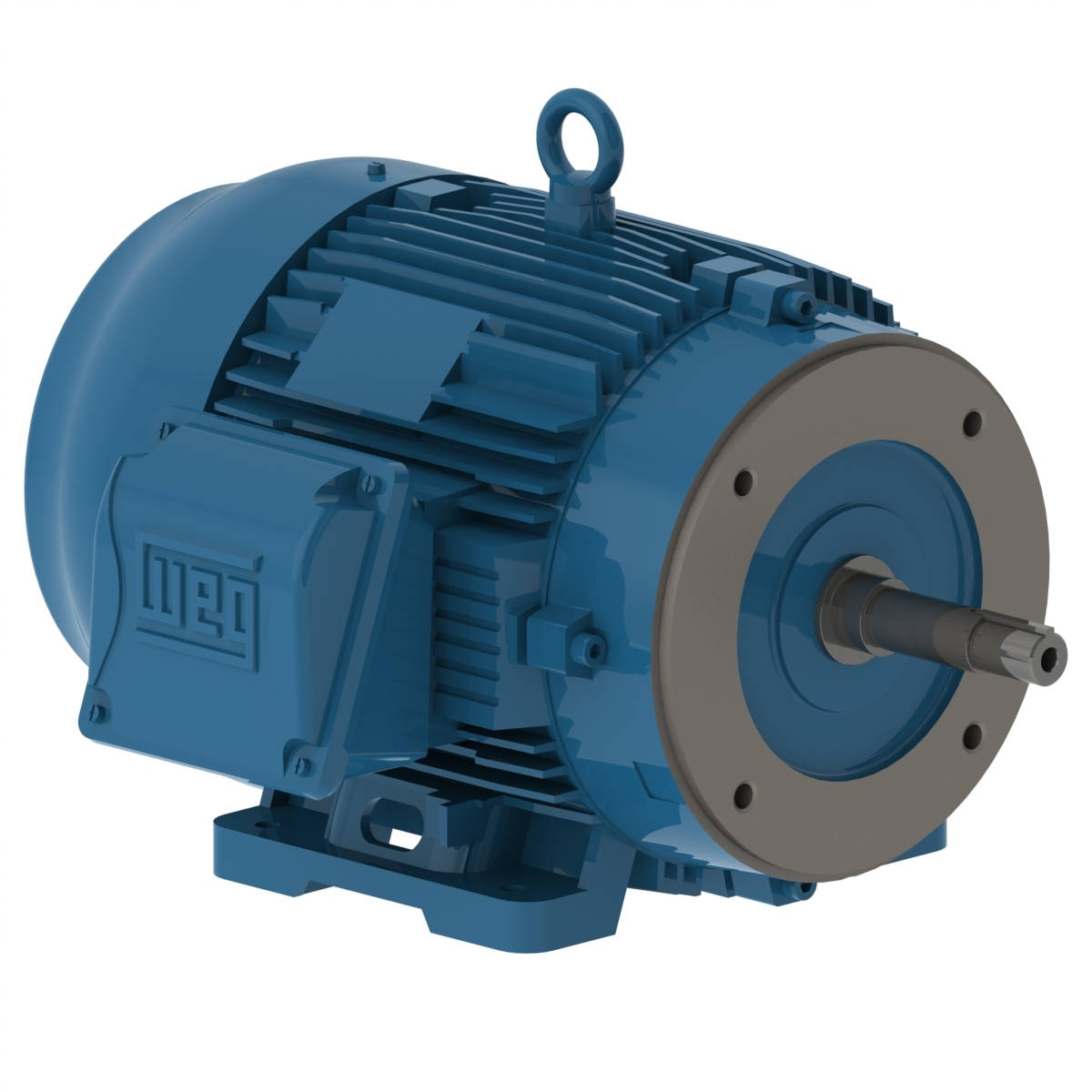

00212ET3E184JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00212ET3E184JM-W22

00212ET3E184JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212ET3E184JM-W22

Selected accessories will also be added to cart
$908.69 / Each
Quantity:
IC411 - TEFC, IP55, 182JM/184JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 11570619, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame182/4JM
Output2 HP (1.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1170 rpm
Slip2.50 %
Rated voltage230/460 V
Rated current6.44/3.22 A
L. R. Amperes48.3/24.2 A
LRC7.5x(Code L)
No load current3.80/1.90 A
Rated torque8.98 ft.lb
Locked rotor torque300 %
Breakdown torque350 %
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?101 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.5  88.5

Power factor

50%75%100%
0.46  0.58  0.66
Frame182/4JM
Output2 HP (1.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed960 rpm
Slip4.00 %
Rated voltage380 V
Rated current3.66 A
L. R. Amperes22.0 A
LRC6.0x(Code J)
No load current1.90 A
Rated torque10.9 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?101 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.0  86.5

Power factor

50%75%100%
0.53  0.65  0.72
Frame182/4JM
Output2 HP (1.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed965 rpm
Slip3.50 %
Rated voltage400 V
Rated current3.61 A
L. R. Amperes24.2 A
LRC6.7x(Code K)
No load current2.05 A
Rated torque10.9 ft.lb
Locked rotor torque280 %
Breakdown torque310 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?101 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  87.0

Power factor

50%75%100%
0.49  0.62  0.69
Frame182/4JM
Output2 HP (1.5 kW)
Number of Poles6
Frequency50 Hz
Rated speed965 rpm
Slip3.50 %
Rated voltage415 V
Rated current3.58 A
L. R. Amperes25.4 A
LRC7.1x(Code L)
No load current2.15 A
Rated torque10.9 ft.lb
Locked rotor torque310 %
Breakdown torque340 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.6210 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?101 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.0  86.5  87.0

Power factor

50%75%100%
0.46  0.59  0.67

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Close Coupled Pump
Horsepower
2HP
Enclosure
TEFC
Frame
182JM
Frame
184JM
