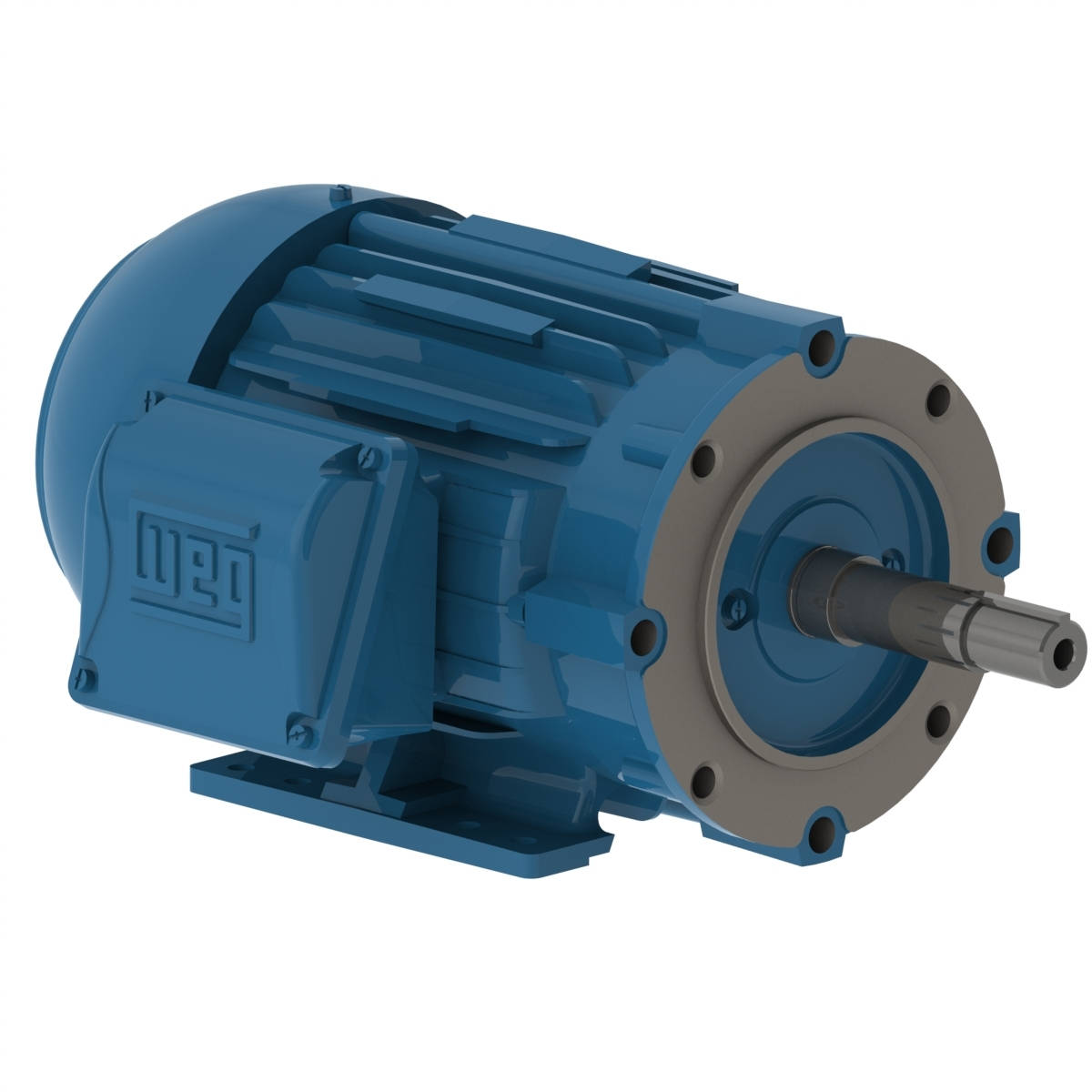

00218ES1E145JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ES1E145JM-W22

00218ES1E145JM-W22 WEG 2HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ES1E145JM-W22

Selected accessories will also be added to cart
$724.46 / Each
Quantity:
IC411 - TEFC, IP55, 143JM/145JM Frame, 208-230/460VAC 60Hz Single Phase, 14090106, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5JM
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current9.50-9.12/4.56 A
L. R. Amperes70.3-67.5/33.7 A
LRC7.4x(Code J)
No load current3.62-4.20/2.10 A
Rated torque6.02 ft.lb
Locked rotor torque270 %
Breakdown torque240 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.1497 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³68.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
68.575.578.5

Power factor

50%75%100%
0.810.870.91

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
2HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143JM
Frame
145JM
