/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Farm Duty - General Purpose/00218ES1RFD145TC-S WEG 2HP Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: 00218ES1RFD145TC-S

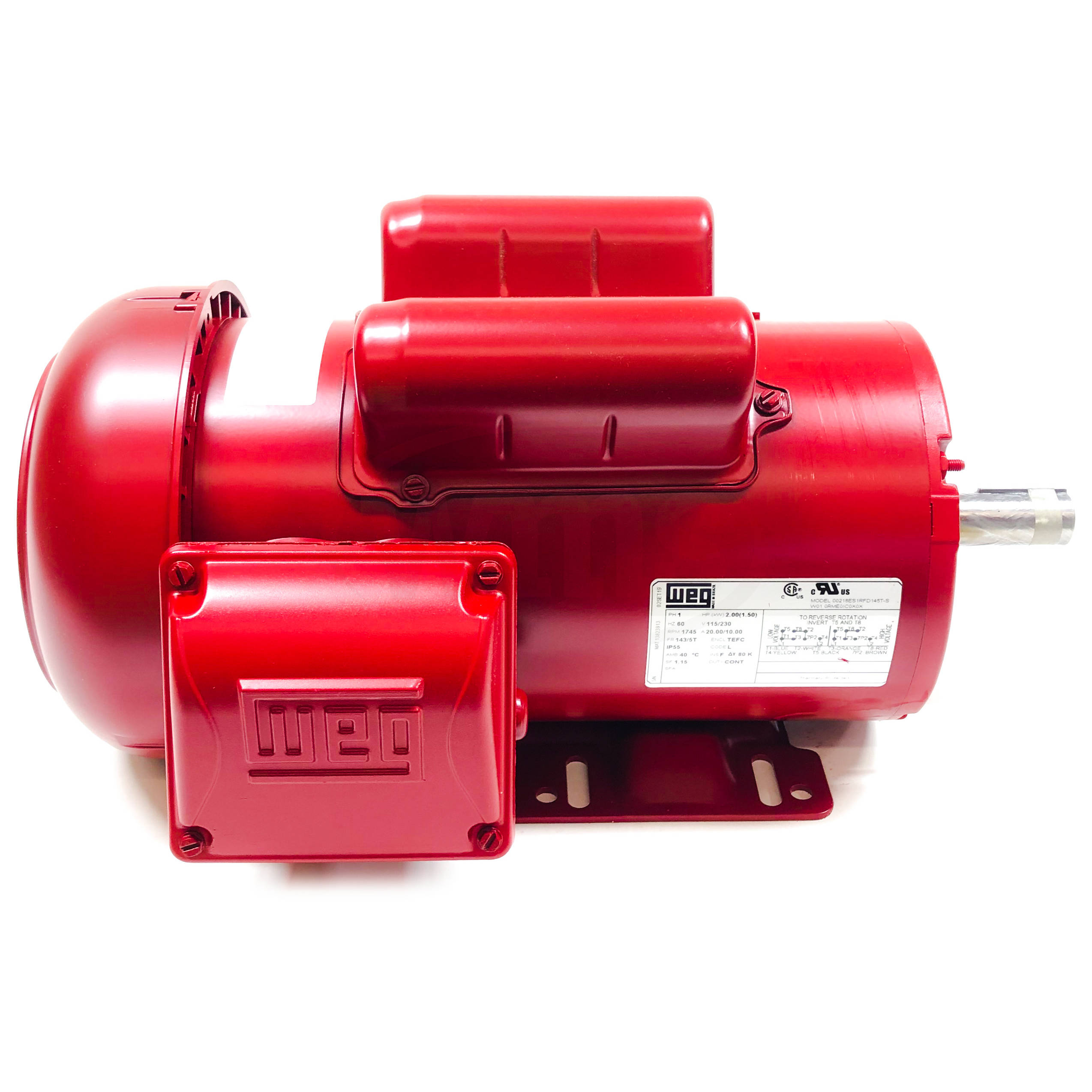

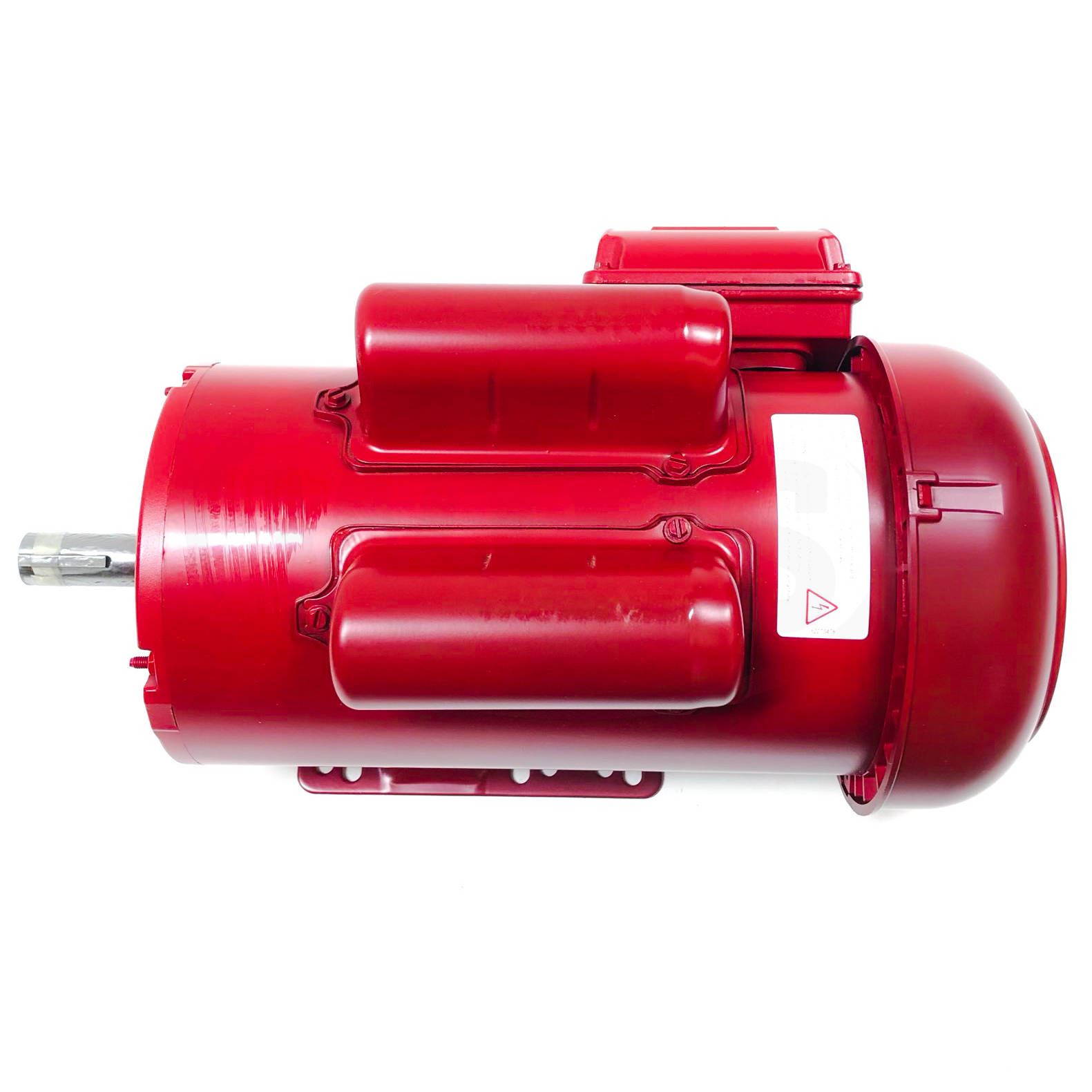

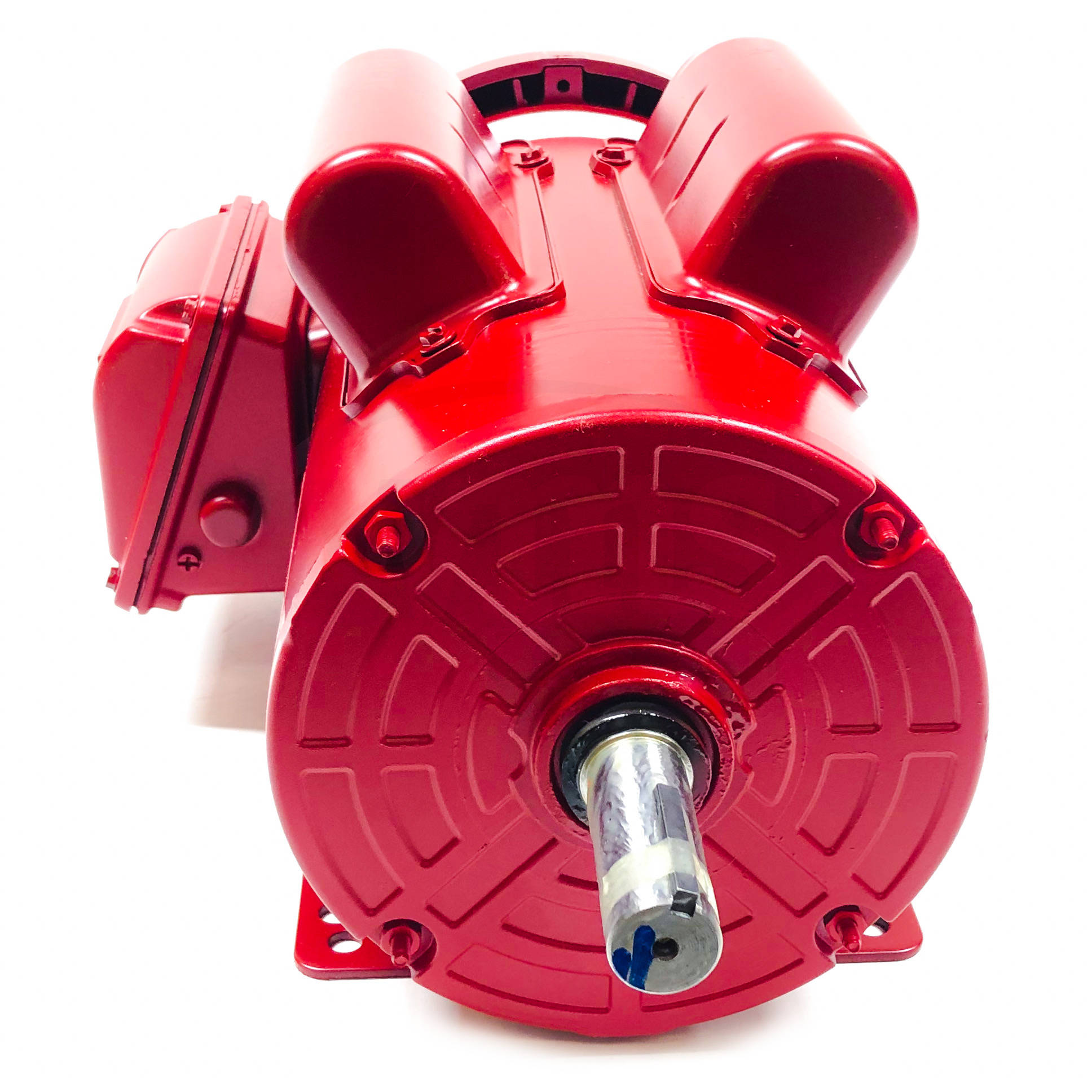

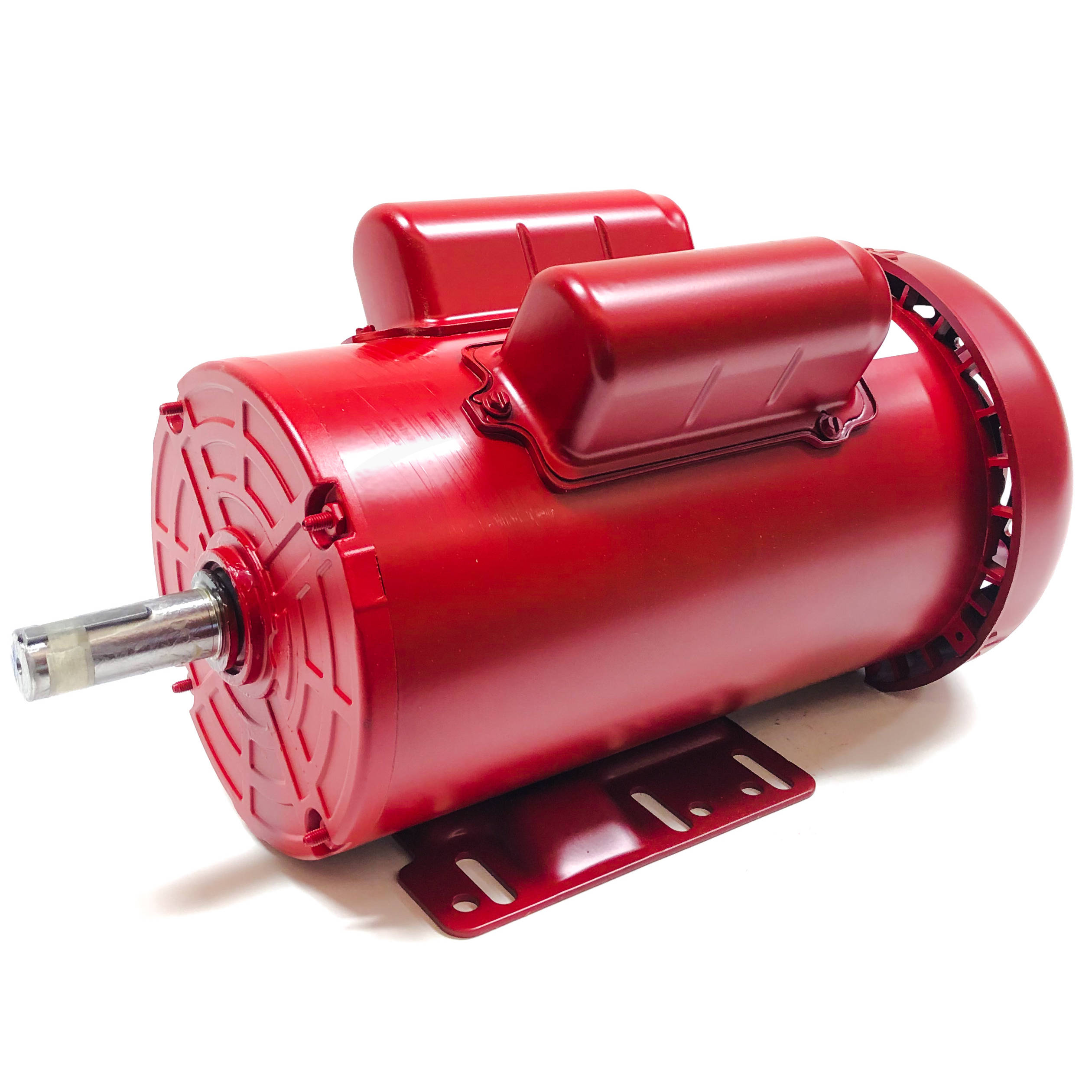

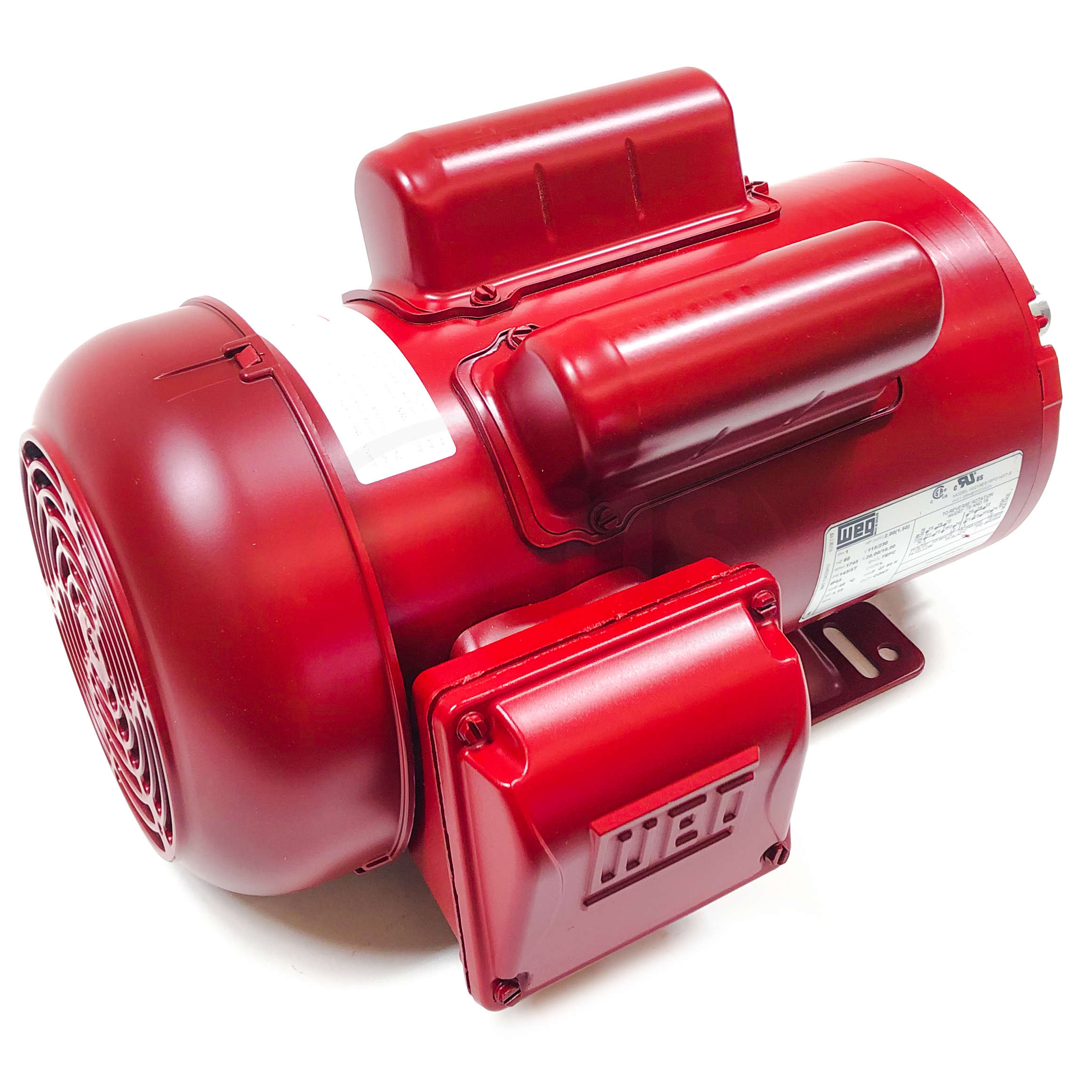

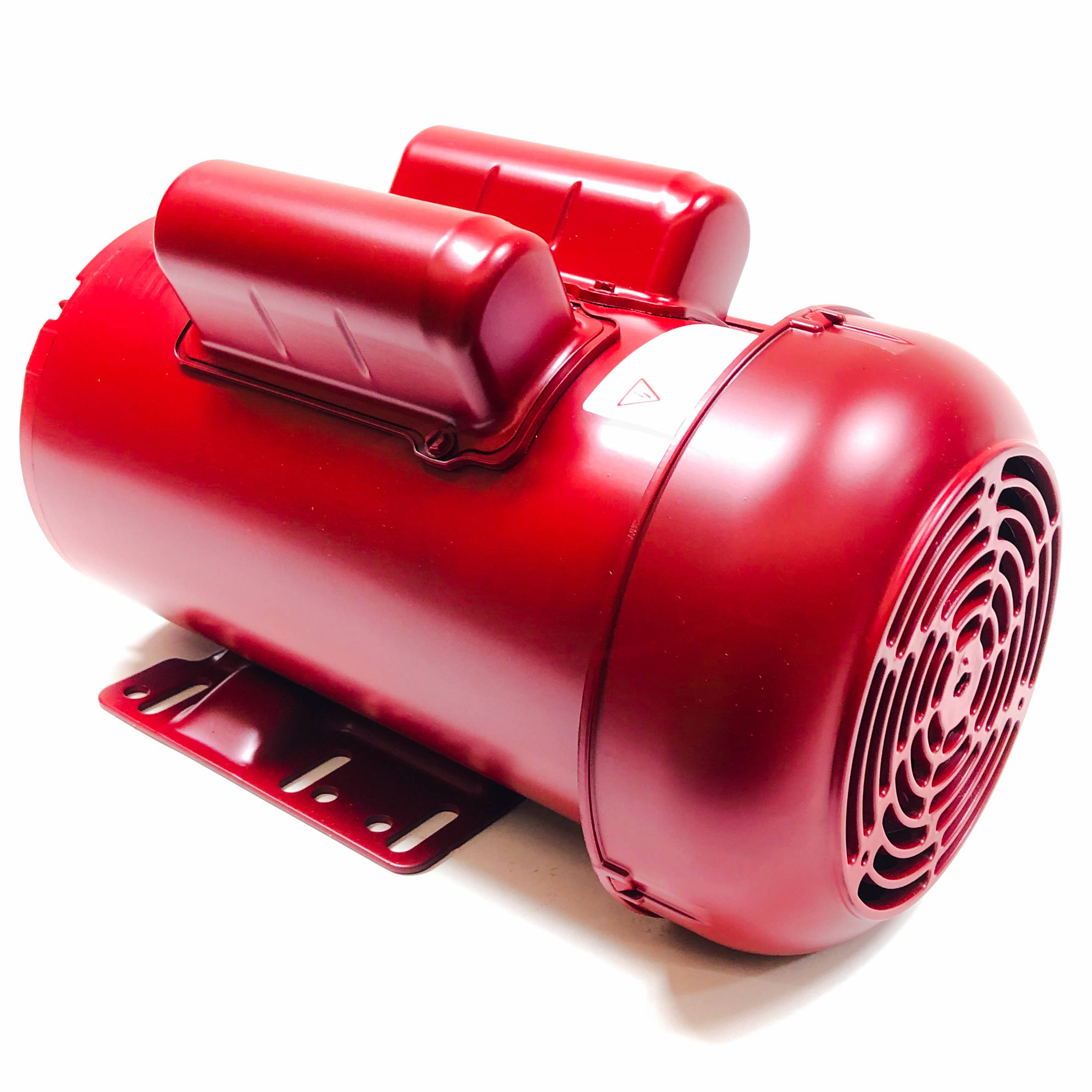

00218ES1RFD145TC-S WEG 2HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ES1RFD145TC-S

Selected accessories will also be added to cart

$591.85 / Each

Quantity:

IC411-TEFC Farm Duty, 143T-145T Frame, 115/230V Single Phase 60Hz, 13823913, Foot Mounted, Rolled Steel, 7/8" Keyed Shaft

Electric Motors

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	115/230 V
Rated current	20.0/10.0 A
L. R. Amperes	160/80.0 A
LRC	8.0x(Code L)
No load current	12.2/6.10 A
Rated torque	5.94 ft.lb
Locked rotor torque	260 %
Breakdown torque	260 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.1614 sq.ft.lb
Design	L
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	54.0 dB(A)
Approx. weightÂ³	52.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	76.0	78.5

Power factor

50%	75%	100%
0.66	0.76	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
