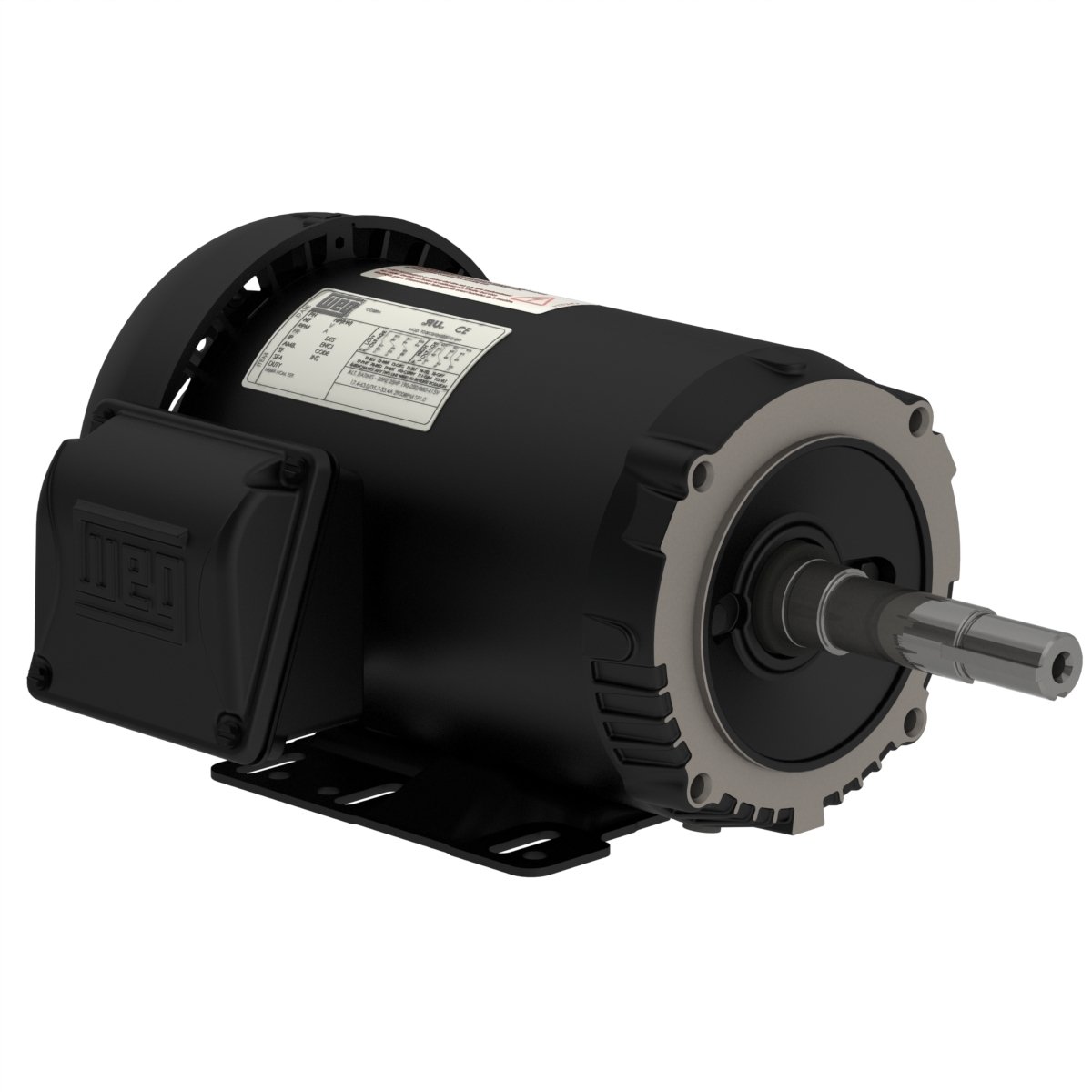

00218ET3H145JM-S WEG 2HP JM Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ET3H145JM-S

00218ET3H145JM-S WEG 2HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3H145JM-S

Selected accessories will also be added to cart
$629.23 / Each
Quantity:
IC411 - TEFC, IP55, 143JM/145JM Frame, 575VAC 3-Phase 60Hz, 13328376, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame143/5JM
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage575 V
Rated current2.18 A
L. R. Amperes17.8 A
LRC8.2x(Code K)
No load current1.12 A
Rated torque5.94 ft.lb
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.1296 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?45.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  87.5  86.5

Power factor

50%75%100%
0.60  0.73  0.80

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Close Coupled Pump
Horsepower
2HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
143JM
Frame
145JM
