00236ET3EAL90L-W22 WEG 3HP/2.2kW IEC Tru-Metric Electric Motor, 3600RPM

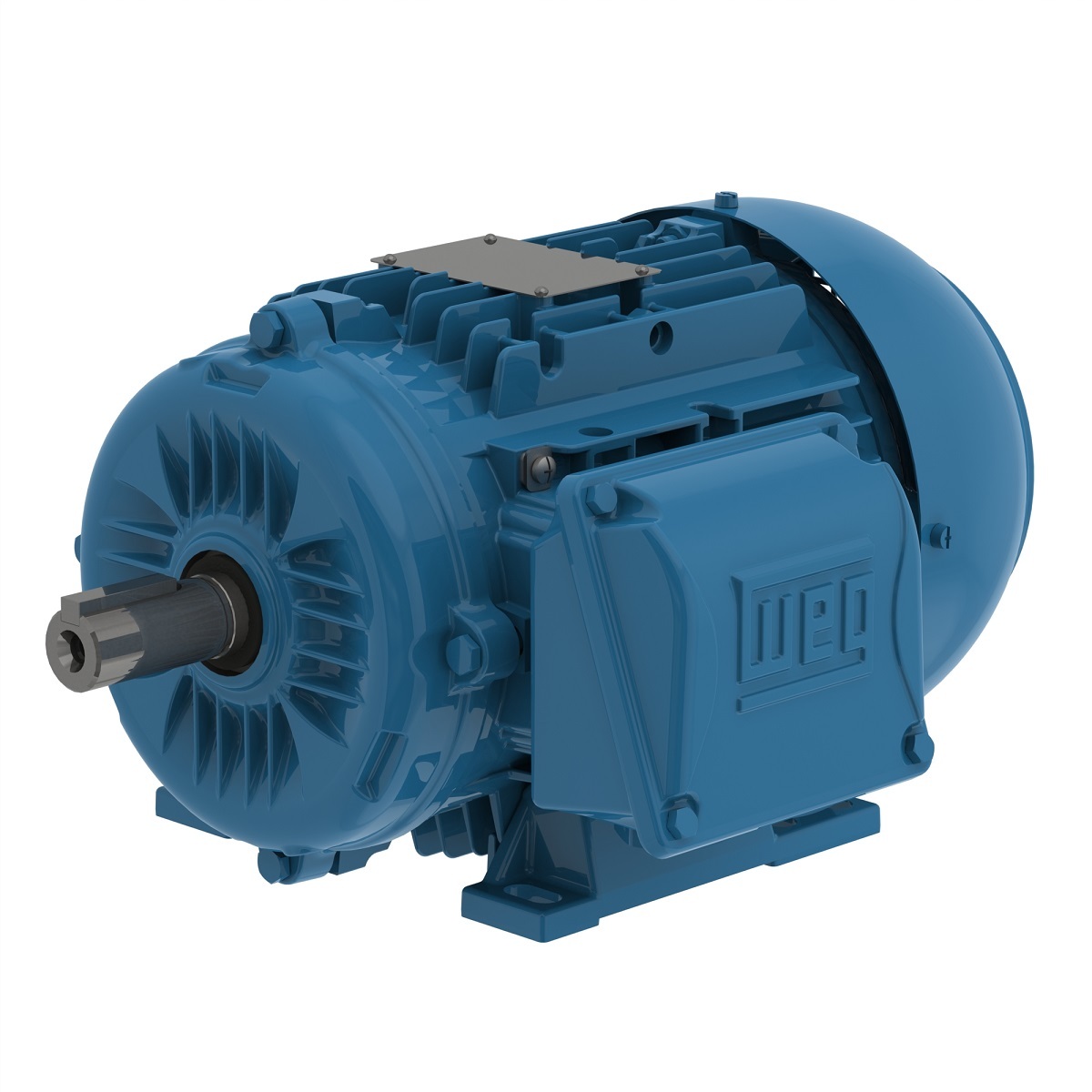

Enlarge Photo

Product ID: 00236ET3EAL90L-W22

00236ET3EAL90L-W22 WEG 3HP/2.2kW IEC Tru-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3EAL90L-W22

Selected accessories will also be added to cart
$567.00 / Each
Quantity:
IC411 - TEFC, 90S/L Frame, 230/460/380-415V 3-Phase 50/60Hz, Foot Mount, 13983074
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Electric Motors

Frame90S/L
Output3 HP (2.2 kW)
Number of Poles2
Frequency50 Hz
Rated speed2840 rpm
Slip5.33 %
Rated voltage380 V
Rated current4.52 A
L. R. Amperes32.1 A
LRC7.1
No load current1.65 A
Rated torque5.47 ft.lb
Locked rotor torque300 %
Breakdown torque310 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.0617 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²62.0 dB(A)
Approx. weight³45.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  86.4  85.9

Power factor

50%75%100%
0.70  0.81  0.86
Frame90S/L
Output3 HP (2.2 kW)
Number of Poles2
Frequency50 Hz
Rated speed2865 rpm
Slip4.50 %
Rated voltage400 V
Rated current4.43 A
L. R. Amperes33.7 A
LRC7.6
No load current1.85 A
Rated torque5.42 ft.lb
Locked rotor torque340 %
Breakdown torque350 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.0617 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²62.0 dB(A)
Approx. weight³45.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.0  86.5  86.3

Power factor

50%75%100%
0.65  0.77  0.83
Frame90S/L
Output3 HP (2.2 kW)
Number of Poles2
Frequency50 Hz
Rated speed2875 rpm
Slip4.17 %
Rated voltage415 V
Rated current4.37 A
L. R. Amperes35.0 A
LRC8.0
No load current2.05 A
Rated torque5.41 ft.lb
Locked rotor torque380 %
Breakdown torque380 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.0617 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²62.0 dB(A)
Approx. weight³45.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.3  86.4  86.5

Power factor

50%75%100%
0.61  0.74  0.81
Frame90S/L
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3480 rpm
Slip3.33 %
Rated voltage230/460 V
Rated current7.70/3.85 A
L. R. Amperes70.1/35.0 A
LRC9.1
No load current3.40/1.70 A
Rated torque4.47 ft.lb
Locked rotor torque430 %
Breakdown torque459 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.0617 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²62.0 dB(A)
Approx. weight³45.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.5  86.5

Power factor

50%75%100%
0.64  0.76  0.83
