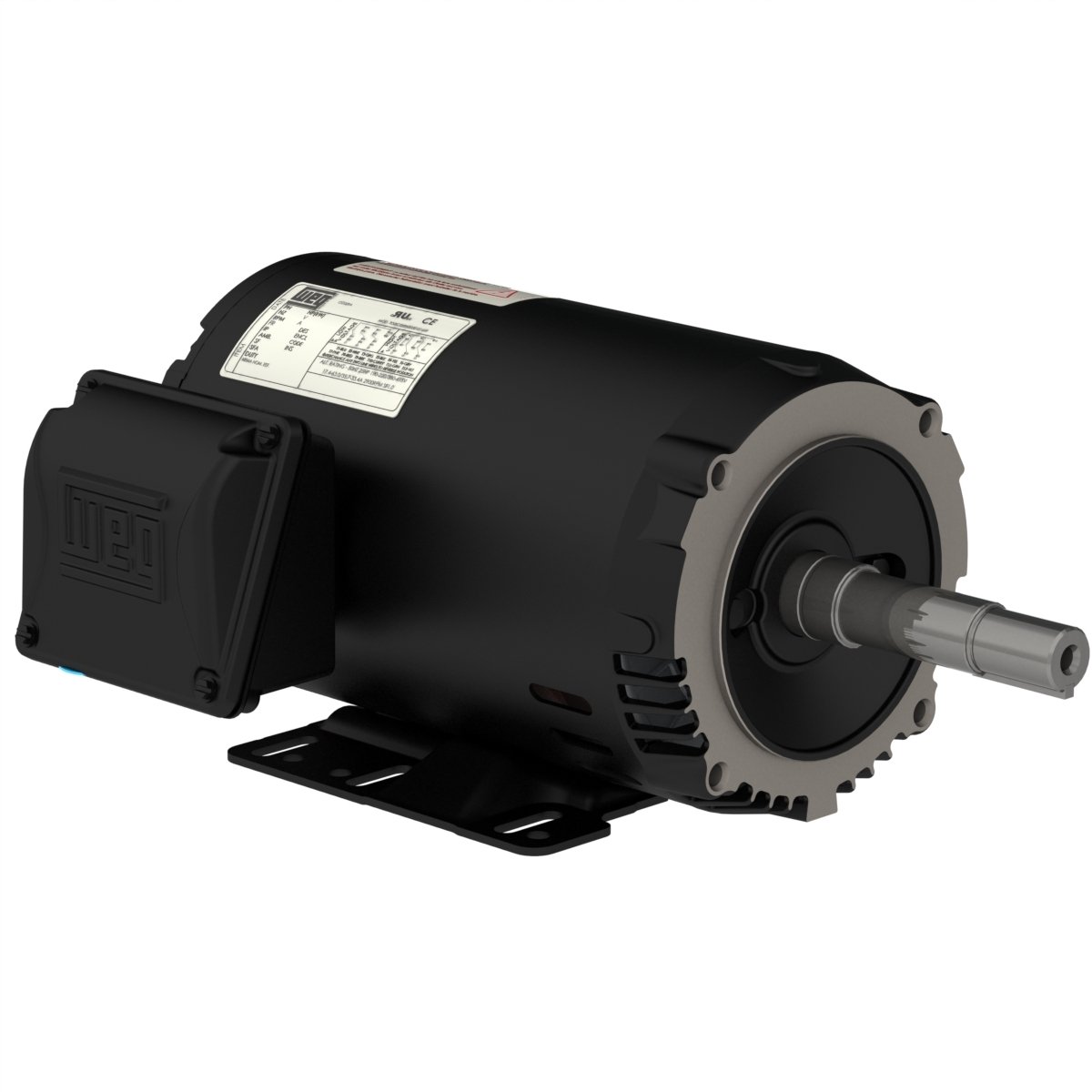

Motor/Control Division

Frame	143/5JM
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	5.35-4.84/2.42 A
L. R. Amperes	47.6-43.1/21.5 A
LRC	8.9x(Code K)
No load current	1.58-1.83/0.917 A
Rated torque	2.95 ft.lb
Locked rotor torque	220 %
Breakdown torque	330 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1151 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	38.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.77	0.86	0.91

Frame	143/5JM
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	190/380 V
Rated current	5.82/2.91 A
L. R. Amperes	40.2/20.1 A
LRC	6.9x(Code H)
No load current	1.81/0.906 A
Rated torque	3.59 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1151 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	38.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	85.1	84.2

Power factor

50%	75%	100%
0.83	0.90	0.93

Frame	143/5JM
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	5.11/2.71 A
L. R. Amperes	41.9/22.2 A
LRC	8.2x(Code J)
No load current	1.98/1.05 A
Rated torque	3.56 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1151 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	38.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.3	85.5	84.7

Power factor

50%	75%	100%
0.77	0.87	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
