/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/C-Face, Foot Mount/00312ET3E213TC-S WEG 3HP General Purpose Electric Motor, 1200RPM

Product ID: 00312ET3E213TC-S

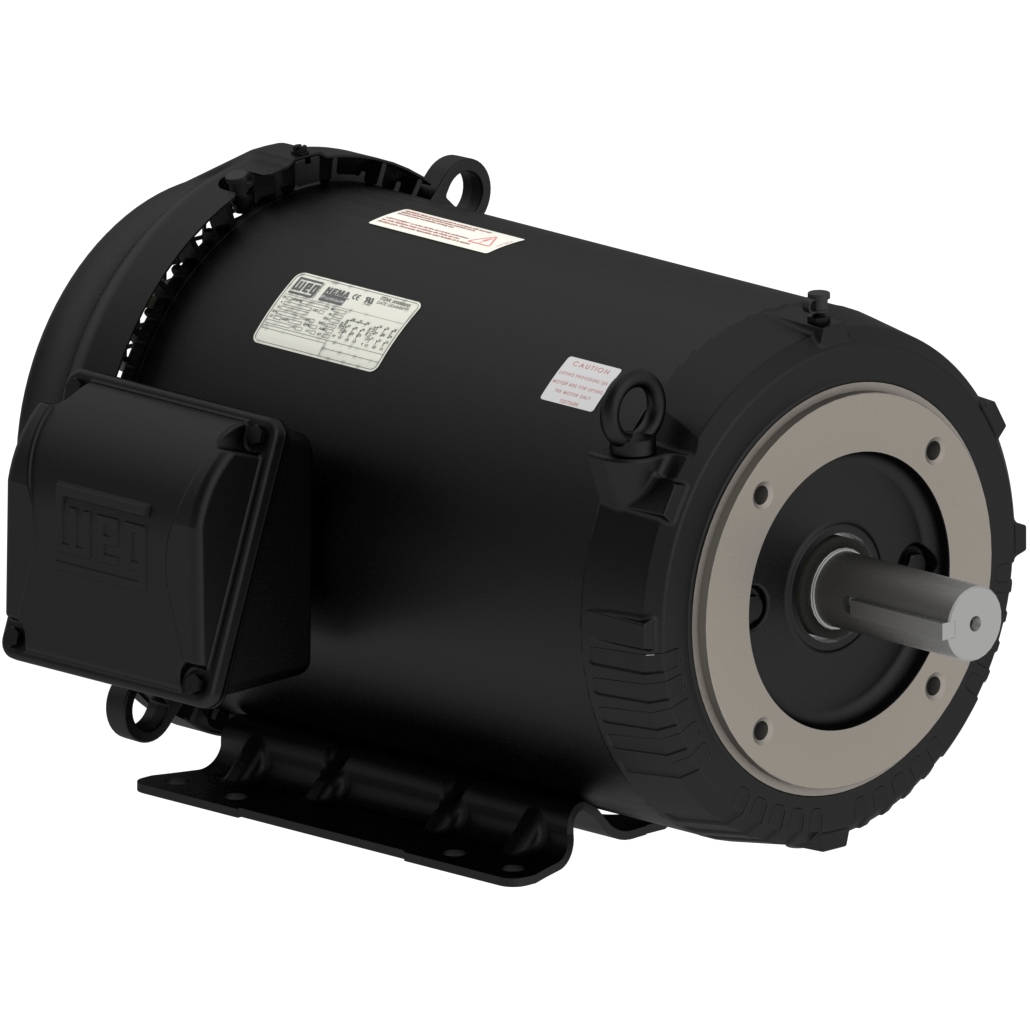

00312ET3E213TC-S WEG 3HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312ET3E213TC-S

Selected accessories will also be added to cart

$914.92 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 230/460 190-220 380-415VAC 60Hz 3 Phase, 12675387, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Electric Motors

Frame	213/5TC
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	8.34/4.17 A
L. R. Amperes	53.4/26.7 A
LRC	6.4x(Code H)
No load current	4.71/2.36 A
Rated torque	13.4 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	82s (cold) 46s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	140 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	88.5	89.5

Power factor

50%	75%	100%
0.55	0.67	0.74

Frame	213/5TC
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	190/380 V
Rated current	9.76/4.88 A
L. R. Amperes	49.8/24.9 A
LRC	5.1x(Code F)
No load current	4.66/2.33 A
Rated torque	16.2 ft.lb
Locked rotor torque	170 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	140 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.9	87.6	86.7

Power factor

50%	75%	100%
0.62	0.73	0.79

Frame	213/5TC
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	220/415 V
Rated current	8.90/4.72 A
L. R. Amperes	49.9/26.4 A
LRC	5.6x(Code G)
No load current	4.69/2.48 A
Rated torque	16.2 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	140 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.6	87.8	87.3

Power factor

50%	75%	100%
0.58	0.70	0.77

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
