Motor/Control Division

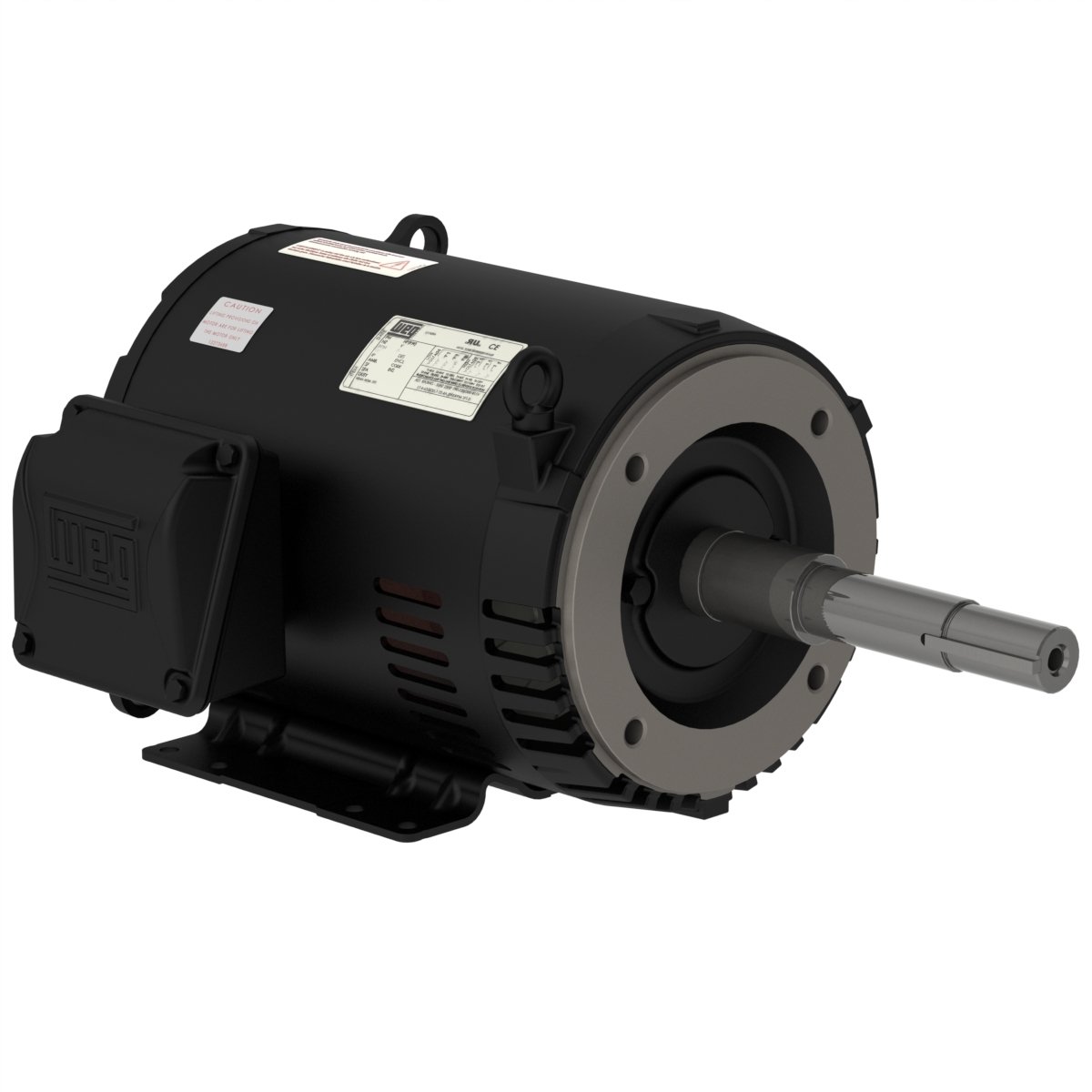

Frame	213/5JP
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	9.20-8.32/4.16 A
L. R. Amperes	54.3-49.1/24.5 A
LRC	5.9x(Code H)
No load current	3.95-4.58/2.29 A
Rated torque	13.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	70s (cold) 39s (hot)

Moment of inertia (J)	0.8104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	117 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	88.5

Power factor

50%	75%	100%
0.56	0.68	0.75

Frame	213/5JP
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	9.88/4.94 A
L. R. Amperes	45.4/22.7 A
LRC	4.6x(Code E)
No load current	4.52/2.26 A
Rated torque	16.1 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.8104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	117 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.8	86.1	84.6

Power factor

50%	75%	100%
0.63	0.75	0.80

Frame	213/5JP
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	8.85/4.69 A
L. R. Amperes	48.7/25.8 A
LRC	5.5x(Code G)
No load current	4.90/2.60 A
Rated torque	16.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.8104 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	53.0 dB(A)
Approx. weight³	117 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.9	86.3	85.8

Power factor

50%	75%	100%
0.56	0.69	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
