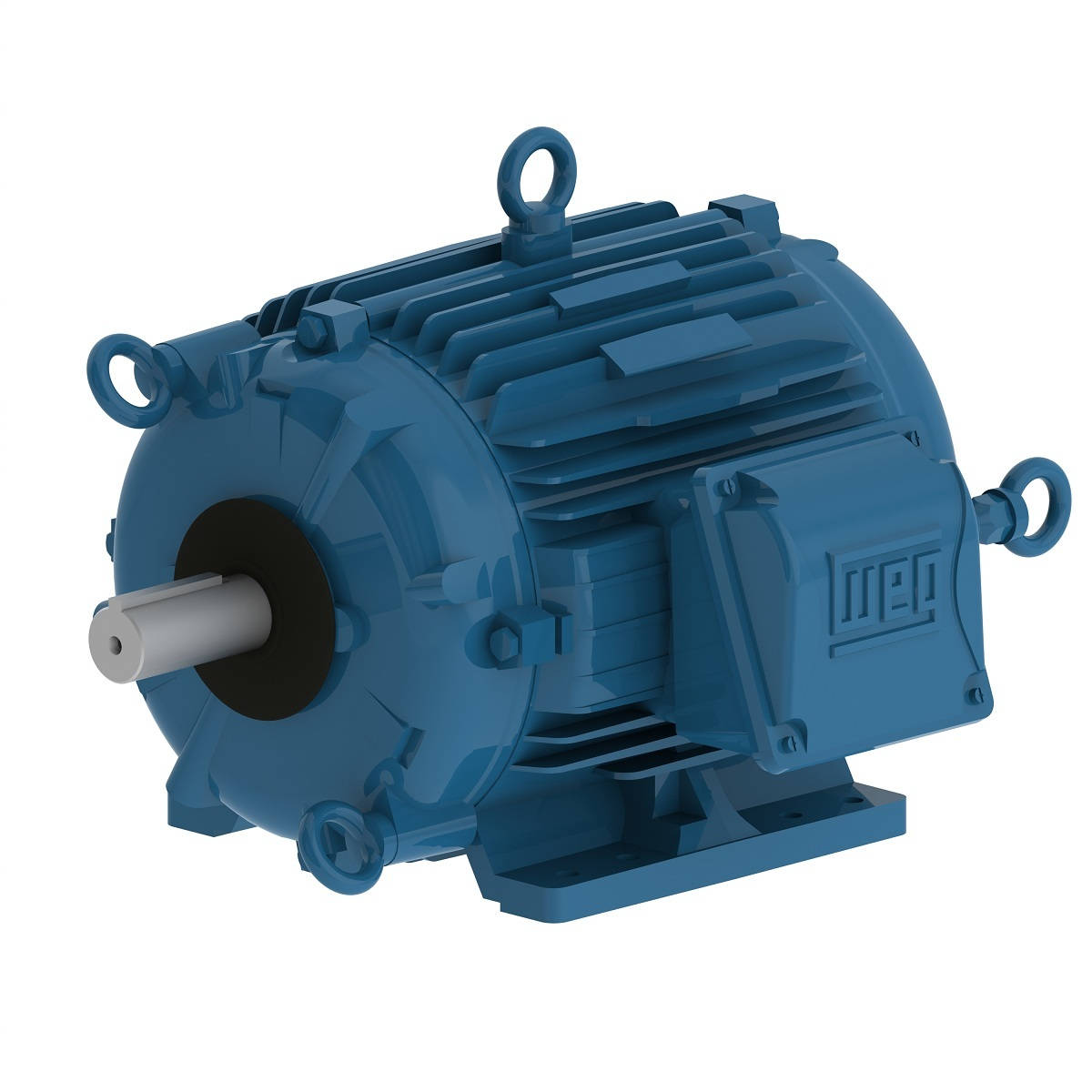

00318AT3PCT182T-W22 WEG 3HP Cooling Tower Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00318AT3PCT182T-W22

00318AT3PCT182T-W22 WEG 3HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318AT3PCT182T-W22

Selected accessories will also be added to cart
$715.56 / Each
Quantity:
IC410 - TEAO, IP55, 182T Frame, 200VAC 60Hz 3 Phase, 12126782, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 1-1/8" Keyed Shaft

Electric Motors

Frame182T
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage200 V
Rated current8.99 A
L. R. Amperes72.8 A
LRC8.1x(Code K)
No load current4.60 A
Rated torque8.95 ft.lb
Locked rotor torque229 %
Breakdown torque340 %
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)0.3401 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-2
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?89.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  89.5

Power factor

50%75%100%
0.61  0.73  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage110-127/200-240 V
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6207 2RS  6206 2RS
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
150 lb 239 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Cooling Tower
Horsepower
3HP
Enclosure
TEAO
Input Voltage
200VAC
Frame
182T
