/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Foot Mount/00318OS1B184T-S WEG 3HP General Purpose Electric Motor, 1800RPM

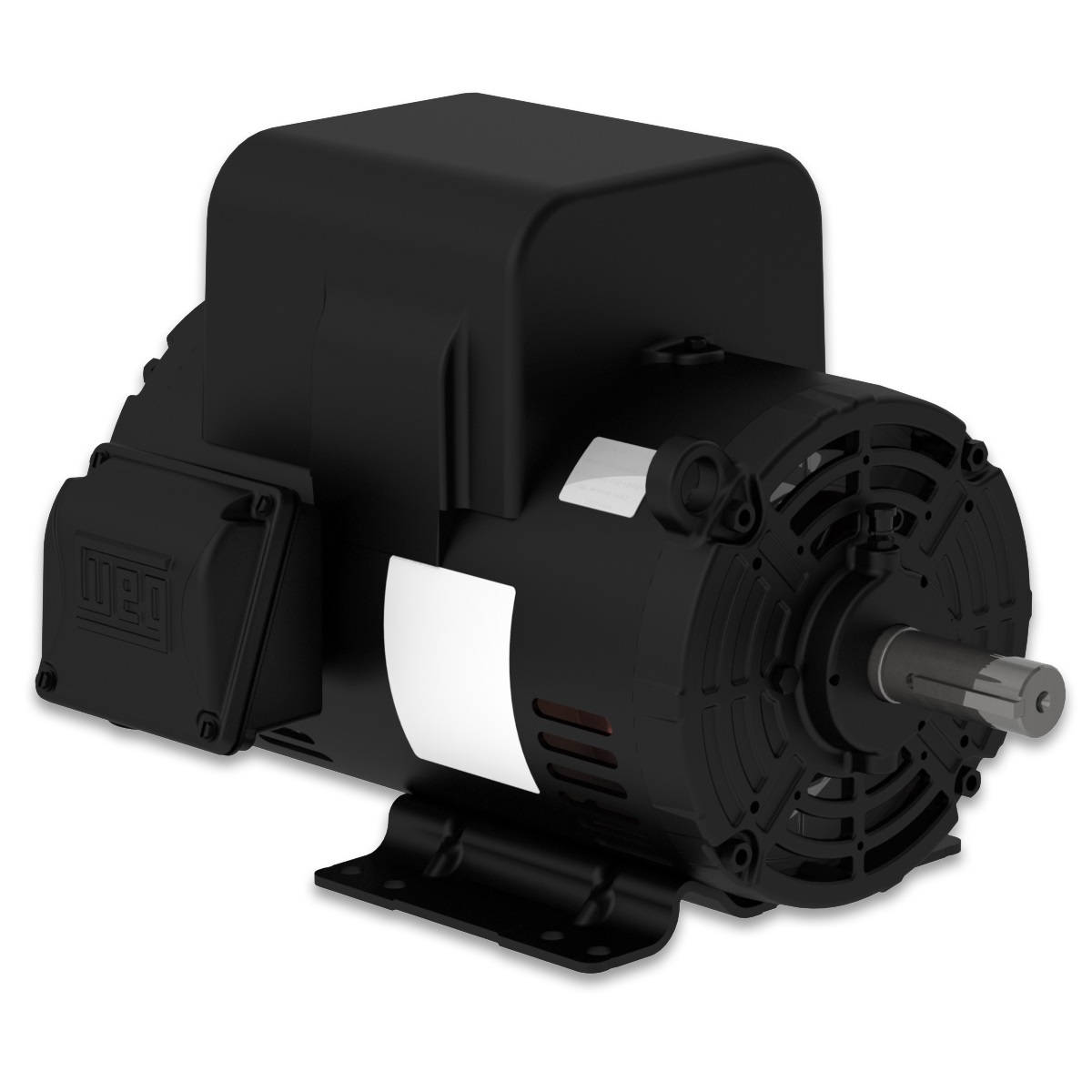

00318OS1B184T-S WEG 3HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00318OS1B184T-S

00318OS1B184T-S WEG 3HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318OS1B184T-S

Selected accessories will also be added to cart
$614.10 / Each
Quantity:
IC01-ODP, 182/184T Frame, 115/208-230VAC, 60Hz, 1 Phase, 15116506, Foot Mounted, Rolled Steel Frame, 1 1/8" Keyed Shaft

Electric Motors

Frame182/4T
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current29.9/15.8-15.0 A
L. R. Amperes173/91.6-87.0 A
LRC5.8x(Code H)
No load current16.1/6.10-8.10 A
Rated torque9.03 ft.lb
Locked rotor torque250 %
Breakdown torque210 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)0.2776 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³75.0 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
72.476.977.0

Power factor

50%75%100%
0.660.770.83

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Fan materialWithout fan
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealWithout Bearing Seal
DE bearing SealWithout Bearing Seal
Cable Press MaterialSem
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
182T
Frame
184T
