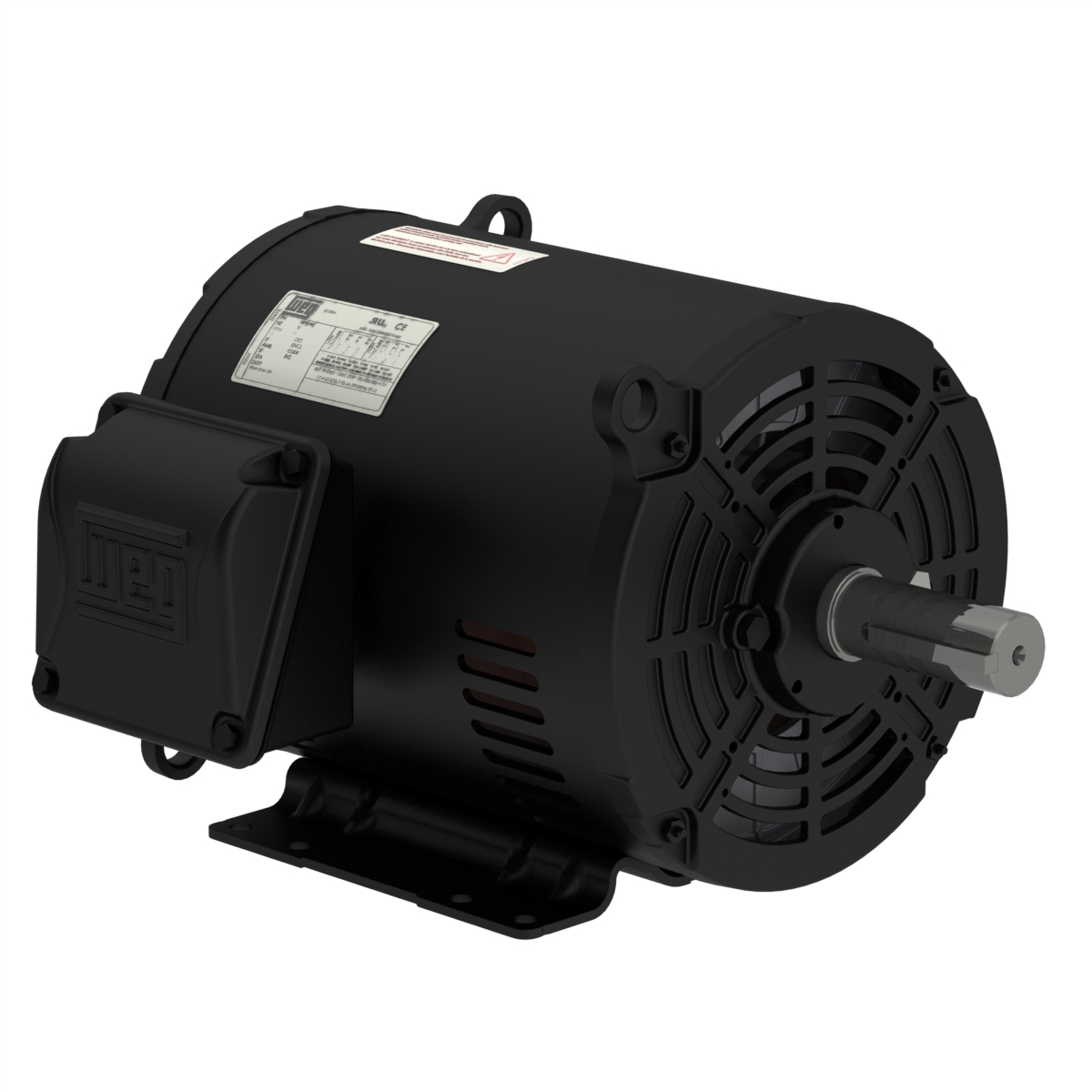

Motor/Control Division

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	8.54-7.72/3.86 A
L. R. Amperes	71.7-64.8/32.4 A
LRC	8.4x(Code K)
No load current	3.57-4.14/2.07 A
Rated torque	8.81 ft.lb
Locked rotor torque	220 %
Breakdown torque	330 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.3092 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	67.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.60	0.73	0.80

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	190/380 V
Rated current	9.08/4.54 A
L. R. Amperes	58.1/29.1 A
LRC	6.4x(Code H)
No load current	4.08/2.04 A
Rated torque	10.6 ft.lb
Locked rotor torque	150 %
Breakdown torque	240 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3092 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	67.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.0	86.5	86.7

Power factor

50%	75%	100%
0.68	0.79	0.85

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	220/415 V
Rated current	8.17/4.33 A
L. R. Amperes	61.3/32.5 A
LRC	7.5x(Code J)
No load current	4.48/2.37 A
Rated torque	10.6 ft.lb
Locked rotor torque	180 %
Breakdown torque	300 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.3092 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	67.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.8	87.8	87.2

Power factor

50%	75%	100%
0.60	0.73	0.81

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
