/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00318ES1B184TC-W22 WEG 3HP Electric Motor, 1800RPM

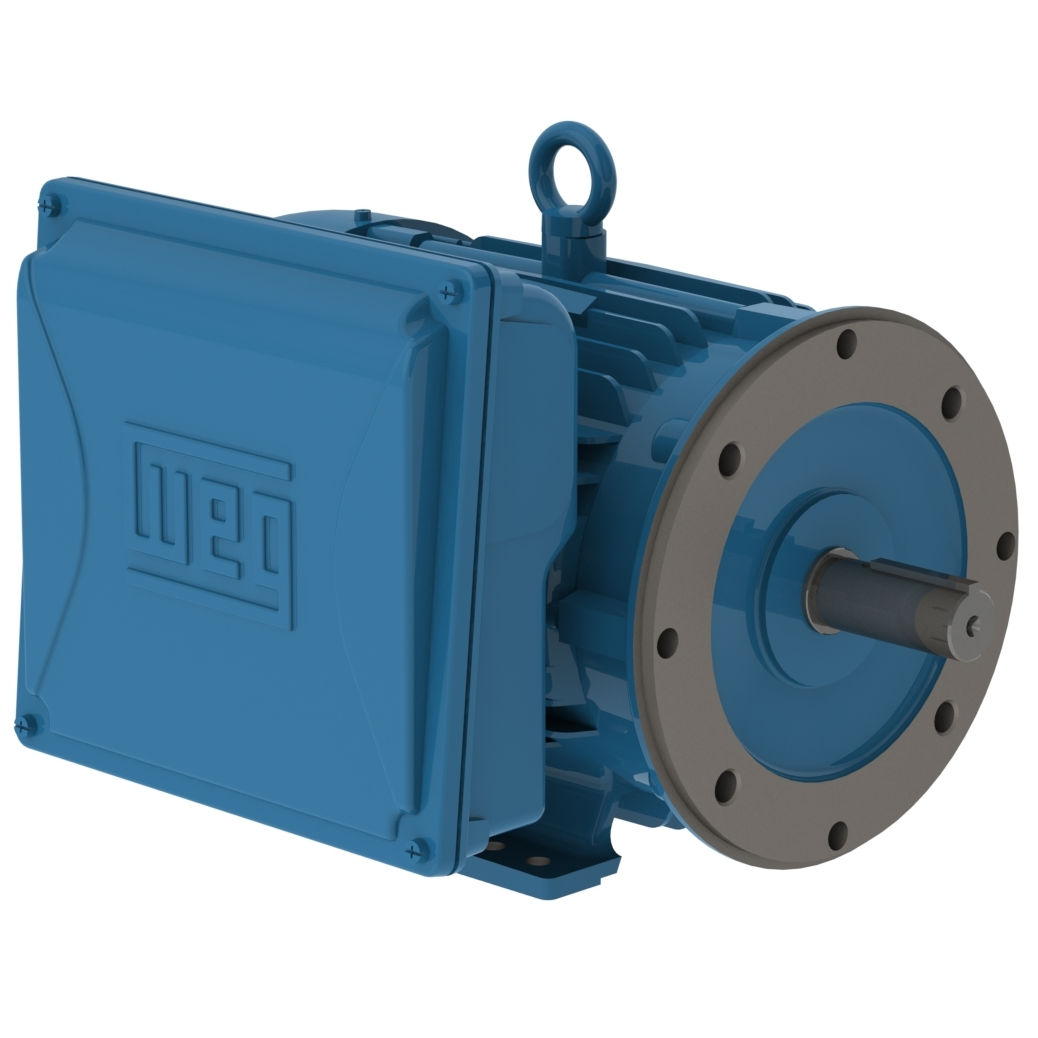

00318ES1B184TC-W22 WEG 3HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00318ES1B184TC-W22

00318ES1B184TC-W22 WEG 3HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ES1B184TC-W22

Selected accessories will also be added to cart
$812.57 / Each
Quantity:
IC411 - TEFC, IP55, 182TC/184TC Frame, 115/208-230VAC 60Hz Single Phase, 14043951, Foot Mounted, C-Face, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current30.2/15.7-15.1 A
L. R. Amperes208/108-104 A
LRC6.9x(Code J)
No load current18.0/7.76-9.00 A
Rated torque9.03 ft.lb
Locked rotor torque290 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.3735 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Approx. weight³108 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
65.074.077.0

Power factor

50%75%100%
0.740.800.82
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
3HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
182TC
Frame
184TC
