/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00318ES1E184T-W22 WEG 3HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00318ES1E184T-W22

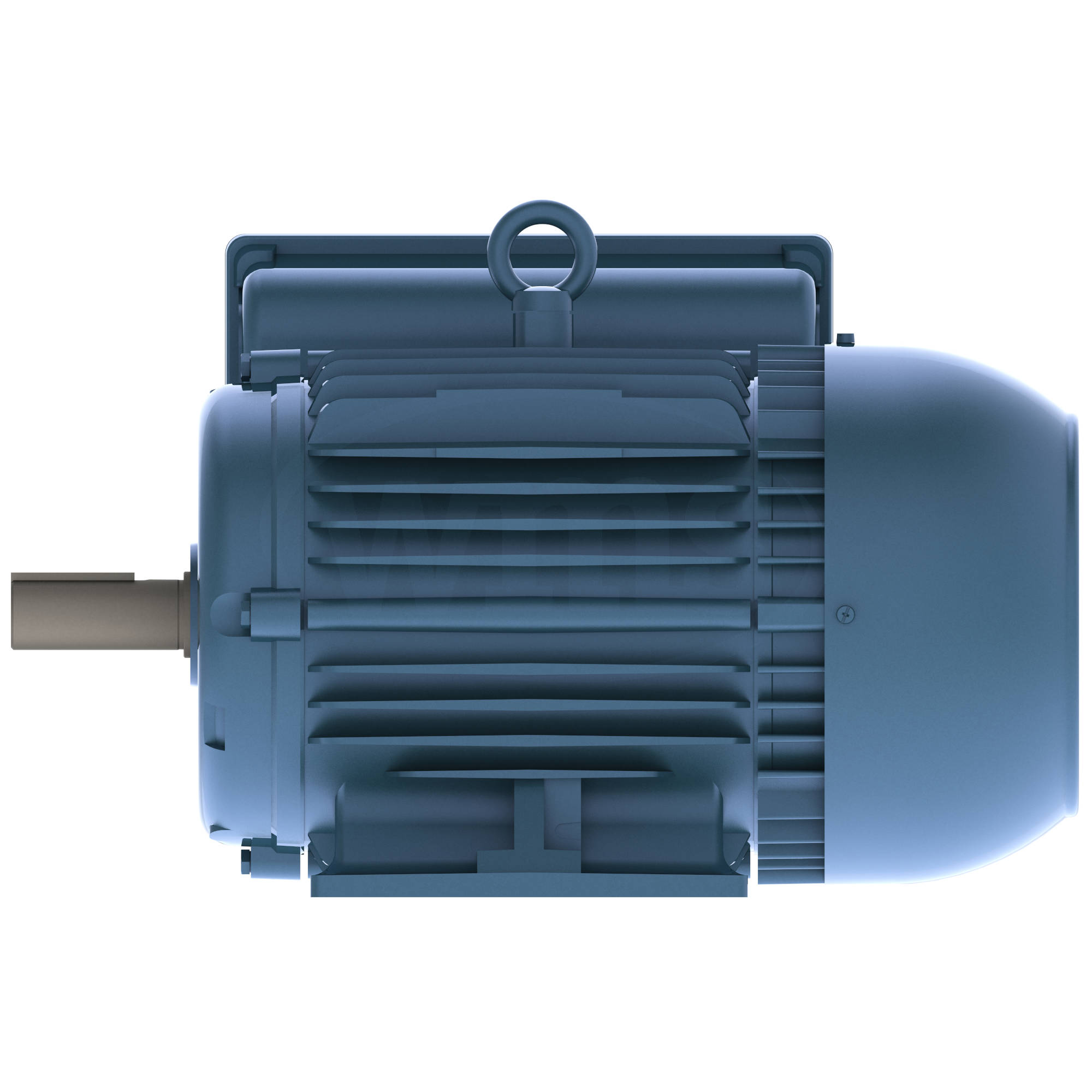

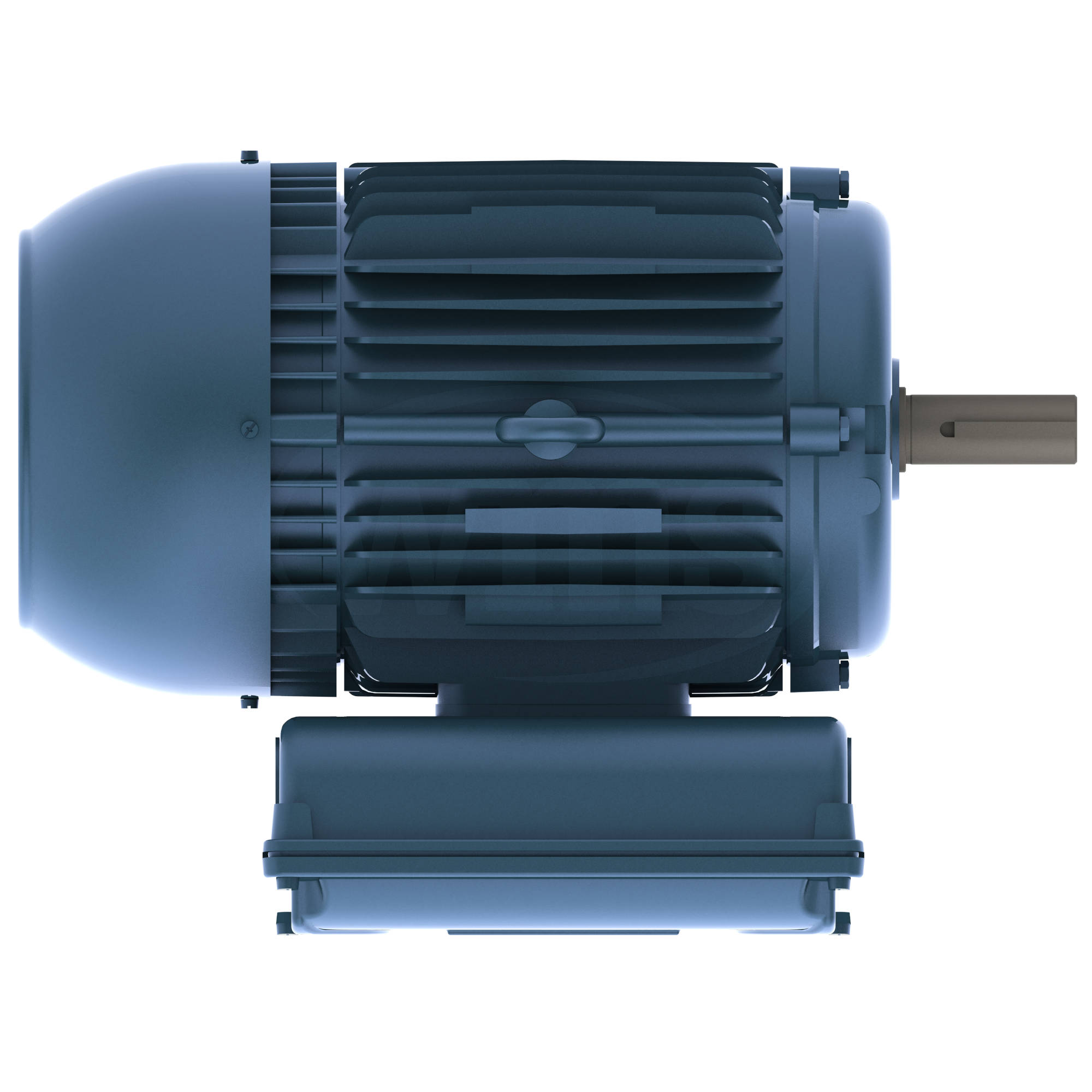

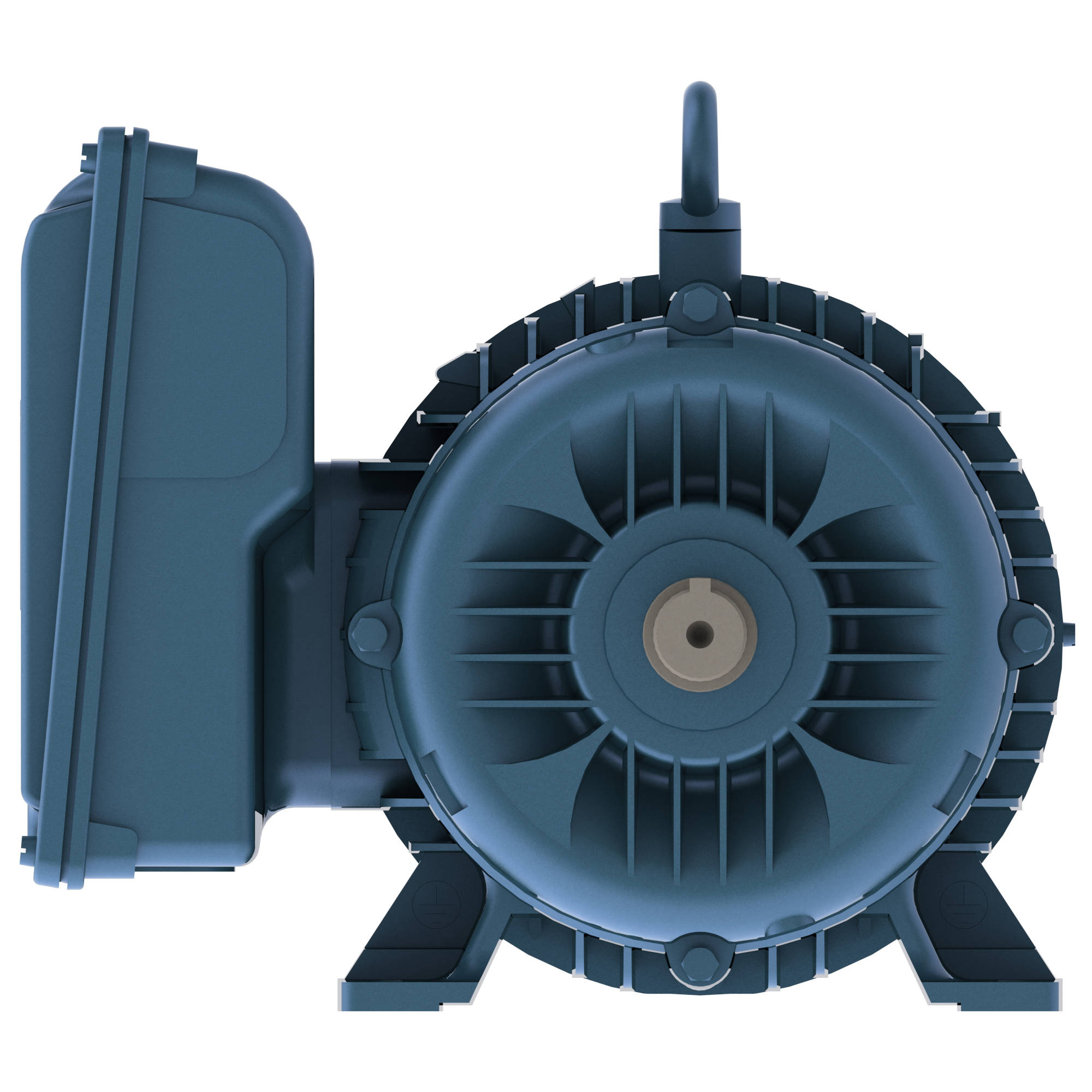

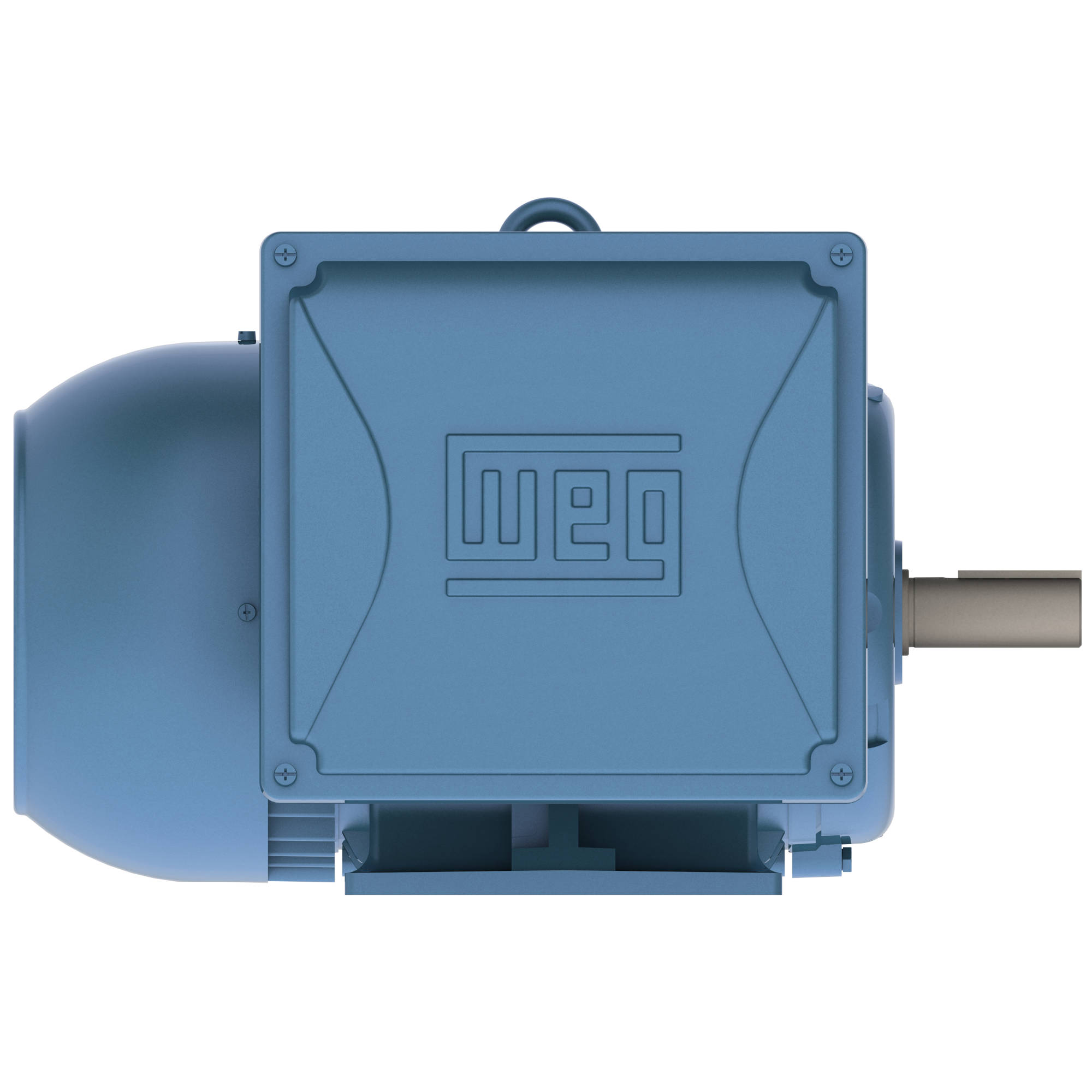

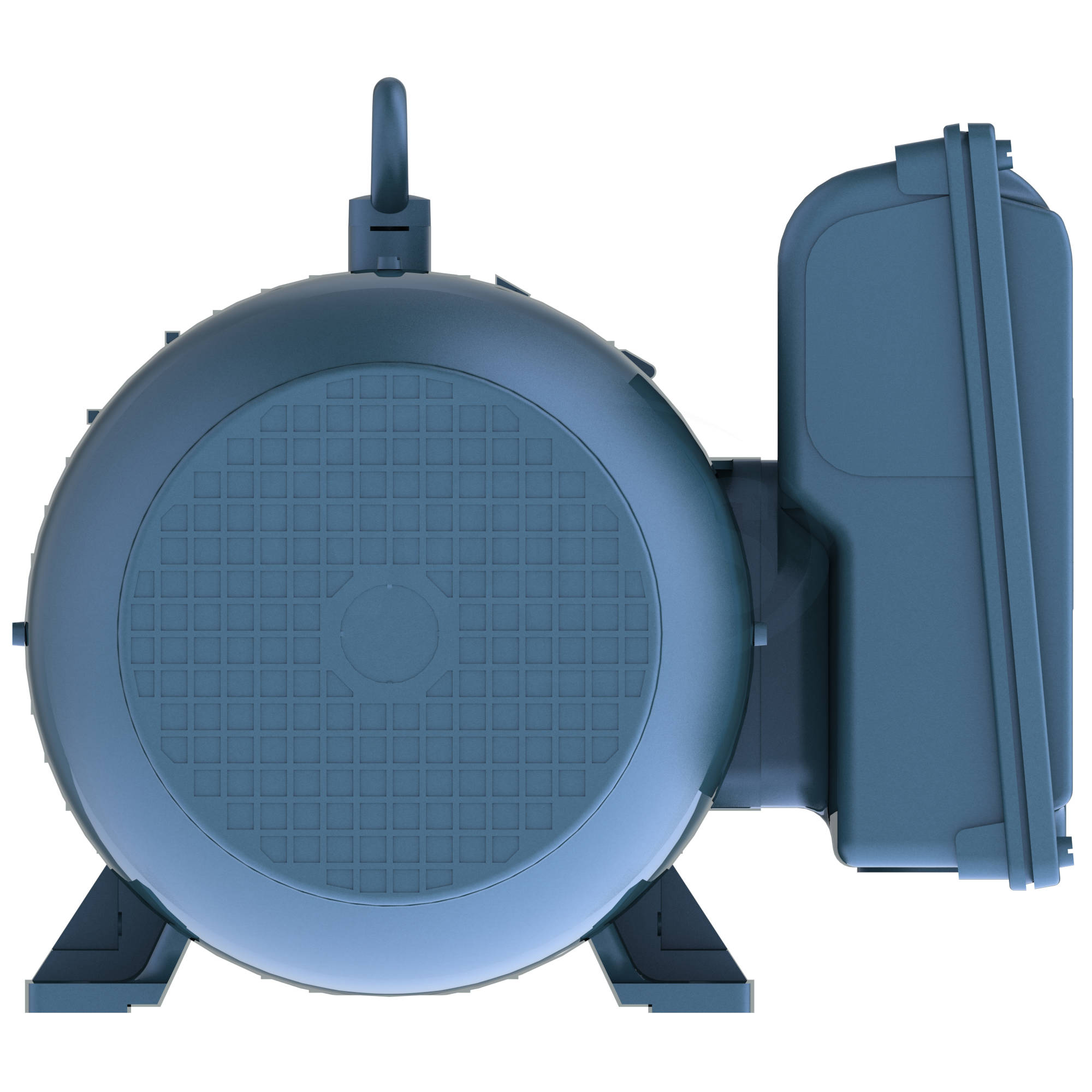

00318ES1E184T-W22 WEG 3HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ES1E184T-W22

Selected accessories will also be added to cart
$777.86 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 208-230/460VAC 60Hz Single Phase, 13876938, Cast Iron Frame, Foot Mount, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4T
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current14.5-13.8/6.90 A
L. R. Amperes112-106/53.1 A
LRC7.7x(Code K)
No load current5.78-6.70/3.35 A
Rated torque9.03 ft.lb
Locked rotor torque290 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.3735 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Approx. weight³103 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
65.074.077.0

Power factor

50%75%100%
0.790.870.90

About this Product

V-Ring Seal



V-Ring Seal to keep liquids and dust out of the motor.





Capacitor



Available with a run capacitor, run and start capacitor or start capacitor.



        Cast Iron Frame



          • FC-200 (EN GJL 200) cast iron frames meet impact
            level IK08 (5J) ensuring superior mechanical strength
            for the most demanding applications.
          • Solid motor feet provide excellent rigidity, allowing
            easier alignment and installation.



        Cooling System



          • The cooling system (fan, non drive endshield and fan cover)
            is designed to minimize noise level and improve thermal efficiency.
          • Steel plate fan cover provides high mechanical strength,
            corrosion resistance and extended lifetime.



        Centrifugal Switch



          • The starting system of W22 single phase motors
            was completely redesigned to improve functionality,
            thus increasing system reliability and lifespan.



Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
3HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182T
Frame
184T
