/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/General Purpose, TEFC, W22/00318ES1E184TC-W22 WEG 3HP Electric Motor, 1800RPM
00318ES1E184TC-W22 WEG 3HP Electric Motor, 1800RPM

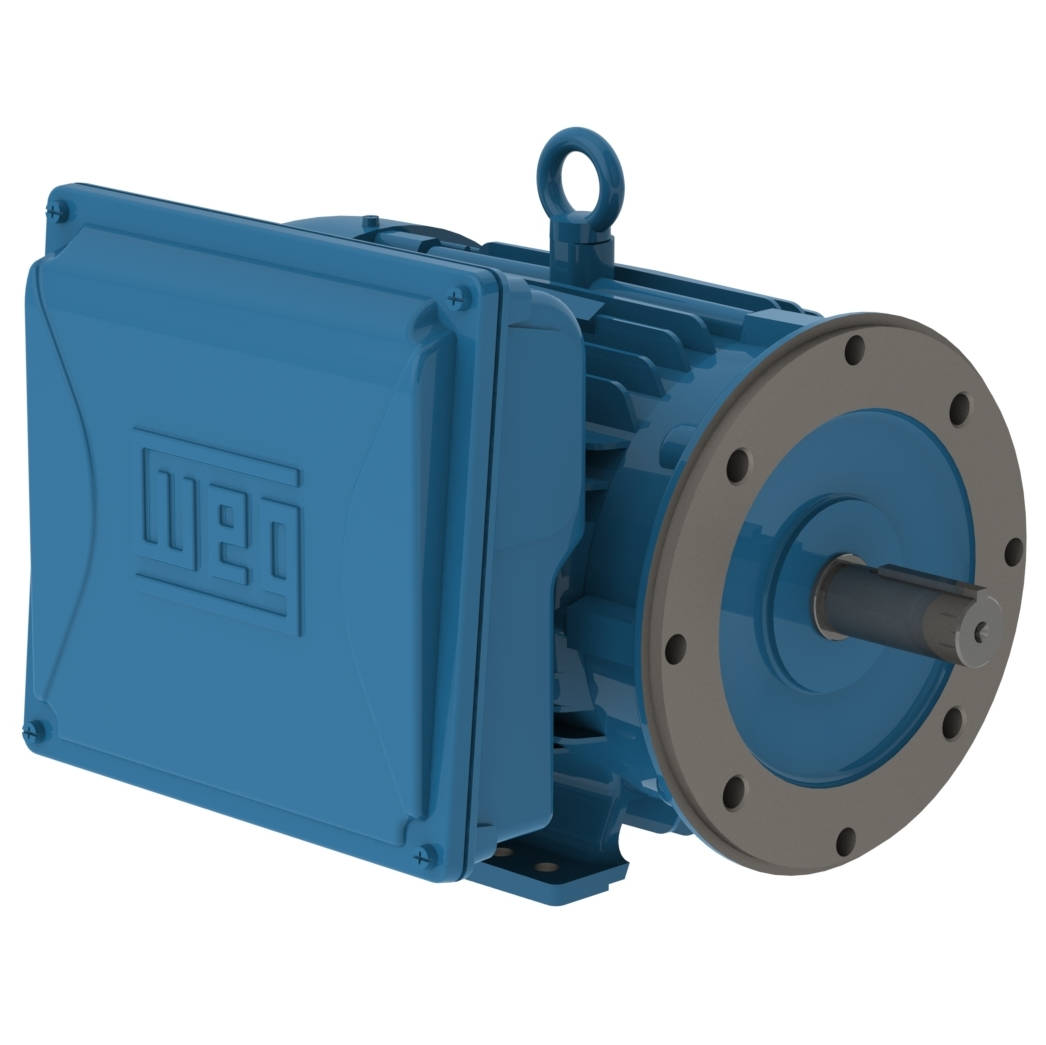

Enlarge Photo

Product ID: 00318ES1E184TC-W22

00318ES1E184TC-W22 WEG 3HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ES1E184TC-W22

Selected accessories will also be added to cart
$812.57 / Each
Quantity:
IC411 - TEFC, IP55, 182TC/184TC Frame, 208-230/460VAC Single Phase, 14174395, Foot Mounted, C-Face, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current14.5-13.8/6.90 A
L. R. Amperes112-106/53.1 A
LRC7.7x(Code K)
No load current5.78-6.70/3.35 A
Rated torque9.03 ft.lb
Locked rotor torque290 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.3735 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Approx. weight³107 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
65.074.077.0

Power factor

50%75%100%
0.790.870.90

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
3HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182TC
Frame
184TC
