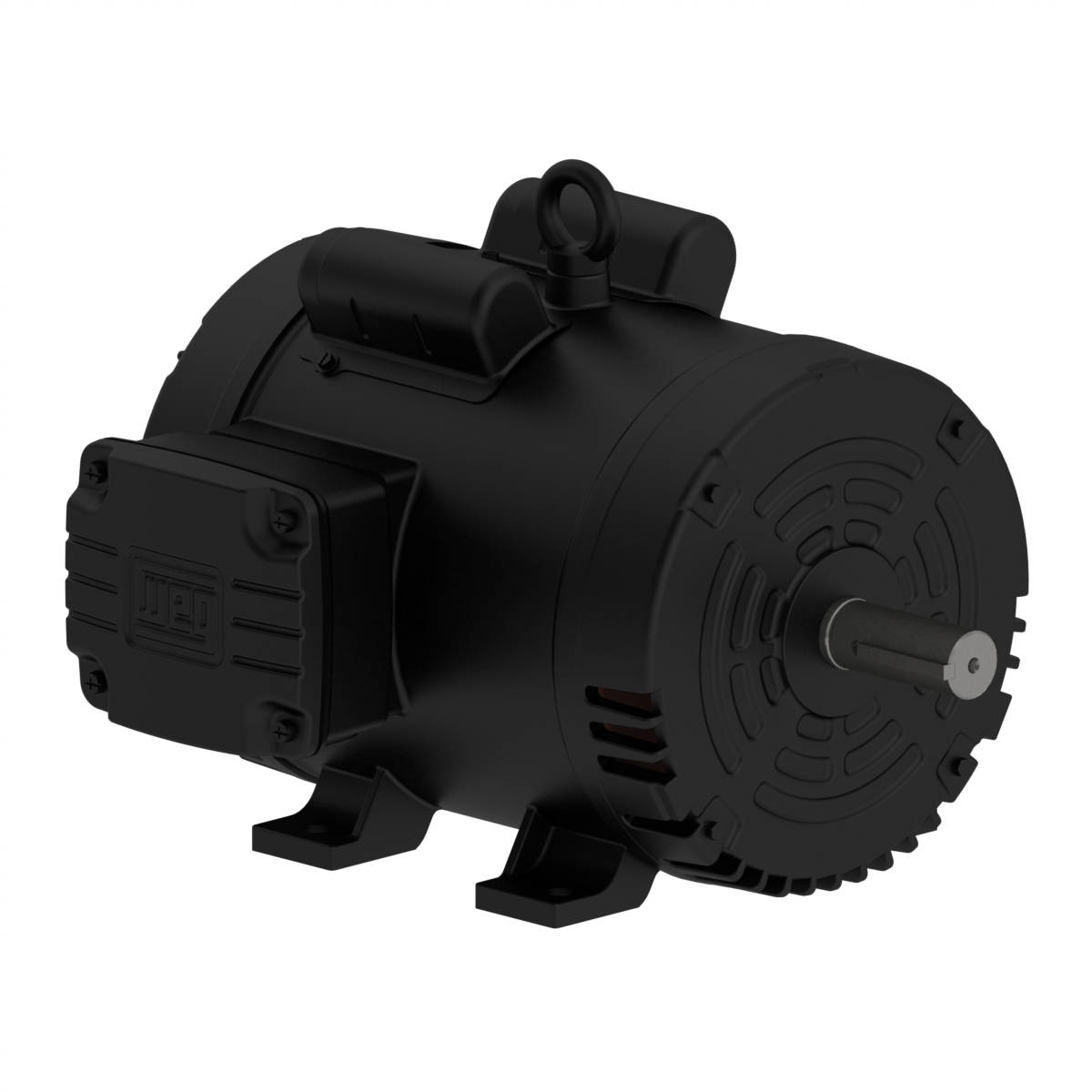

Motor/Control Division

Frame	184T
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	208-230 V
Rated current	18.6-17.5 A
L. R. Amperes	121-114 A
LRC	6.5x(Code K)
No load current	9.92-11.5 A
Rated torque	8.88 ft.lb
Locked rotor torque	210 %
Breakdown torque	200 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.4319 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP22
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	60.0 dB(A)
Approx. weightÂ³	93.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
71.0	74.0	75.0

Power factor

50%	75%	100%
0.56	0.68	0.75

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without

Loading...

Bearing details

	Drive End	Non Drive End
Bearing type	6206 ZZ	6205 ZZ
Sealing	Without Bearing Seal	Without Bearing Seal
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

Foundation loads

Max. traction	Max. compression
66 lb	160 lb

Type

Electric Motor

Input Phase

Single Phase

Speed

1800RPM

Enclosure

ODP

Horsepower

3HP

Frame

184T

Input Voltage

208VAC

Input Voltage

230VAC
