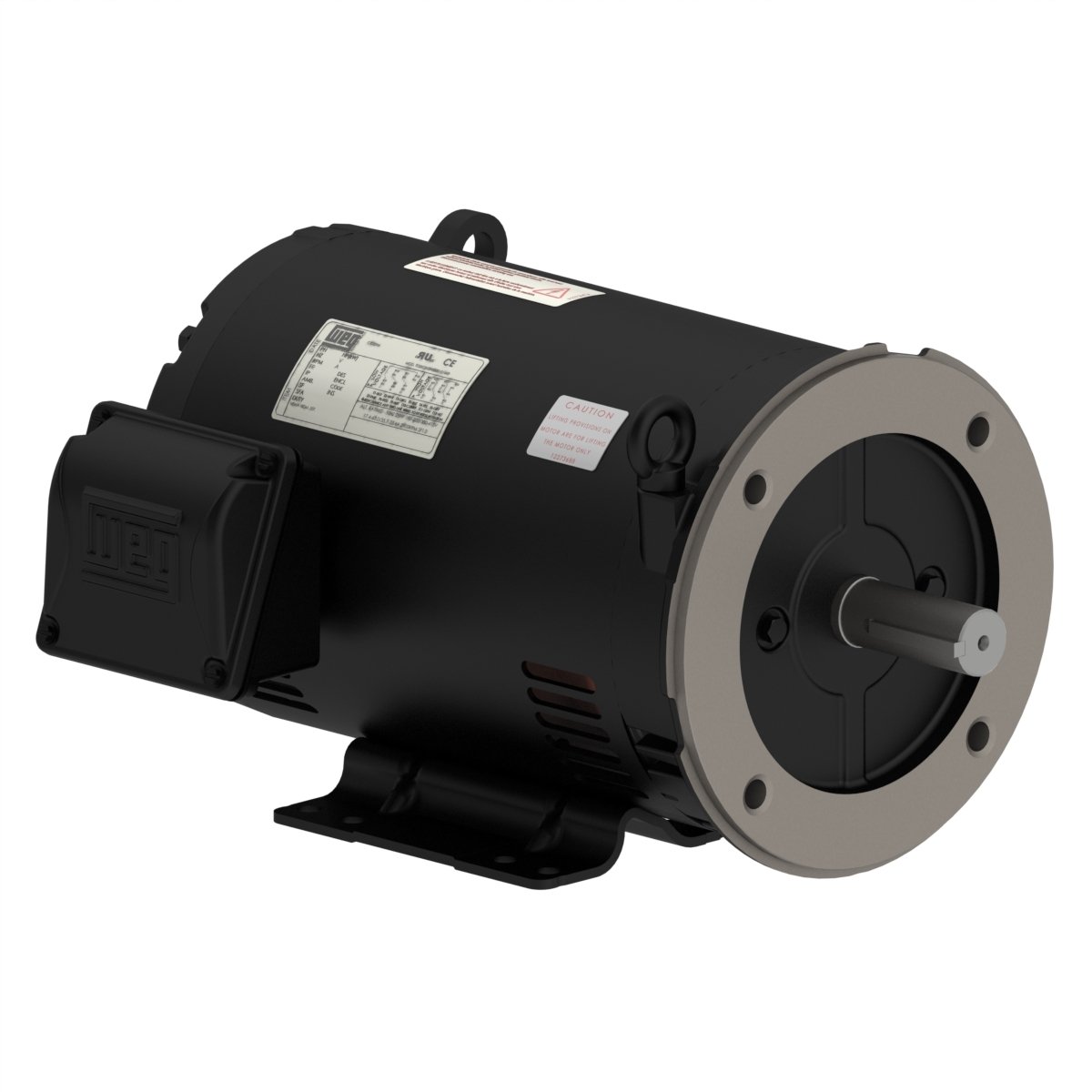

00318OT3H182TC-S WEG 3HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00318OT3H182TC-S

00318OT3H182TC-S WEG 3HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318OT3H182TC-S

Selected accessories will also be added to cart
$500.18 / Each
Quantity:
IC01 - ODP, 182TC/184TC Frame, 575VAC 3-Phase 60Hz, 12674732, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage575 V
Rated current3.09 A
L. R. Amperes25.9 A
LRC8.4x(Code K)
No load current1.66 A
Rated torque8.81 ft.lb
Locked rotor torque220 %
Breakdown torque330 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.3092 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?55.0 dB(A)
Approx. weight?76.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  89.5

Power factor

50%75%100%
0.60  0.73  0.80

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
3HP
Enclosure
ODP
Input Voltage
575VAC
Frame
182TC
Frame
184TC
