/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Footless, C-Face/00318ST3QIER182TC-W22 WEG 3HP Severe Duty Electric Motor, 1800RPM

Product ID: 00318ST3QIER182TC-W2

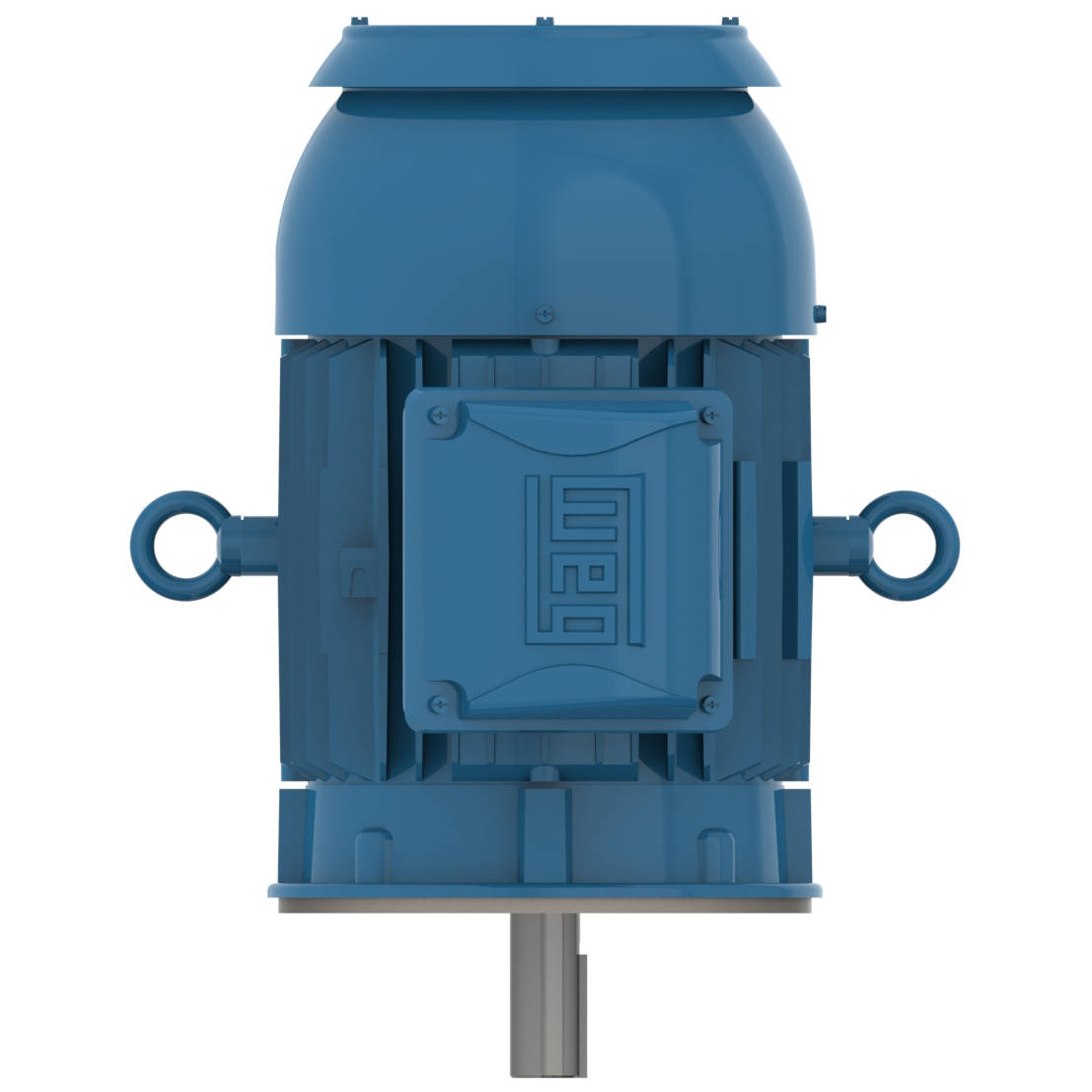

00318ST3QIER182TC-W22 WEG 3HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318ST3QIER182TC-W2

Selected accessories will also be added to cart

$1,180.14 / Each

Quantity:

IC411 - TEFC, IP55, 182TC Frame, 460VAC 60Hz 3 Phase, 12822413, NEMA Premium Efficiency, IEEE 841, Footless, Vertical Mount, C- Face, 1-1/8" Keyed Shaft

Electric Motors

Frame	182TC
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	460 V
Rated current	3.91 A
L. R. Amperes	31.7 A
LRC	8.1x(Code K)
No load current	2.00 A
Rated torque	8.95 ft.lb
Locked rotor torque	220 %
Breakdown torque	330 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.61	0.71	0.79

Frame	182TC
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	4.78 A
L. R. Amperes	30.1 A
LRC	6.3x(Code H)
No load current	2.00 A
Rated torque	10.9 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.68	0.77	0.80

Frame	182TC
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	4.54 A
L. R. Amperes	32.2 A
LRC	7.1x(Code J)
No load current	2.10 A
Rated torque	10.9 ft.lb
Locked rotor torque	220 %
Breakdown torque	290 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.64	0.75	0.80

Frame	182TC
Output	3 HP (2.2 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	4.43 A
L. R. Amperes	33.7 A
LRC	7.6x(Code K)
No load current	2.25 A
Rated torque	10.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	320 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.3401 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	104 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.5	87.5

Power factor

50%	75%	100%
0.61	0.73	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
Fan material	Conductive Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Inpro/Seal
DE bearing Seal	Inpro/Seal
Cable Press Material	Sem
