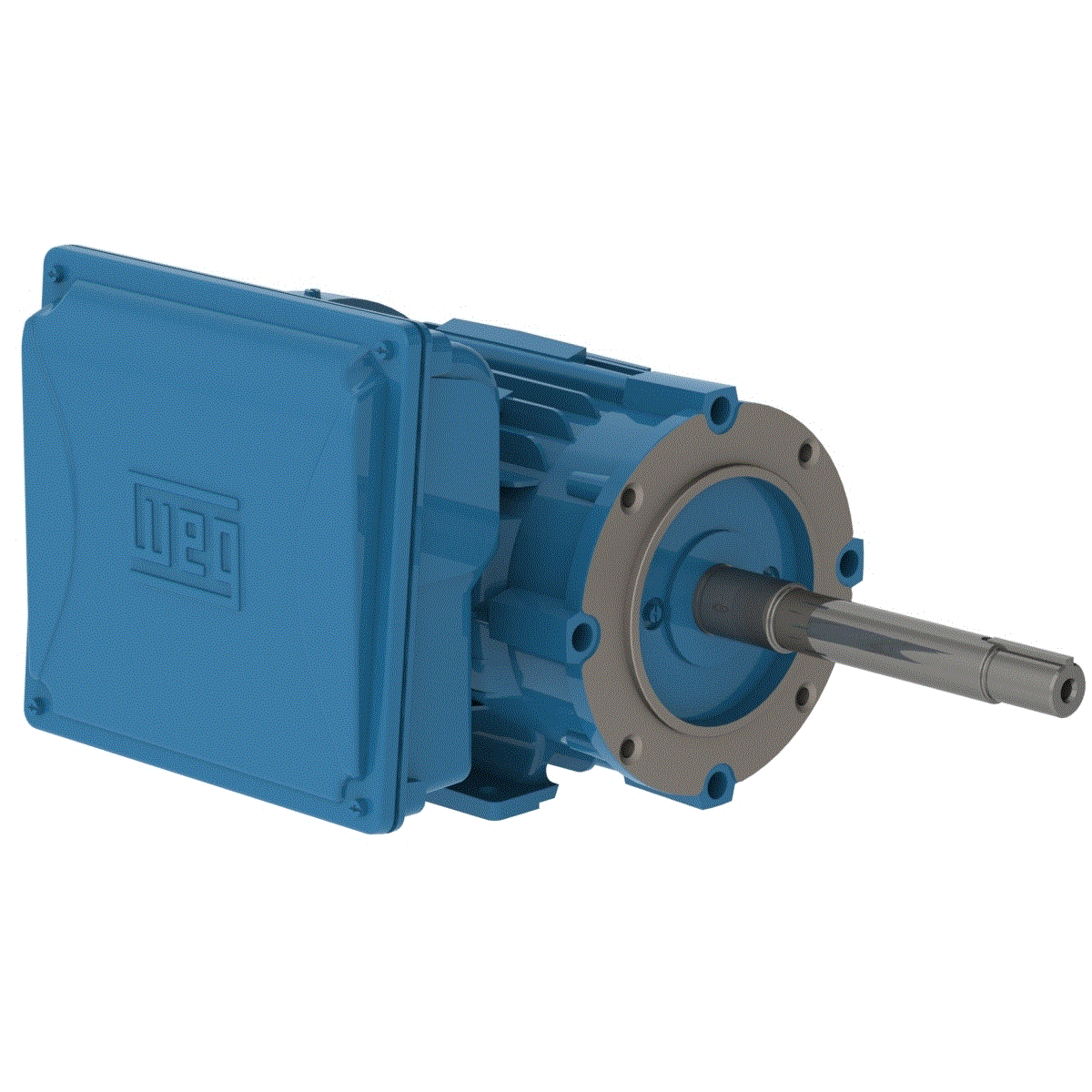

00336ES1E145JP-W22 WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ES1E145JP-W22

00336ES1E145JP-W22 WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ES1E145JP-W22

Selected accessories will also be added to cart
$957.64 / Each
Quantity:
IC411- TEFC, IP55, 143/5JP Frame, 208-230/460VAC, 60Hz, 1 Phase
14183267, Foot-mounted, Cast Iron Frame, 7/8" keyed shaft



Electric Motors







































Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 13.6-12.5/6.25 A
L. R. Amperes 97.9-90.0/45.0 A
LRC 7.2x(Code H)
No load current 2.50-2.90/1.45 A
Rated torque 4.49 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 12s (cold) 7s (hot)



































Moment of inertia (J) 0.0664 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
Approx. weight³ 60.6 lb






(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.




Efficiency















50% 75% 100%

72.5
76.0
78.5



Power factor















50% 75% 100%

0.96
0.97
0.97






Features






































Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Fan material Plastic




Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
3HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
143/5JP
