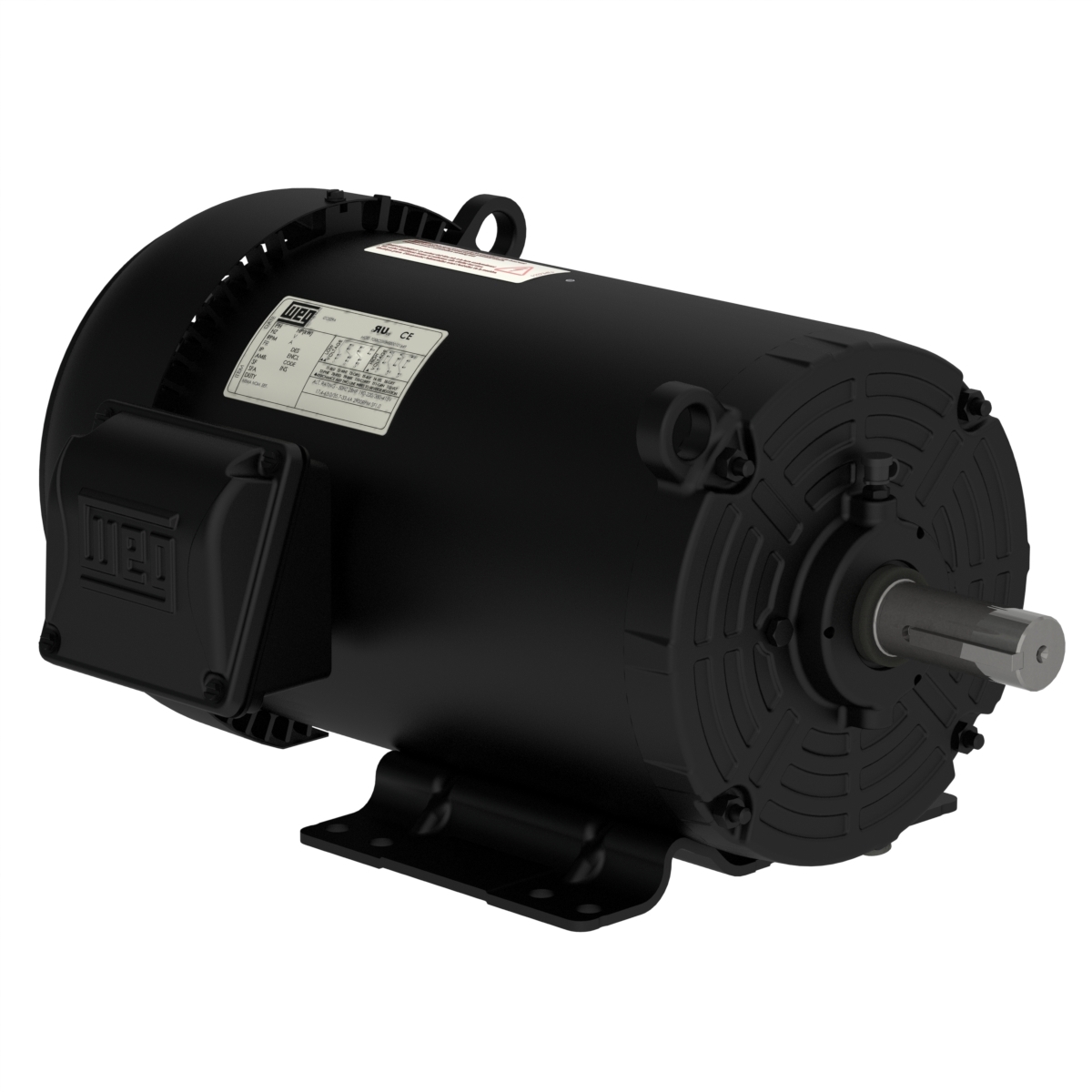

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3515 rpm
Slip	2.36 %
Rated voltage	208-230/460 V
Rated current	8.12-7.34/3.67 A
L. R. Amperes	71.4-64.6/32.3 A
LRC	8.8x(Code K)
No load current	2.78-3.22/1.61 A
Rated torque	4.42 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.1564 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	66.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	86.5

Power factor

50%	75%	100%
0.71	0.82	0.87

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	190/380 V
Rated current	8.70/4.35 A
L. R. Amperes	60.0/30.0 A
LRC	6.9x(Code H)
No load current	3.18/1.59 A
Rated torque	5.39 ft.lb
Locked rotor torque	180 %
Breakdown torque	280 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1564 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	66.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.9	86.5	85.3

Power factor

50%	75%	100%
0.77	0.86	0.90

Frame	182/4T
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	7.68/4.07 A
L. R. Amperes	63.0/33.4 A
LRC	8.2x(Code J)
No load current	3.39/1.80 A
Rated torque	5.34 ft.lb
Locked rotor torque	229 %
Breakdown torque	340 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1564 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	66.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
