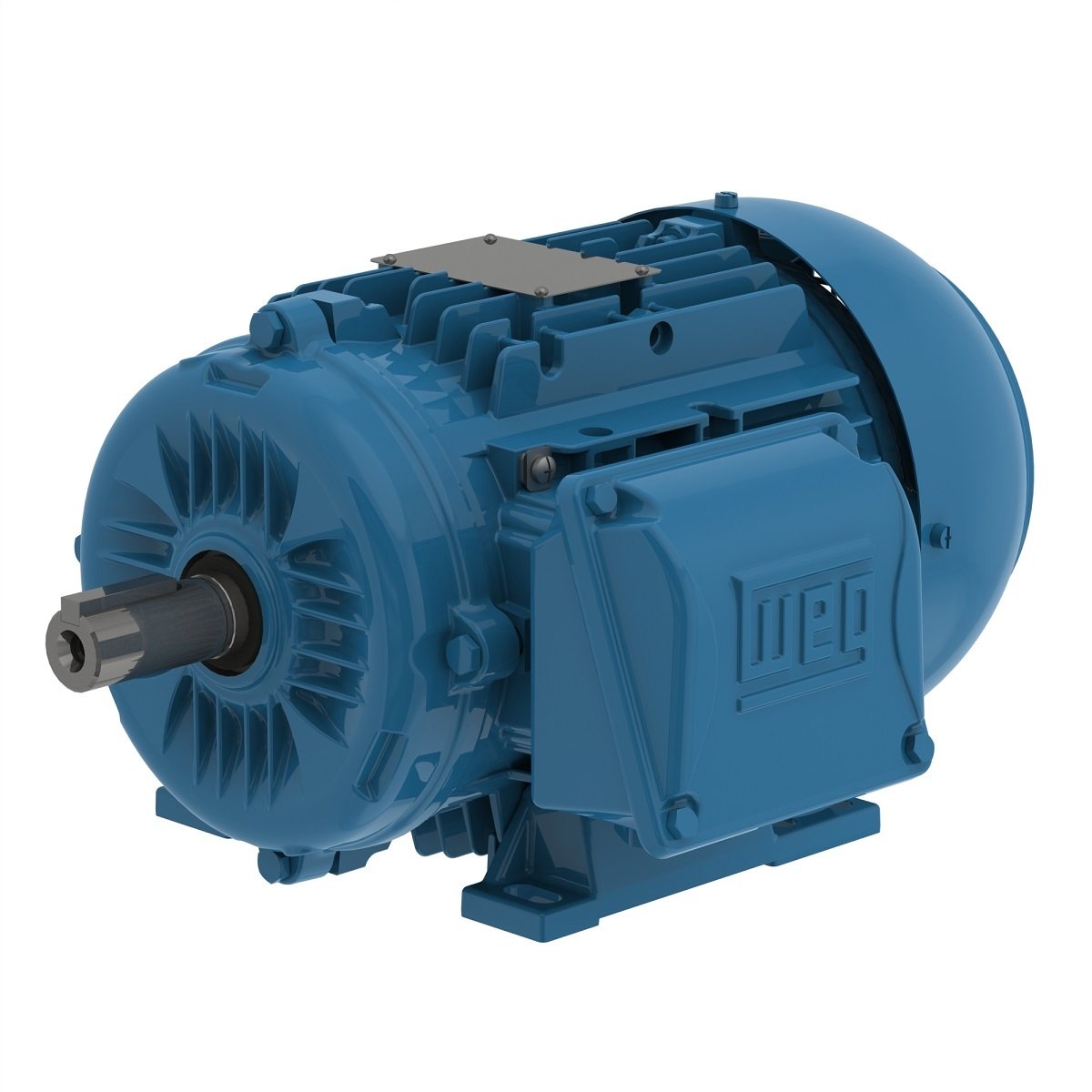

Motor/Control Division

Frame	100L
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	5.95 A
L. R. Amperes	54.1 A
LRC	9.1
No load current	2.30 A
Rated torque	7.12 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1519 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	62.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.0	87.4	87.1

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	100L
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	5.77 A
L. R. Amperes	55.4 A
LRC	9.6
No load current	2.60 A
Rated torque	7.10 ft.lb
Locked rotor torque	340 %
Breakdown torque	340 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1519 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	62.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.3	87.3

Power factor

50%	75%	100%
0.69	0.81	0.86

Frame	100L
Output	4 HP (3 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2925 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	5.68 A
L. R. Amperes	55.7 A
LRC	9.8
No load current	2.80 A
Rated torque	7.08 ft.lb
Locked rotor torque	370 %
Breakdown torque	360 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1519 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	62.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	87.2	87.4

Power factor

50%	75%	100%
0.66	0.78	0.84

Frame	100L
Output	4 HP (3 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	10.0/5.01 A
L. R. Amperes	101/50.6 A
LRC	10.1
No load current	4.70/2.35 A
Rated torque	5.89 ft.lb
Locked rotor torque	380 %
Breakdown torque	500 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.1519 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	71.0 dB(A)
Approx. weightÂ³	62.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	86.5	88.5

Power factor

50%	75%	100%
0.68	0.79	0.85

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
