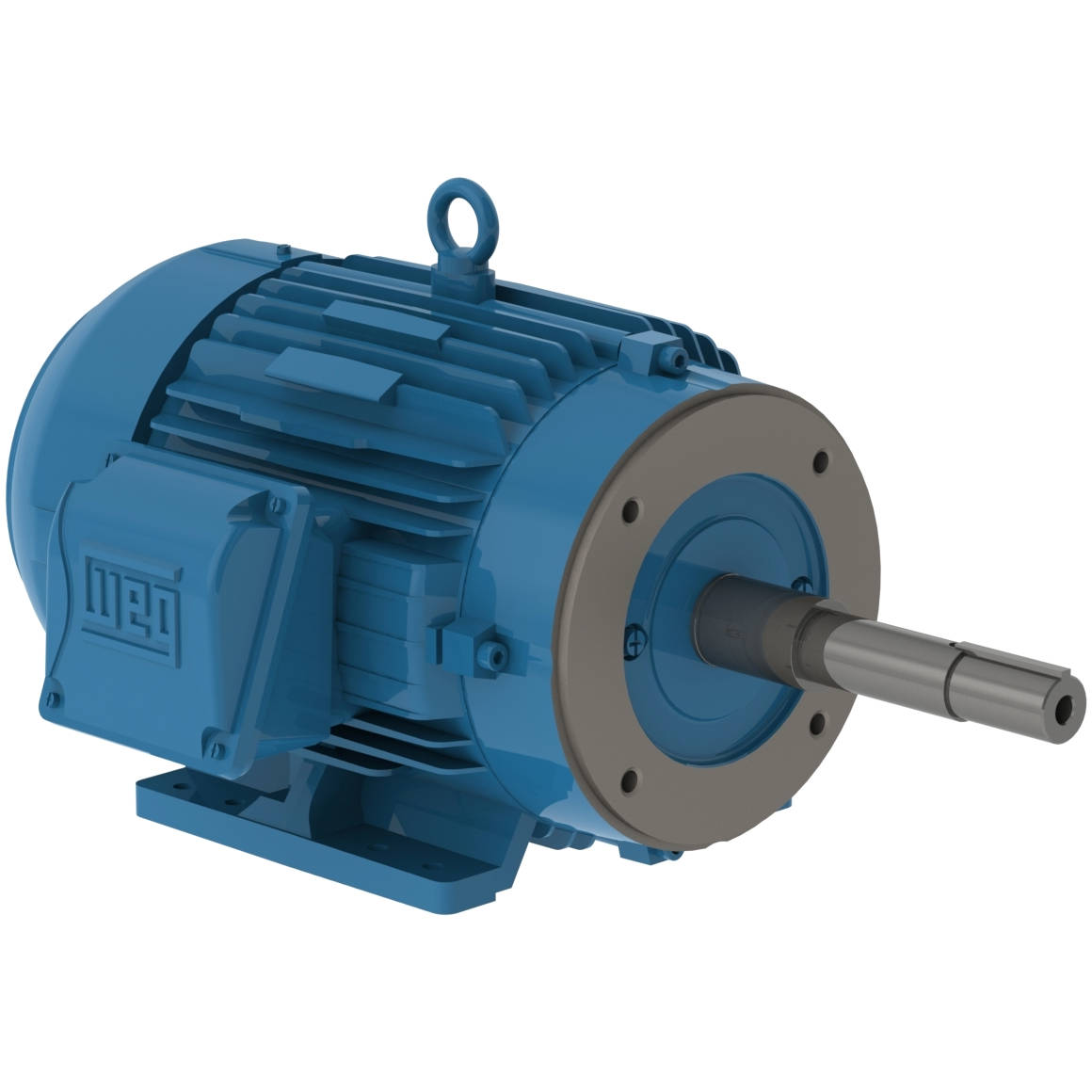

00336ET3H182JP-W22 WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336ET3H182JP-W22

00336ET3H182JP-W22 WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336ET3H182JP-W22

Selected accessories will also be added to cart
$830.37 / Each
Quantity:
IC411 - TEFC, IP55, 182JP/184JP Frame, 575VAC 60Hz 3 Phase, 12705293, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame182/4JP
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage575 V
Rated current2.90 A
L. R. Amperes25.0 A
LRC8.6x(Code K)
No load current1.04 A
Rated torque4.48 ft.lb
Locked rotor torque250 %
Breakdown torque360 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.1889 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?88.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  86.5  86.5

Power factor

50%75%100%
0.75  0.84  0.88

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Pump SealGasket
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
3HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
182JP
Frame
184JP
