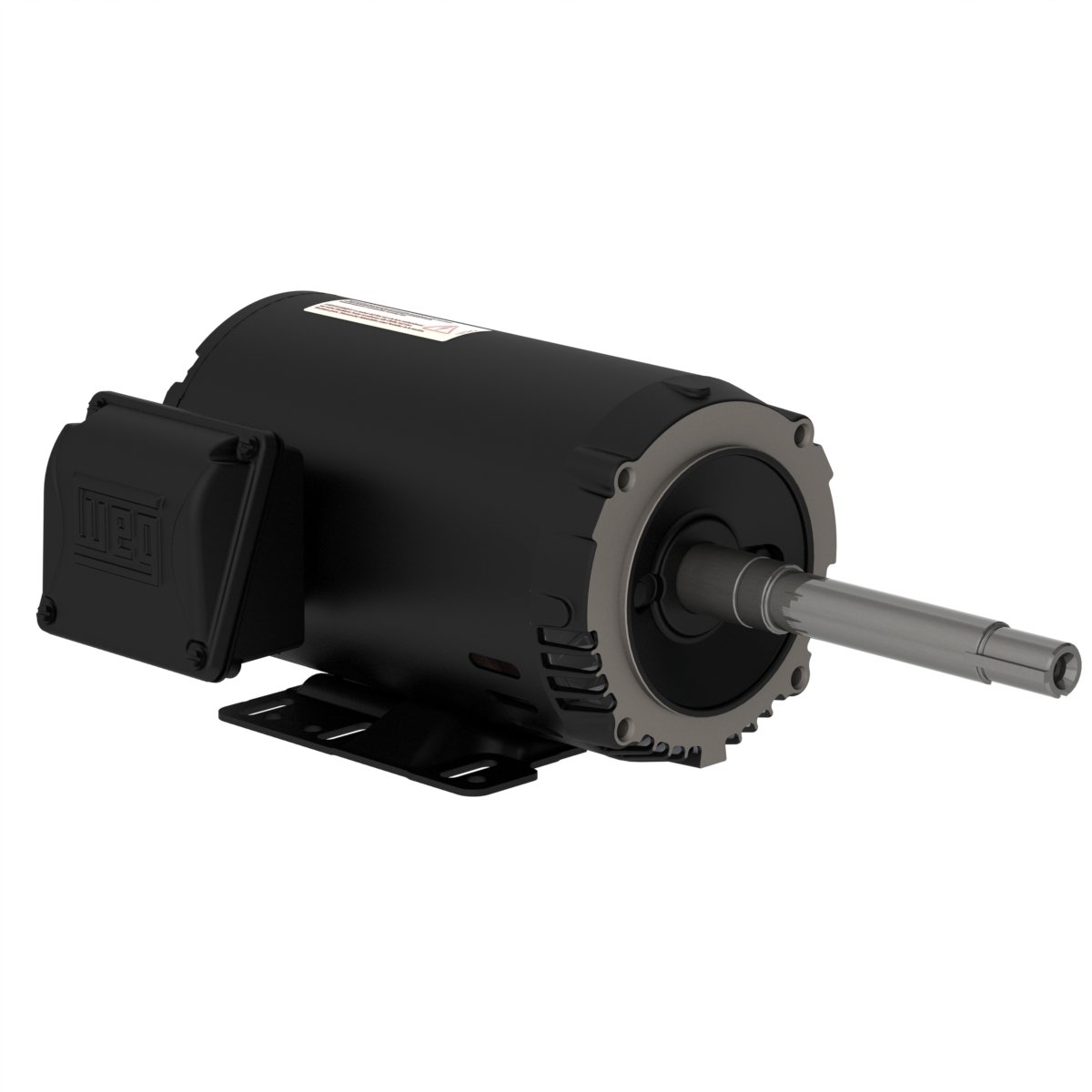

Motor/Control Division

Frame	143/5JP
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	208-230/460 V
Rated current	7.94-7.18/3.59 A
L. R. Amperes	63.5-57.4/28.7 A
LRC	8.0x(Code J)
No load current	2.24-2.60/1.30 A
Rated torque	4.47 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.1279 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	42.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	85.5

Power factor

50%	75%	100%
0.76	0.86	0.90

Frame	143/5JP
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2825 rpm
Slip	5.83 %
Rated voltage	190/380 V
Rated current	8.78/4.39 A
L. R. Amperes	53.6/26.8 A
LRC	6.1x(Code G)
No load current	2.60/1.30 A
Rated torque	5.50 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1279 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	42.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.6	85.0	81.8

Power factor

50%	75%	100%
0.83	0.90	0.93

Frame	143/5JP
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	220/415 V
Rated current	7.56/4.01 A
L. R. Amperes	56.0/29.7 A
LRC	7.4x(Code J)
No load current	2.91/1.54 A
Rated torque	5.43 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.1279 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	42.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.2	85.9	83.9

Power factor

50%	75%	100%
0.76	0.86	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
