/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/JP Close-Coupled Pump/Footless, Vertical/00336OT3E145JPV-S WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00336OT3E145JPV-S

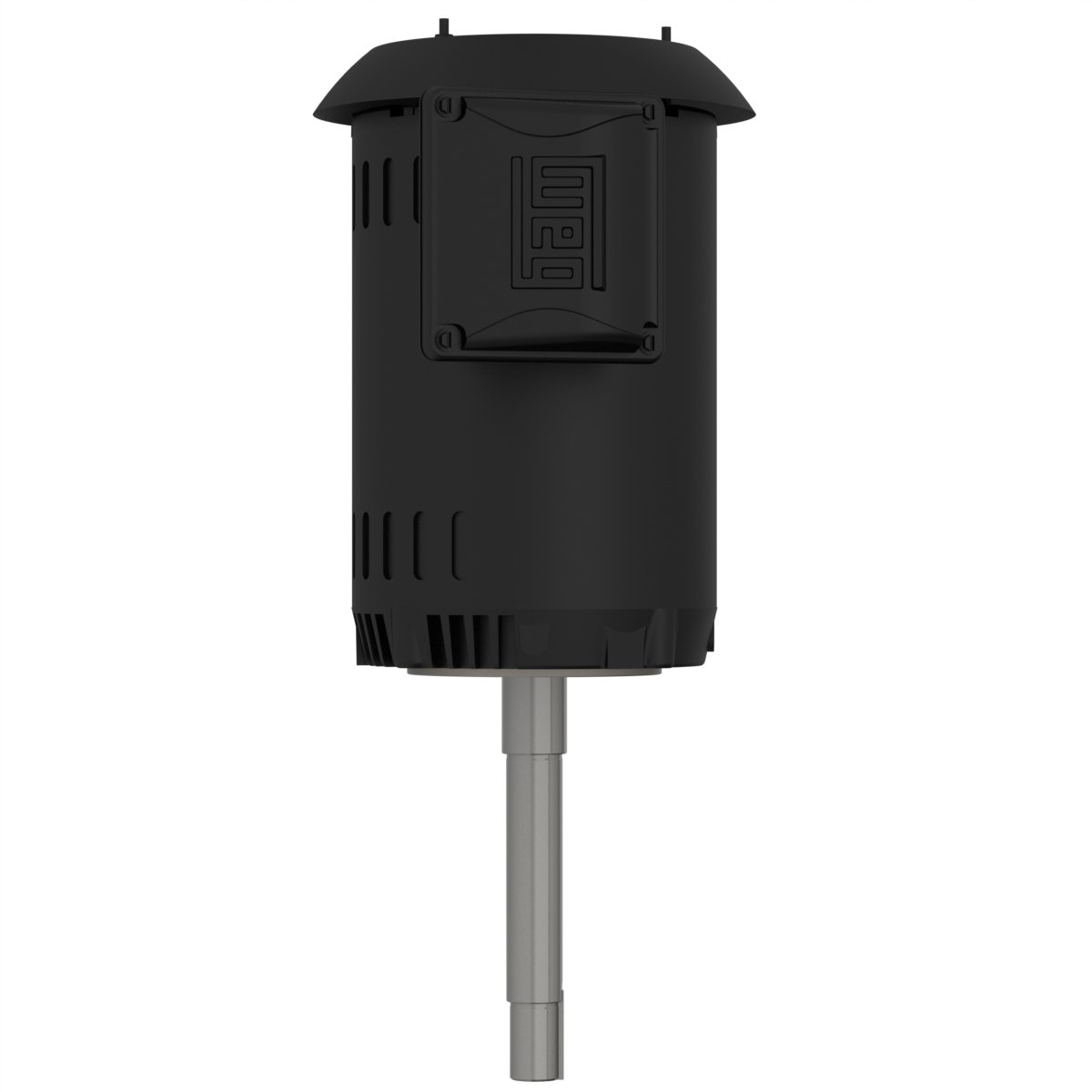

00336OT3E145JPV-S WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OT3E145JPV-S

Selected accessories will also be added to cart

$636.35 / Each

Quantity:

IC01 - ODP, 143JP/145JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 13500718, Footless, Vertical, Rolled Steel, NEMA Premium Efficiency

Frame	143/5JP
Output	3 HP (2.2 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	208-230/460 V
Rated current	7.94-7.18/3.59 A
L. R. Amperes	63.5-57.4/28.7 A
LRC	8.0x(Code J)
No load current	2.24-2.60/1.30 A
Rated torque	4.47 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.1279 sq.ft.lb
Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	39.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
