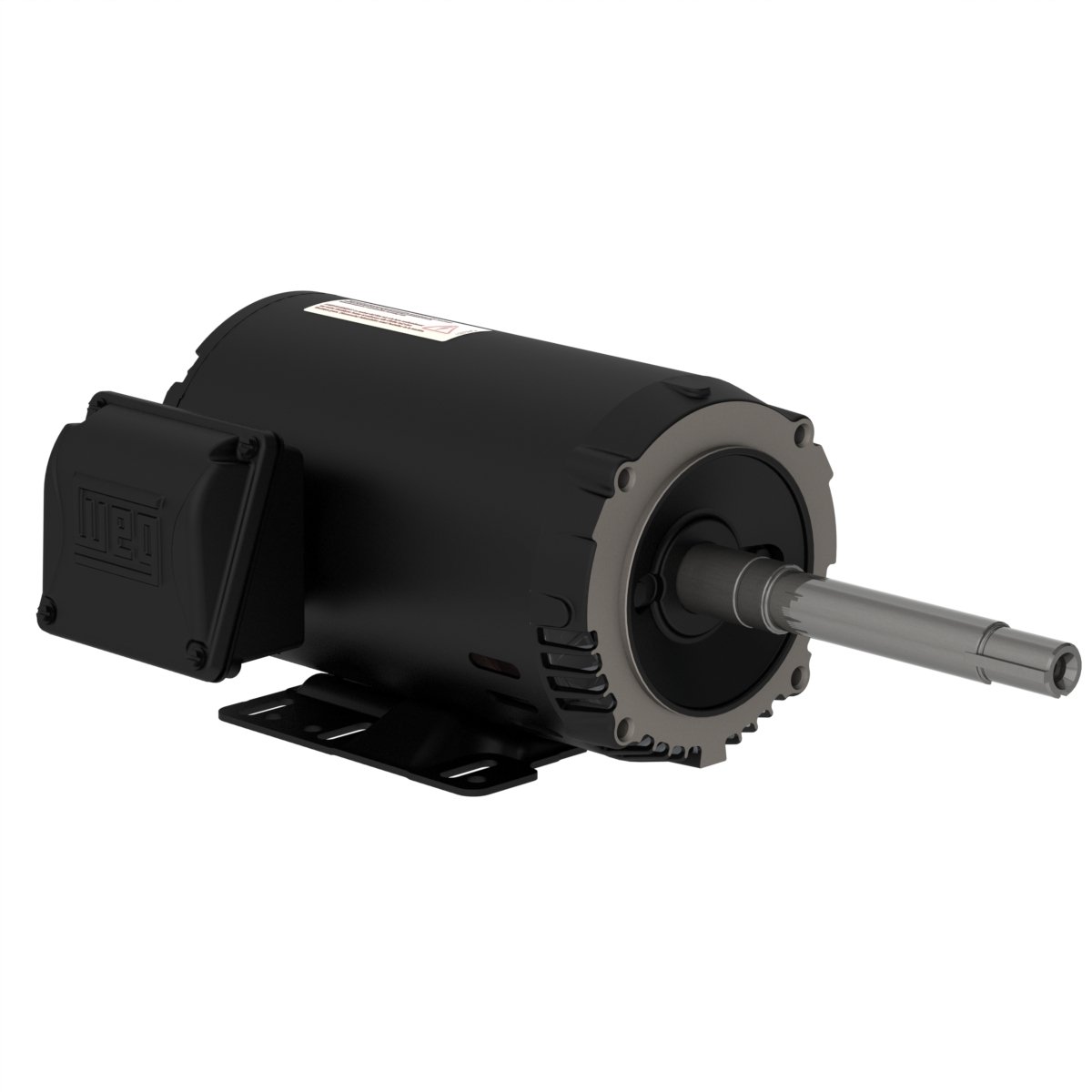

00336OT3V145JP-S WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00336OT3V145JP-S

00336OT3V145JP-S WEG 3HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00336OT3V145JP-S

Selected accessories will also be added to cart
$587.40 / Each
Quantity:
IC01 - ODP, 143JP/145JP Frame, 200/400VAC 3-Phase 60Hz, 13503343, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame143/5JP
Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3480 rpm
Slip3.33 %
Rated voltage200/400 V
Rated current8.26/4.13 A
L. R. Amperes66.1/33.0 A
LRC8.0x(Code J)
No load current2.99/1.49 A
Rated torque4.47 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.1279 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?39.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.5  85.5

Power factor

50%75%100%
0.76  0.86  0.90

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
3HP
Enclosure
ODP
Input Voltage
200VAC
Input Voltage
400VAC
Frame
143JP
Frame
145JP
