/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Farm Duty/Grain Dryer/00456AP3EGD182Z-S WEG 3/4.5HP Grain Dryer Electric Motor, 3600RPM

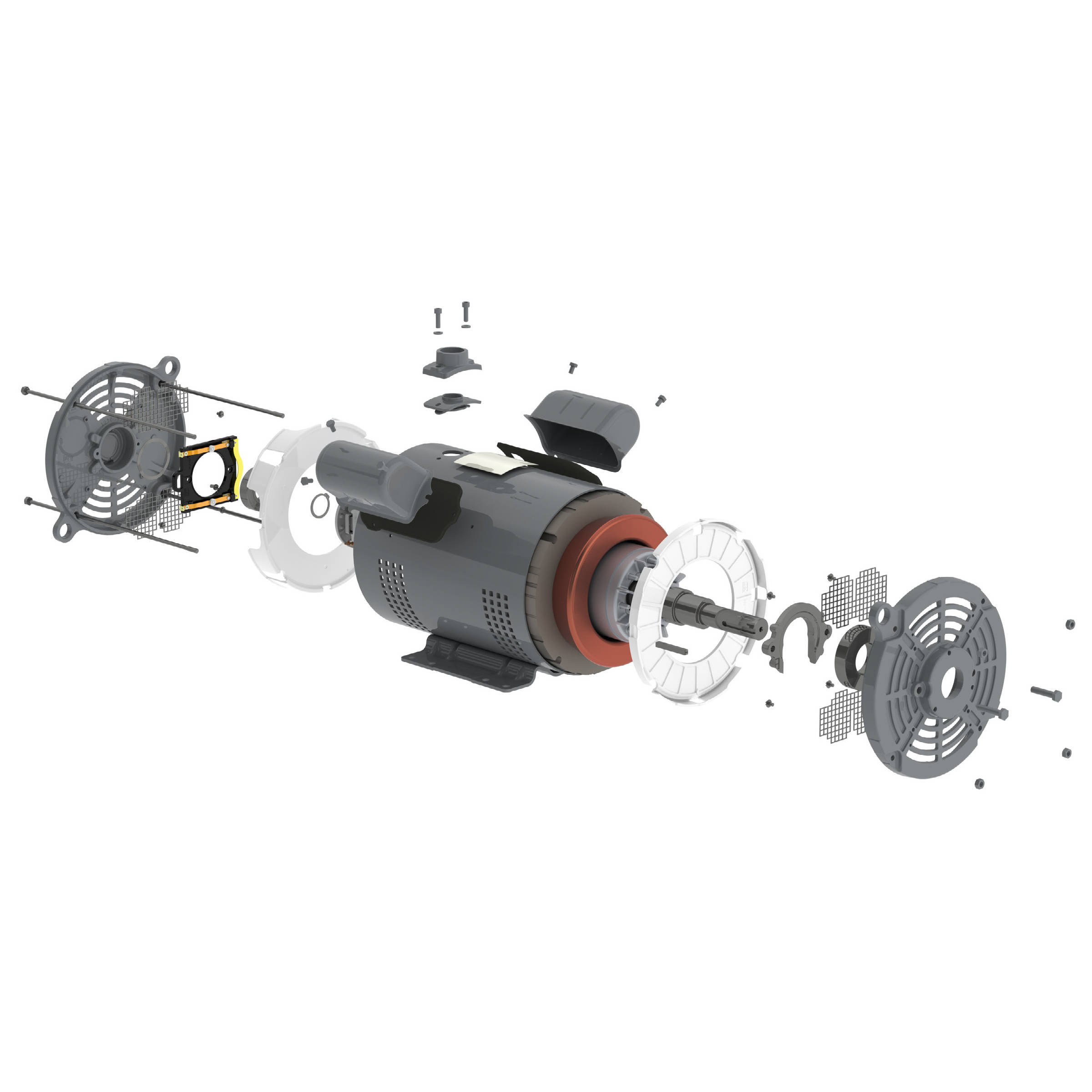

Click Image to Expand

Product ID: 00456AP3EGD182Z-S

00456AP3EGD182Z-S WEG 3/4.5HP Grain Dryer Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00456AP3EGD182Z-S

Selected accessories will also be added to cart
$736.03 / Each
Quantity:
3600RPM, RS-Epact, 182Z/184Z Frame, 208-230/460VAC 60Hz 3-Phase, IC410-TEAO, 13237783, Foot Mounted, Rolled Steel, 7/8" Shaft

Electric Motors

Output3 HP (2.2 kW)
Number of Poles2
Frequency60 Hz
Rated speed3540 rpm
Slip1.67 %
Rated voltage208-230/460 V
Rated current9.45-8.54/4.27 A
L. R. Amperes104-93.9/47.0 A
LRC11.0x(Code N)
No load current0.000-5.70/2.85 A
Rated torque4.39 ft.lb
Locked rotor torque380 %
Breakdown torque550 %
Locked rotor time18s (cold) 10s (hot)
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to 40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-3
Rotation?CCW
Approx. weight?52.4 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
79.8  84.2  86.2

Power factor

50%75%100%
0.53  0.66  0.75

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6206 ZZ  6205 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Grain Dryer
Frame
182Z
Frame
184Z
Horsepower
3HP
Horsepower
4.5HP
