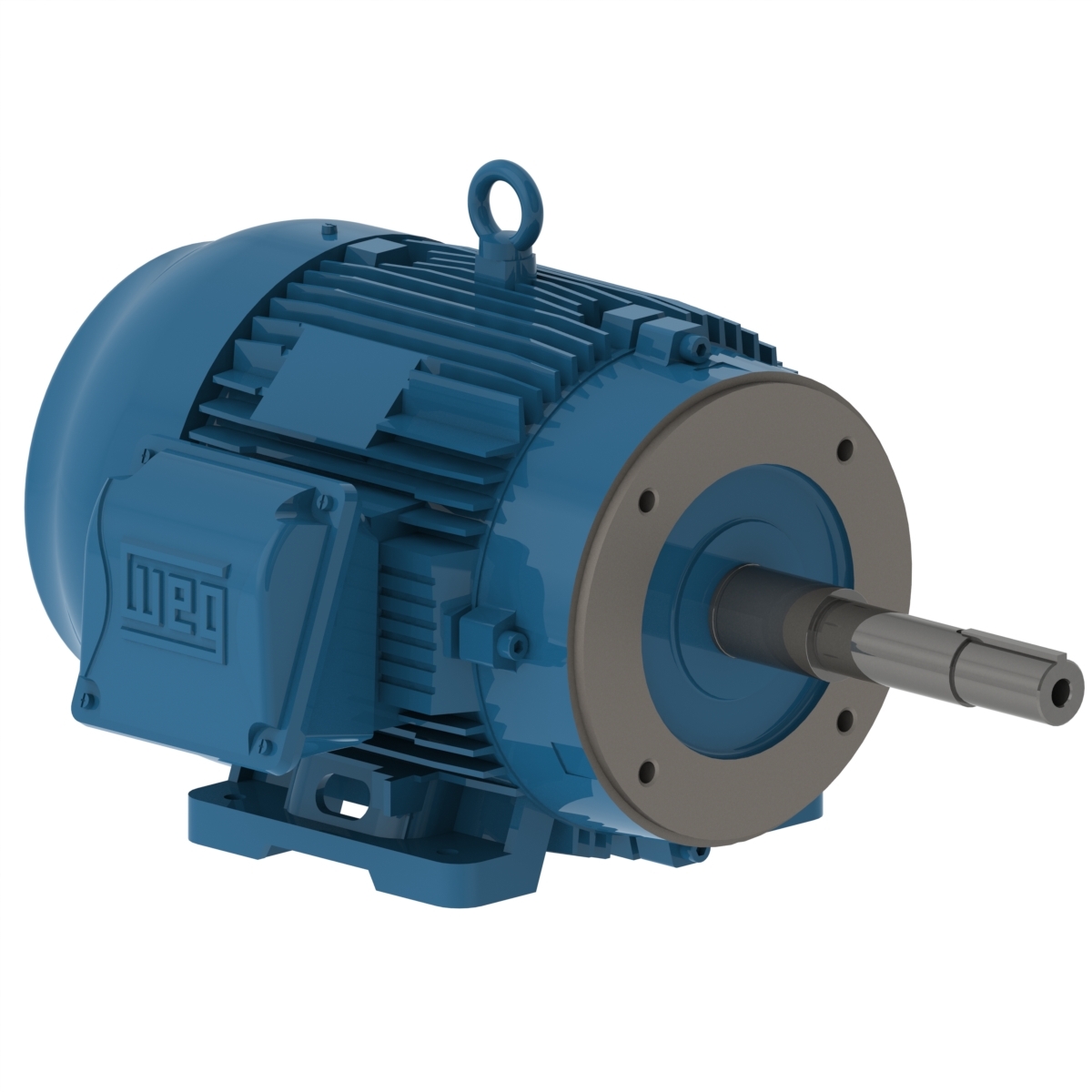

00512ET3E215JP-W22 WEG 5HP JP Close Coupled Pump Electric Motor, 1200 RPM
Enlarge Photo

Product ID: 00512ET3E215JP-W22

00512ET3E215JP-W22 WEG 5HP JP Close Coupled Pump Electric Motor, 1200 RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512ET3E215JP-W22

Selected accessories will also be added to cart
$1,350.75 / Each
Quantity:
IC411 - TEFC, IP55, 213JP/215JP Frame, 230/460/380VAC 60Hz 3 Phase, 12325222, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 213/5JP
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 13.7/6.83 A
L. R. Amperes 92.9/46.4 A
LRC 6.8x(Code J)
No load current 6.90/3.45 A
Rated torque 22.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 102s (cold) 57s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 180 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.58  0.70  0.76
Frame 213/5JP
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 8.10 A
L. R. Amperes 44.5 A
LRC 5.5x(Code G)
No load current 3.41 A
Rated torque 27.4 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 180 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  86.8

Power factor

50% 75% 100%
0.65  0.76  0.80
Frame 213/5JP
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 7.82 A
L. R. Amperes 47.7 A
LRC 6.1x(Code H)
No load current 3.68 A
Rated torque 27.2 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 180 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  87.5

Power factor

50% 75% 100%
0.61  0.73  0.78
Frame 213/5JP
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 7.55 A
L. R. Amperes 49.1 A
LRC 6.5x(Code H)
No load current 3.90 A
Rated torque 27.1 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 180 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  88.5

Power factor

50% 75% 100%
0.58  0.71  0.77

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6309 Z C3  6207 ZZ
Sealing V'Ring  V'Ring
Lubrication interval 20000 h  40000 h
Lubricant amount 13 g  0 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
292 lb  471 lb
