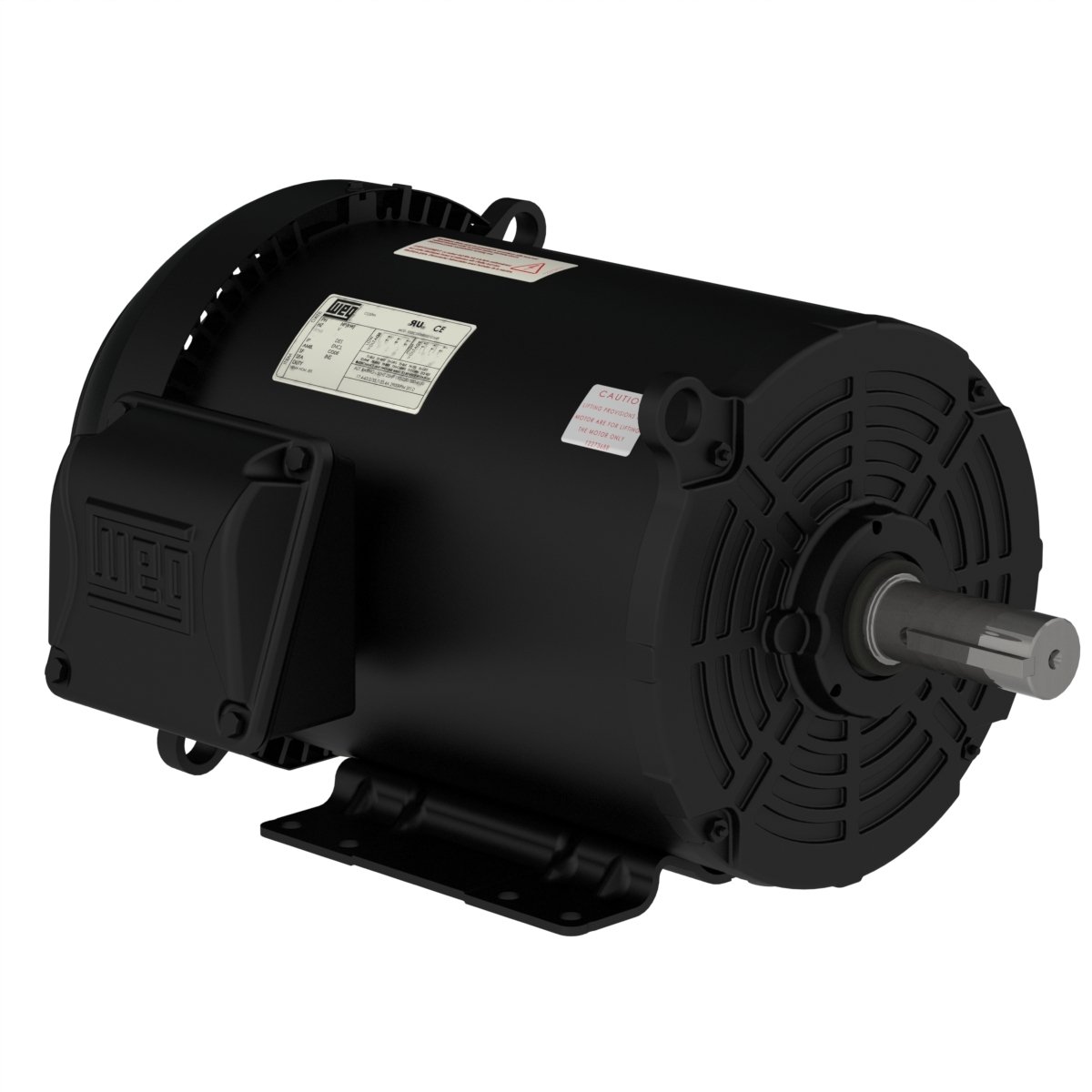

00512ET3H215T-S WEG 5HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00512ET3H215T-S

00512ET3H215T-S WEG 5HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00512ET3H215T-S

Selected accessories will also be added to cart
$1,032.40 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 3-Phase 60Hz, 12675417, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output5 HP (3.7 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage575 V
Rated current5.39 A
L. R. Amperes32.4 A
LRC6.0x(Code H)
No load current2.73 A
Rated torque22.0 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)1.26 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?55.0 dB(A)
Approx. weight?143 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  89.5

Power factor

50%75%100%
0.59  0.71  0.77

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
5HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
213T
Frame
215T
