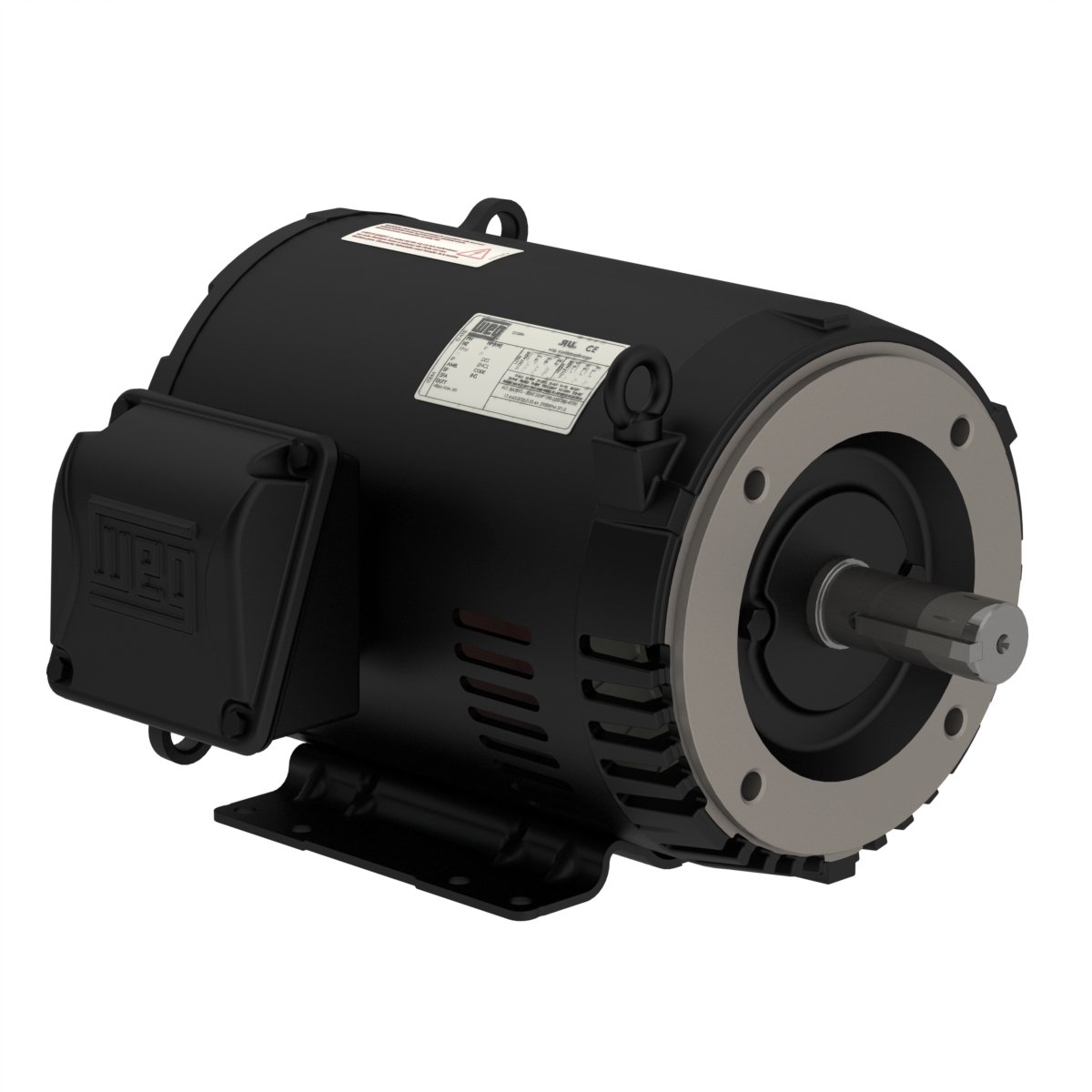

Motor/Control Division

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	14.9-13.5/6.74 A
L. R. Amperes	88.0-79.5/39.8 A
LRC	5.9x(Code H)
No load current	6.12-7.10/3.55 A
Rated torque	22.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.58	0.70	0.77

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	190/380 V
Rated current	16.3/8.16 A
L. R. Amperes	73.4/36.7 A
LRC	4.5x(Code E)
No load current	7.00/3.50 A
Rated torque	27.0 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	87.2	85.1

Power factor

50%	75%	100%
0.66	0.76	0.81

Frame	213/5TC
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	14.6/7.74 A
L. R. Amperes	78.8/41.8 A
LRC	5.4x(Code G)
No load current	7.77/4.12 A
Rated torque	26.7 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.08 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.3	86.4

Power factor

50%	75%	100%
0.58	0.71	0.77

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
