Motor/Control Division

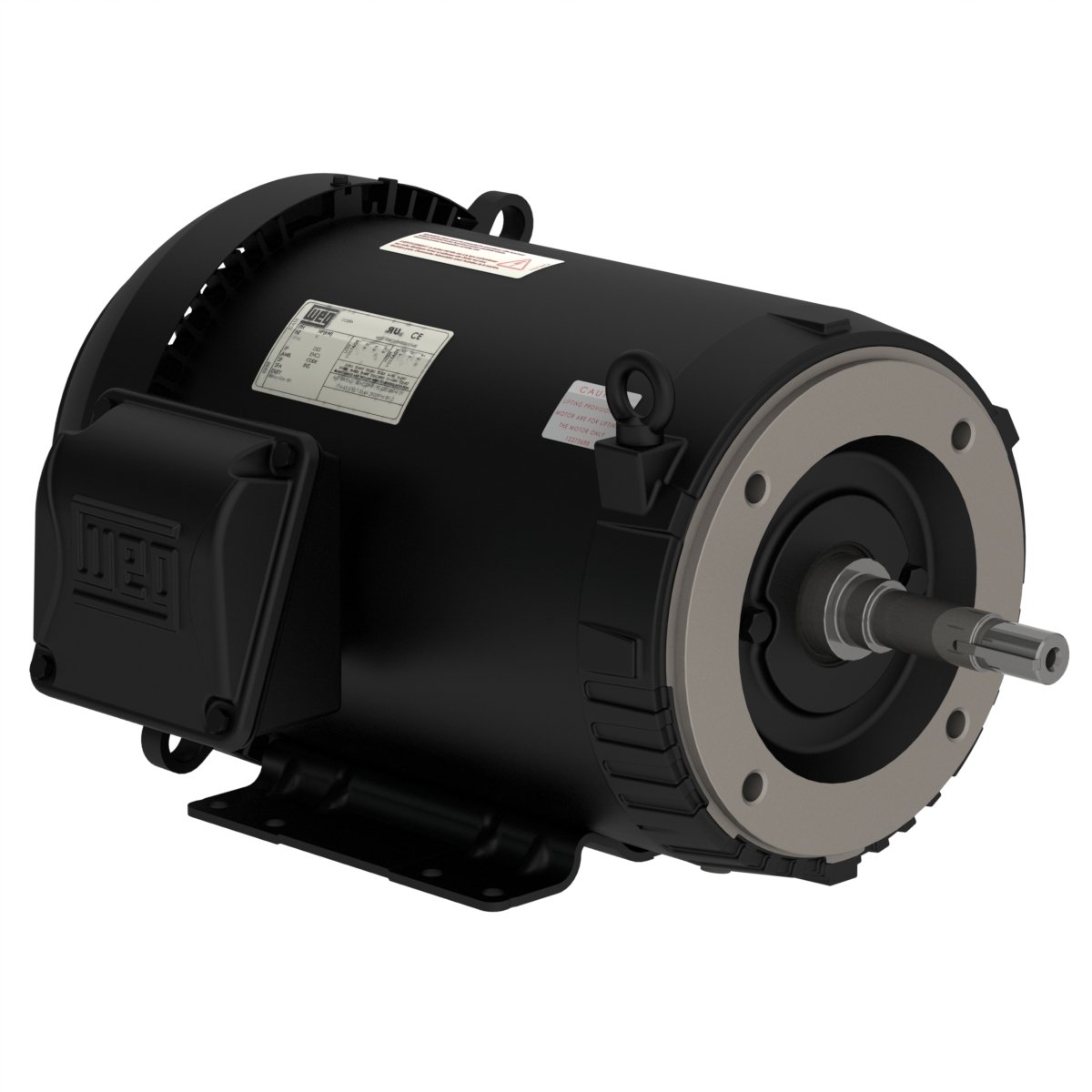

Frame	213/5JM
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	14.9-13.5/6.74 A
L. R. Amperes	89.5-80.9/40.4 A
LRC	6.0x(Code H)
No load current	5.89-6.84/3.42 A
Rated torque	22.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.59	0.71	0.77

Frame	213/5JM
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	190/380 V
Rated current	16.3/8.13 A
L. R. Amperes	74.8/37.4 A
LRC	4.6x(Code E)
No load current	6.75/3.38 A
Rated torque	27.0 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.8	87.4	85.4

Power factor

50%	75%	100%
0.66	0.77	0.81

Frame	213/5JM
Output	5 HP (3.7 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	220/415 V
Rated current	14.3/7.60 A
L. R. Amperes	80.3/42.6 A
LRC	5.6x(Code G)
No load current	7.29/3.86 A
Rated torque	26.8 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	154 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.3	87.9	86.8

Power factor

50%	75%	100%
0.59	0.72	0.78

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.377"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
