00518ET3EPM182/4Y-W22 WEG 5HP Pad Mount Electric Motor, 1800RPM

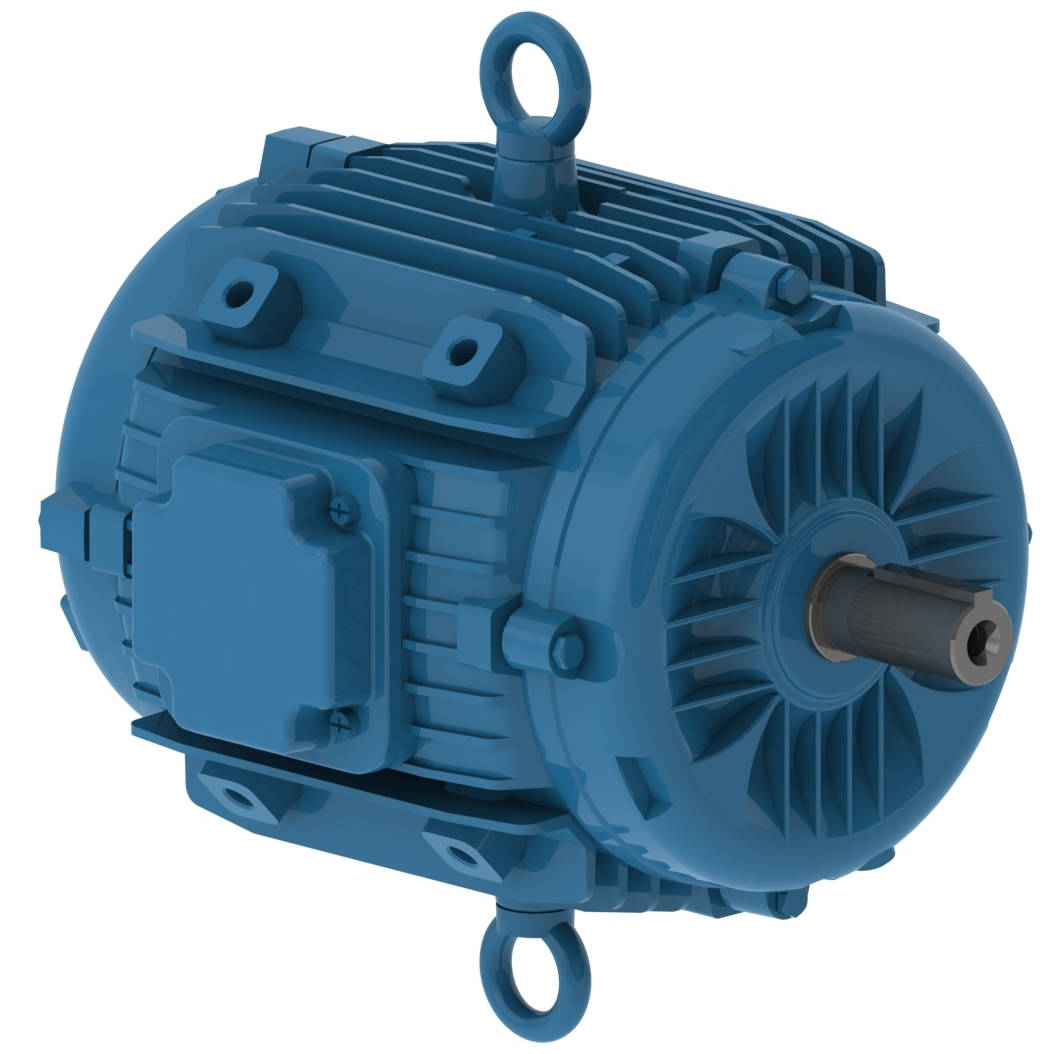

Enlarge Photo

Product ID: 00518ET3EPM182/4Y-W2

00518ET3EPM182/4Y-W22 WEG 5HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518ET3EPM182/4Y-W22

Selected accessories will also be added to cart
$641.25 / Each
Quantity:
IC410 - TEAO, IP55, 184YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13629721, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame 184YZ
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 14.3-12.9/6.45 A
L. R. Amperes 107-96.7/48.4 A
LRC 7.5x(Code J)
No load current 0.000-6.40/3.20 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 94.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.62  0.74  0.80

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector

Bearing details

  Drive End Non Drive End
Bearing type 6207 ZZ   6206 ZZ
Sealing V'Ring  V'Ring
Lubrication interval 0 h  0 h
Lubricant amount 0 g  0 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
258 lb  353 lb
